£5,376.05
excl. VAT
£6,451.26 incl. VAT
£6,451.26
incl. VAT
£5,376.05 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Ballast air injection system | Yes |
|---|---|
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Diameter of hose connection | 100 mm |
| Drive type | PTO 1000 rpm without gearbox |
| Includes | Pumps are delivered without oil (art. BP5070), Pumps are supplied without cooling radiator |
| Long description | Water cooler highly recommended for inclusion in cooling system., The water-cooled BPS pump is built to run continuously for a long time. This makes it ideal for e.g. large slurry tanks with injection system, vacuum trucks and industrial applications. The KPS pump is the ideal solution for professional users and contractors. |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 15270 l/min |
| Power requirement for max. vacuum | 22 kW |
| Product details | Item number breakdown:, KPS = Model, B = BALLAST system, air injection, 490, 550, 670 = Series, D = Direct driven, 1000 rpm, M = Drive with gearbox, 540 rpm, P = Pulley driven, H = Hydraulic pump driven, L = Rotation counter clockwise, R = Rotation clockwise, A = Automatic lubrication, 100 = Ø hose connection, 100mm, The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise. |
| Pros | Liquid cooled housing with integrated water pump, Extra air cooling (BALLAST air injection system), Comes standard with heat-resistant "Long Life" blades, Automatic lubrication, The pump is suitable for continuous operation in both vacuum and pressure modes, Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards, Easy blade wear check through inspection hole with wear indication mark, A test report by serial number is delivered with each pump |
| Rotation direction | Counter-clockwise (CCW) |
| Shaft diameter | 1-3/8 Inch |
| Unit | Each |
| Vane type | Long life |
| Weight | 216 kg |
Compatible accessories
Parts and components that work with this product.
1502C12
Battioni Pagani Radiator+ventilator 12 V 1502C12
£1,628.66 excl.
£1,954.39 incl.
1502C24
Battioni Pagani Radiator+ventilator 24 V 1502C24
£1,541.37 excl.
£1,849.64 incl.
0155513
MZ Vacuum relief valve 1 1/2" 0155513
£27.03 excl.
£32.44 incl.
0250013
MZ Safety Valve 2 1/2" 0250013
£86.18 excl.
£103.42 incl.
2107E
Battioni Pagani Hydraulic switching set BALLAST 2107E
£301.18 excl.
£361.42 incl.
213E
Battioni Pagani Syphon 10.000-18.000 rpm B.P 213E
£946.74 excl.
£1,136.09 incl.
217E
Battioni Pagani Overflow valve 217E
£542.75 excl.
£651.30 incl.
217G
Battioni Pagani Overflow valve B.P 217G
£633.58 excl.
£760.30 incl.
400111
Battioni Pagani Filter-silencer 14.000 l/min 400111
£768.31 excl.
£921.97 incl.
40027
Battioni Pagani Air pre-cleaner 40027
£186.87 excl.
£224.24 incl.
4060505057
Battioni Pagani Manifold filter cartridge 4060505057
£120.56 excl.
£144.67 incl.
BP5070
Battioni Pagani Vacuum pump oil, 5l, mineral, by BP5070
£74.06 excl.
£88.87 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 274000 g |

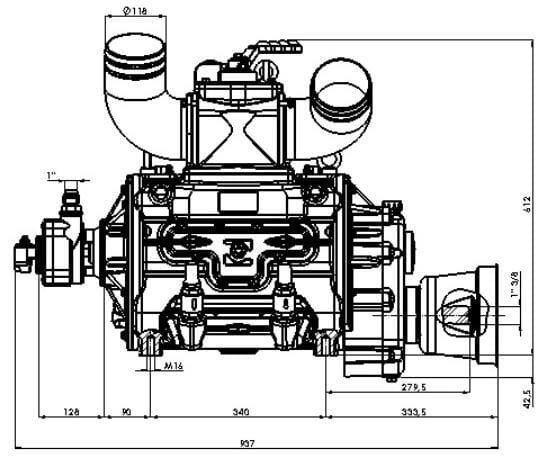

| Dimensions | 990 × 600 × 470 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000321345

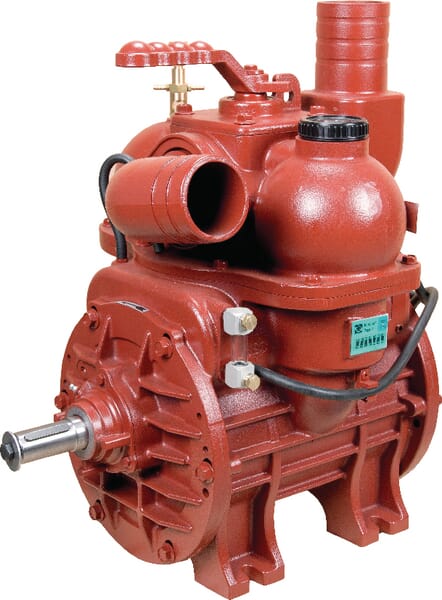

Battioni Pagani Vacuum pump belt-drive disc left MEC9000PL
£2,682.28 excl.
£3,218.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236480

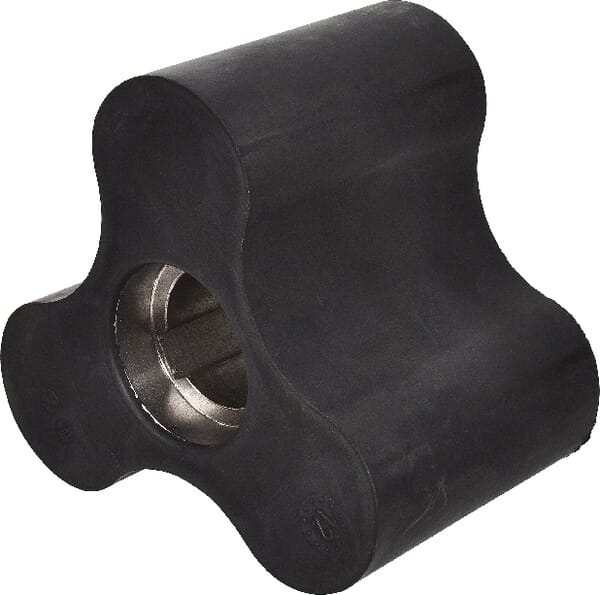

Battioni Pagani Rotor NBR BR-EVO 50 BR23N
£722.12 excl.
£866.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000130544
Battioni Pagani Hydraulic cylinder raingun 5090000080
£394.89 excl.
£473.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236828

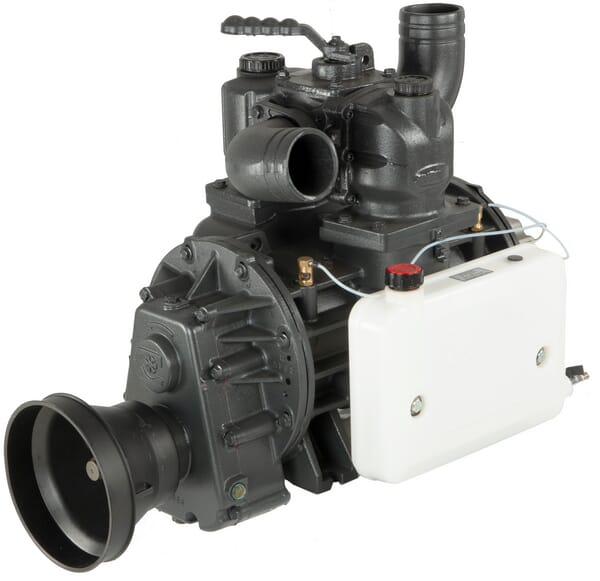

Battioni Pagani Vacuum pump standard AL CCW D100 LL BALLAST16500M
£3,762.92 excl.
£4,515.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236512

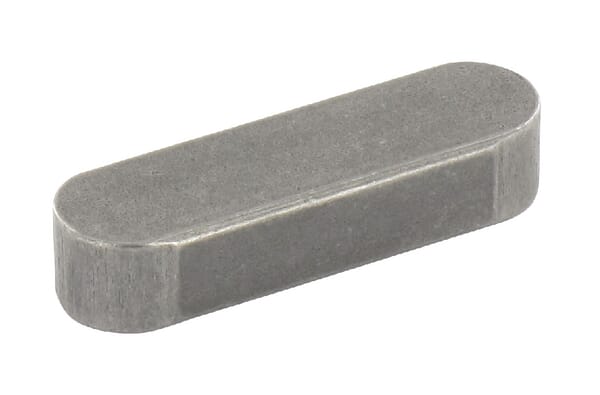

Battioni Pagani Key 12x8x40 BR-EVO 50 BR34DF
£13.02 excl.
£15.62 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000400935
Battioni Pagani Tenon 1/2" W44
£3.24 excl.
£3.89 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000297239
Kramp Power harrow tine 2x carbide tiles RH, length 300mm, suitable for Amazone, KE0116C2
£50.20 excl.
£60.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000190172

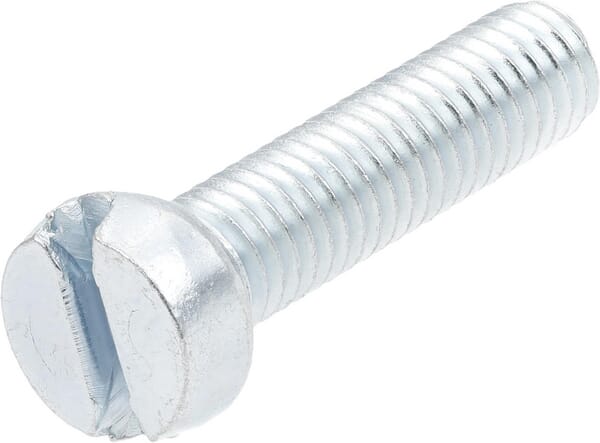

Kramp Slotted cheese head screw DIN84 M5x20 steel zinc-plated 4.8 84520P100
£0.06 excl.
£0.07 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000191525
New Holland (CNH) Exhaust manifold gasket New Holland 87801658
£55.38 excl.
£66.46 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000185759
Kramp Slotted cheese head screw DIN84 M4x12 steel zinc-plated 4.8 84412P100
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000011539
Scharmüller Towing Eye diameter 50mm 160x160 versetzt L255 DIN 9678-2 00665450A02
£634.44 excl.
£761.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101088
Corteco Oil seal, manual transmission B1U4 45x65x10 71ACM 40000379N
£4.19 excl.
£5.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000298889

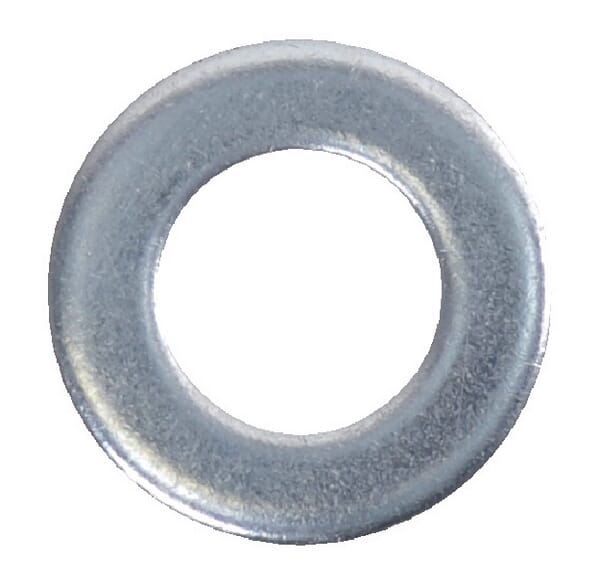

Kramp Washer M10x21x2mm, Steel Zinc-plated DIN 125 ISO708910300HV
£0.33 excl.
£0.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000065031

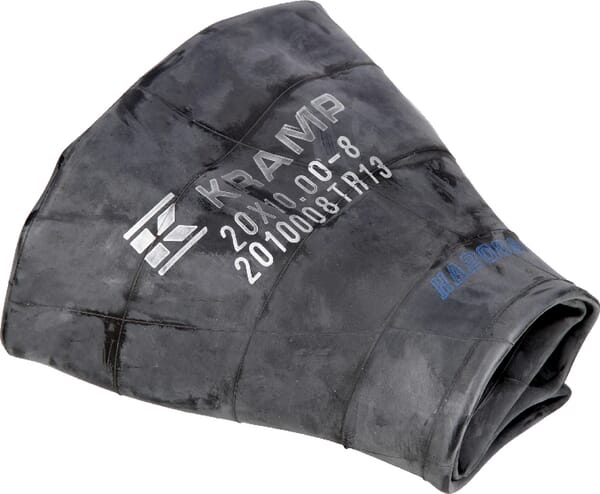

Kramp Inner tube for rim diameter 8", 20x10.00-8, straight valve TR13, 2010008TR13
