£7,181.51
excl. VAT
£8,617.81 incl. VAT
£8,617.81
incl. VAT
£7,181.51 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Ballast air injection system | Yes |
|---|---|
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Diameter of hose connection | 100 mm |
| Drive type | PTO 1000 rpm without gearbox |
| Includes | Pumps are delivered without oil (art. BP5070), Pumps are supplied without cooling radiator |
| Long description | Water cooler highly recommended for inclusion in cooling system., The water-cooled BPS pump is built to run continuously for a long time. This makes it ideal for e.g. large slurry tanks with injection system, vacuum trucks and industrial applications. The KPS pump is the ideal solution for professional users and contractors. |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 18620 l/min |
| Power requirement for max. vacuum | 25 kW |
| Product details | Item number breakdown:, KPS = Model, B = BALLAST system, air injection, 490, 550, 670 = Series, D = Direct driven, 1000 rpm, M = Drive with gearbox, 540 rpm, P = Pulley driven, H = Hydraulic pump driven, L = Rotation counter clockwise, R = Rotation clockwise, A = Automatic lubrication, 100 = Ø hose connection, 100mm, The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise. |
| Pros | Liquid cooled housing with integrated water pump, Extra air cooling (BALLAST air injection system), Comes standard with heat-resistant "Long Life" blades, Automatic lubrication, The pump is suitable for continuous operation in both vacuum and pressure modes, Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards, Easy blade wear check through inspection hole with wear indication mark, A test report by serial number is delivered with each pump |
| Rotation direction | Counter-clockwise (CCW) |
| Shaft diameter | 1-3/8 Inch |
| Unit | Each |
| Vane type | Long life |
| Weight | 245 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 270000 g |
| Dimensions | 950 × 600 × 500 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101803
Battioni Pagani Pump housing 4011101004
£686.58 excl.
£823.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321246

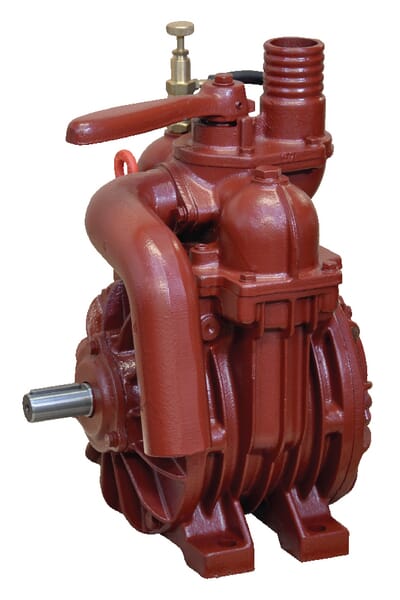

Battioni Pagani Vacuum pump MEC1000PL
£948.80 excl.
£1,138.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301336

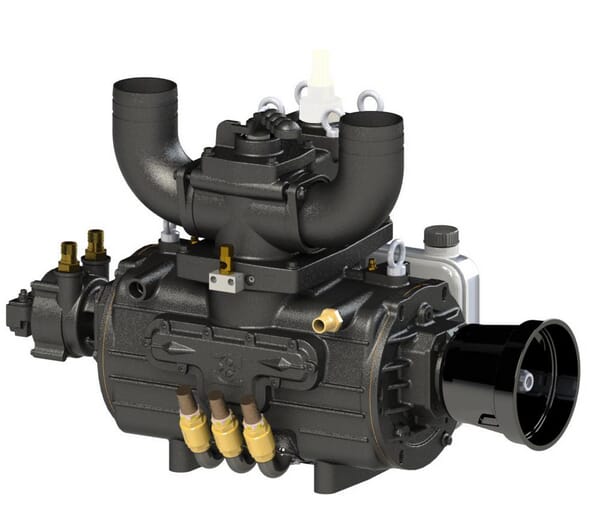

Battioni Pagani Vacuum pump direct drive 13520 l/min with automatic lubrication and Ballast KPSB490DLA100
£4,690.89 excl.
£5,629.07 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232304

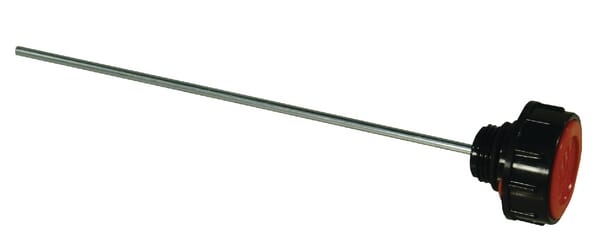

Battioni Pagani Dip stick AS132
£7.44 excl.
£8.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000245410

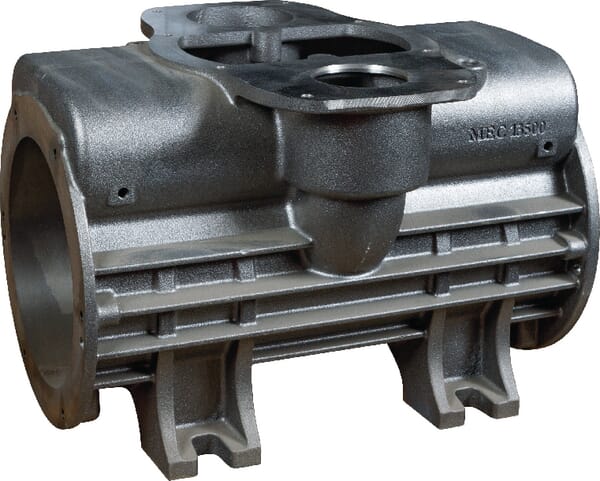

Battioni Pagani Rotor housing MEC13500 CMEC
