£3,231.08
excl. VAT
£3,877.30 incl. VAT
£3,877.30
incl. VAT
£3,231.08 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

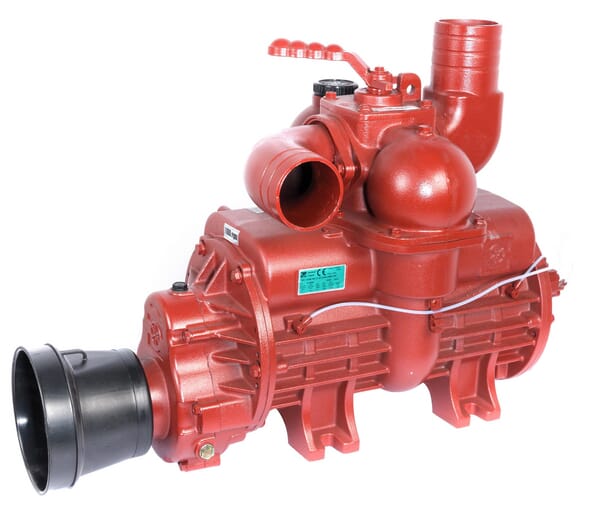

Product details
| AMounting holes to shaft end distance | 391 mm |
|---|---|
| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
| Ballast air injection system | No |
| Benefits | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |
| B,LMounting holes distance | 247 mm, 246 mm |
| CMounting holes to end distance | 192 mm |
| Consists of | Including PTO shaft cover, Without pressure relief valve (item 0200013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070) |
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Details | The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards, MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard, MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation, A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced, Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump |
| D,PDiameter of hose connection | 100 mm |
| Drive type | PTO 1000 rpm with gearbox |
| ETotal length | 830 mm |
| FMounting holes diameter | 22 mm |
| HHeight | 605 mm |
| IShaft centre to bottom distance | 69 mm |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max. shaft rotation | 1000 r/min |
| Max vacuum | 0.95 BAR |
| MShaft centre to left side end distance | 195 mm |
| Nominal volume flow rate | 13845 l/min |
| NShaft centre to right side end distance | 195 mm |
| OTotal width | 390 mm |
| Power requirement for max. pressure | 44 kW |
| Power requirement for max. vacuum | 25 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| Reservoir capacity | 3.5 l |
| Rotation direction | Counter-clockwise (CCW) |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 1-3/8 Inch |
| Technical info | Structure of item number: MEC = series, 9000 = type, MAV = direct drive, 1000 rpm, The pump is equipped with automatic lubrication, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Pumps with indirect drive (M) must be driven anti-clockwise, The direction of rotation is determined when the axle to be driven is aligned with the observer, If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise |
| Unit | Each |
| Vane type | Long life |
| Weight | 175 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 170000 g |
| Dimensions | 750 × 400 × 600 mm |
| Dangerous goods | No |
You might also like
BPA000232304

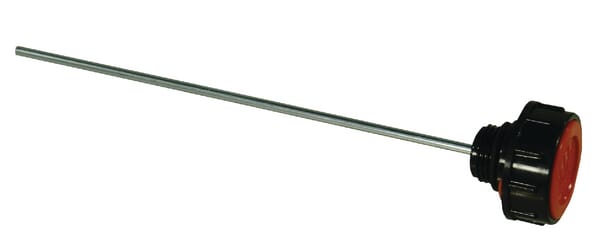

Battioni Pagani Dip stick AS132
£7.44 excl.
£8.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000064212

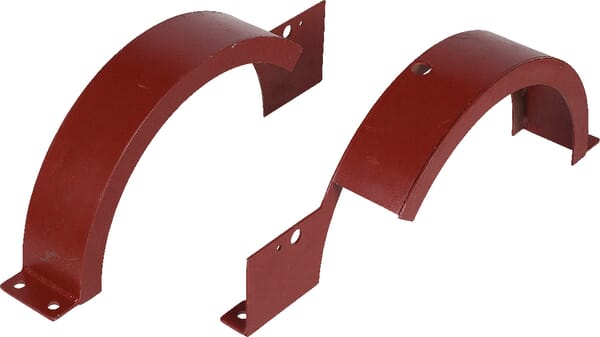

Battioni Pagani Fork tine guard BP 2008M
£359.15 excl.
£430.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321329
Battioni Pagani Vacuum pump hydraulic drive MEC8000H
£2,066.69 excl.
£2,480.03 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000321275
Battioni Pagani Vacuum pump hydraulic drive AL CW D100 LL MEC16500H
£3,608.28 excl.
£4,329.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000353425

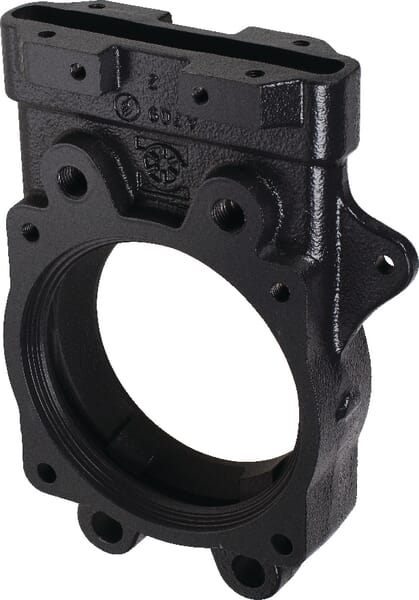

Battioni Pagani Housing 6" knife valve SA1
