£2,877.92
excl. VAT
£3,453.50 incl. VAT
£3,453.50
incl. VAT
£2,877.92 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Ballast air injection system | Yes |
|---|---|
| Crash protection system | Yes |
| Details | The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards, Pumps with a "ballast system", identified by B at the end of the item number (e.g. MEC9000MB) have a longer operating time in vacuum operation, The operating time at -0.95 bar lasts from 8 minutes (standard) up to a maximum of 15 minutes. Continuous operation is permissible at -0.6 bar., MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard, MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation, A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced, Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump |
| Drive type | Hydraulic |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Product details | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed, These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks, These pumps can generate both positive pressure and vacuum, Without pressure relief valve (item 0200013) and vacuum valve (item 0155513), Without hydraulic motor and key bush, The pumps are delivered without lubrication oil (item BP5070), Including hydraulic base for mounting the hydraulic motor. |
| Rotation direction | Clockwise (CW) |
| Technical info | Composition of the item numbers: MEC = series, 9000 = type, H = hydraulic drive, B = ballast system, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles Automatic lubrication available on request, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Pumps with hydraulic drive are clockwise, The direction of rotation is determined when the axle to be driven is aligned with the observer, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070) |
| Unit | Each |
| Vane type | Long life |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 155000 g |

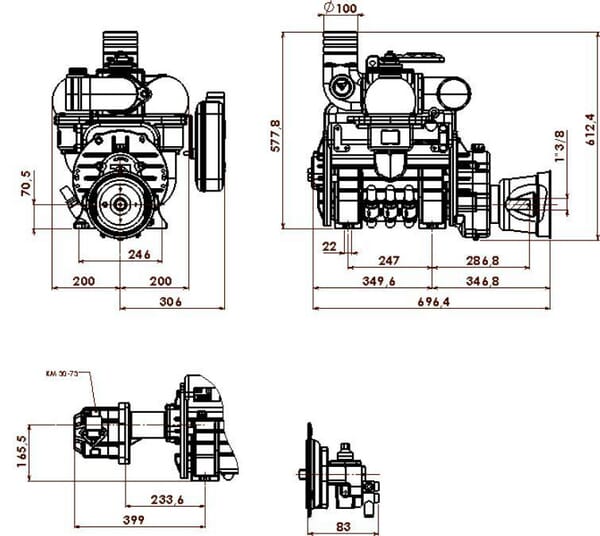

| Dimensions | 700 × 700 × 390 mm |
| Dangerous goods | No |
You might also like
BPA000236591
Battioni Pagani BR-EVO 50/D screw BR71
£4.78 excl.
£5.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000311000

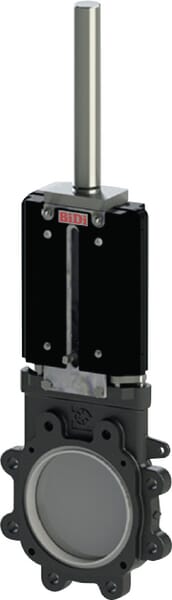

Battioni Pagani Gate valve 6" hydraulic LOCKER BiDi LVB150H
£807.79 excl.
£969.35 incl.
In stock
Expected to ship on Monday 21 September
BPA000321192
Battioni Pagani Vane 240x41x6.5mm standard ME7
£8.63 excl.
£10.36 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000401123

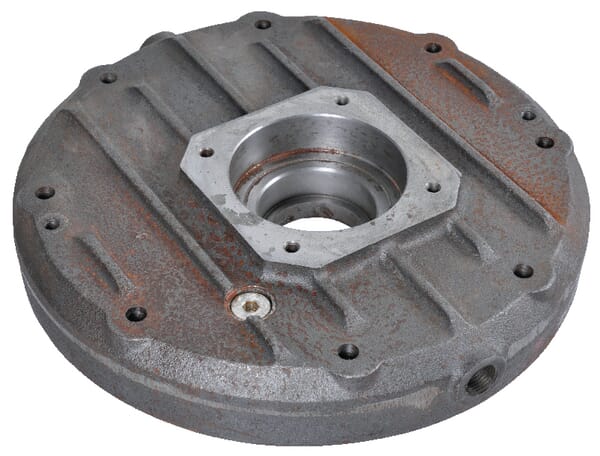

Battioni Pagani Back shield water cooled W83
£234.15 excl.
£280.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000128259

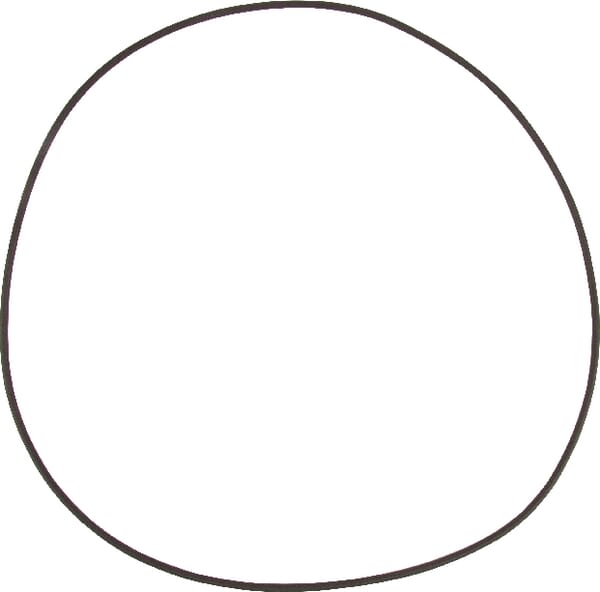

Battioni Pagani Seal ring 5030210062
£6.16 excl.
£7.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000230368
Battioni Pagani Dip stick 130mm long AM106
£5.41 excl.
£6.49 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000061919
Kramp Oil seal 3/4x1-1/14x3/16" type:CB DIN 3760 1x 19053175476CBP001
£1.95 excl.
£2.34 incl.
In stock
Expected to ship on Friday 18 September
BPA000201403
Kramp Oil seal 3/8x7/8x1/4" type:CB DIN 3760 1x 9522222635CBP001
£1.73 excl.
£2.08 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026474
Bosch Rexroth Gear pump AZPFF-10-019/014LHXXXXXMX-S0201 0510665440
£885.83 excl.
£1,063.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000202246
Kramp Hexagon head bolt DIN933 UNC 9/16"x2" steel zinc-plated 8.8 9339162UNC
£3.01 excl.
£3.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000083836

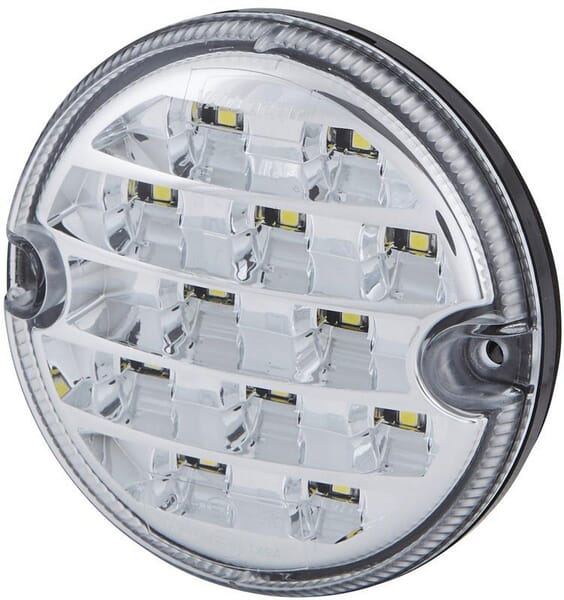

Hella Reversing light LED, round, 10/30V, transparent, bolt on, diameter 95mm, 17 LED's, 2ZR357028041
