£807.79
excl. VAT
£969.35 incl. VAT
£969.35
incl. VAT
£807.79 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

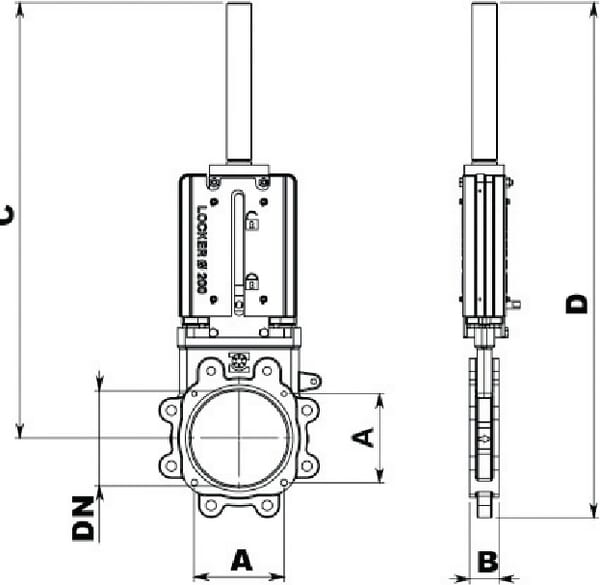

| AFlange mounting bolts/holes distance | 150 mm |
|---|---|
| Application range | Liquid manure service applications, Agricultural tankers or vacuum trucks, Biogas industry, Waste water treatment plants, General industrial service applications |

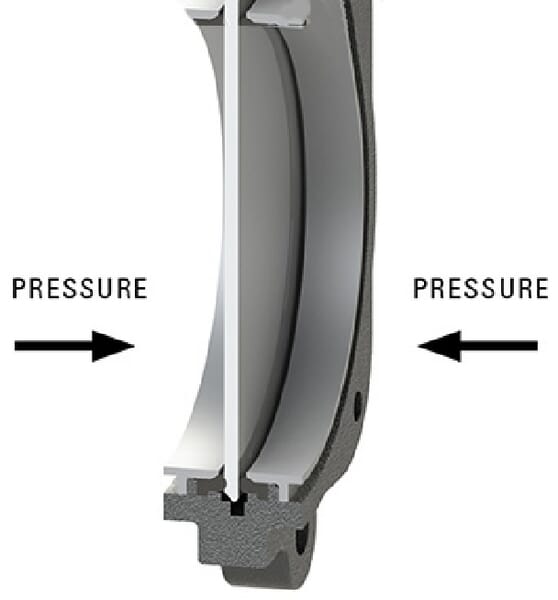

| Benefits | Bi-directional, High durability |
| BFlange thickness | 60 mm |
| CPassage hole centre to lever end distance | 800 mm |

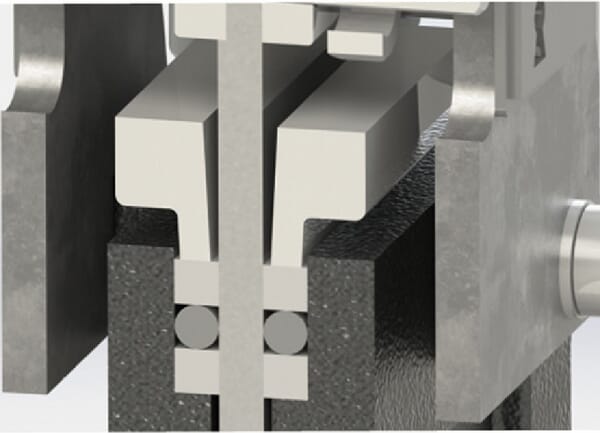

| Details | Offers excellent protection to oxidating and corrosion, even with slurry, Durable sealing system prevents leakages |
| DNPassage hole nominal diameter | 150 mm |
| DTotal height | 930 mm |
| Flange connection type | DIN PN10 - UNI EN 1092-1, UNI EN ISO 12100:2010, DIR: 2006/42 CE, DIR: 97/23CE |
| Max medium temperature | 90 °C |
| Max working pressure | 10 BAR |
| Min medium temperature | -20 °C |

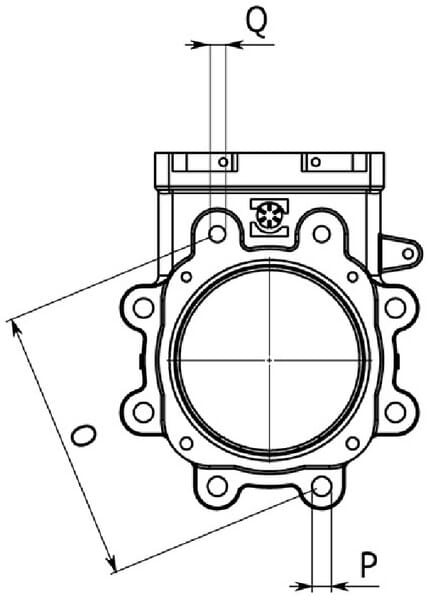

| OFlange mounting bolts/holes circle diameter | 240 mm |
| PFlange 2 mounting bolts/holes thread diameter | M22 |
| Properties | Open/close indicator on gate valve, One-piece casting body, Double acting cylinder |
| QFlange mounting bolts/holes thread diameter | M20 |
| Unit | Each |
| Weight | 20 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20000 g |
| Dimensions | 935 × 250 × 120 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101825

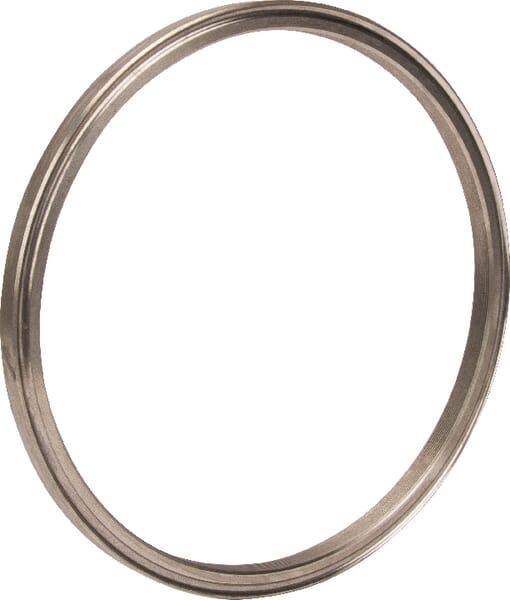

Battioni Pagani Locking Ring 4011707059
£155.78 excl.
£186.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232372
Battioni Pagani Ball cock rubber 90mm AS56
£29.90 excl.
£35.88 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000101719

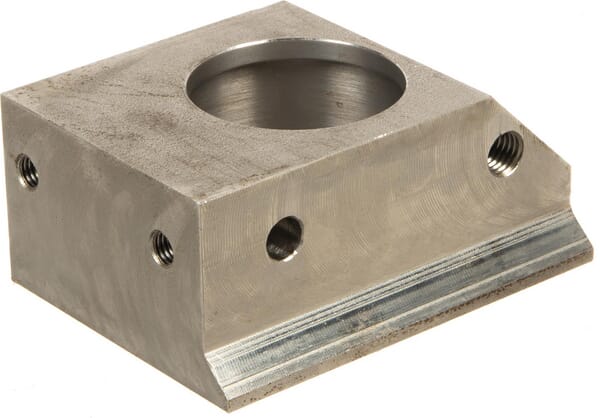

Battioni Pagani Motor Short Block Support 4010007026
£192.17 excl.
£230.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000311005

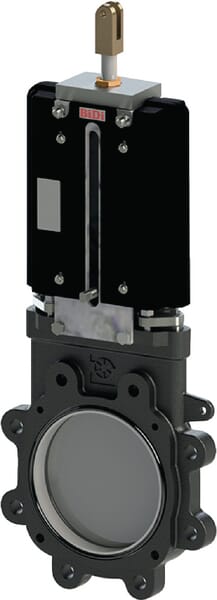

Battioni Pagani Gate valve 10" std. LOCKER BiDi LVB250
£1,329.54 excl.
£1,595.45 incl.
In stock
Expected to ship on Monday 21 September
BPA000236582

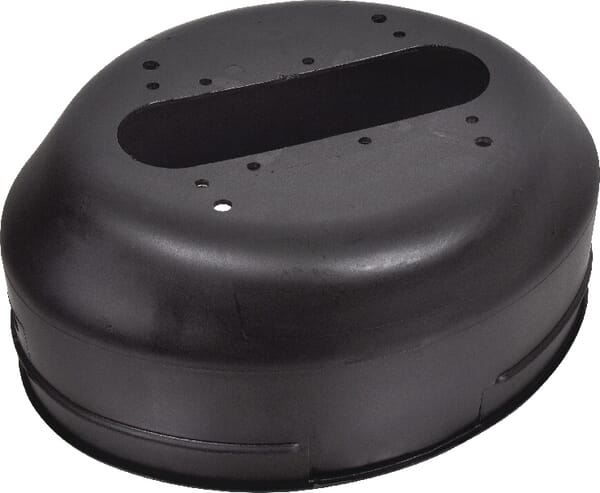

Battioni Pagani BR-EVO 90-170/D shielding BR69
£77.44 excl.
£92.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000245358

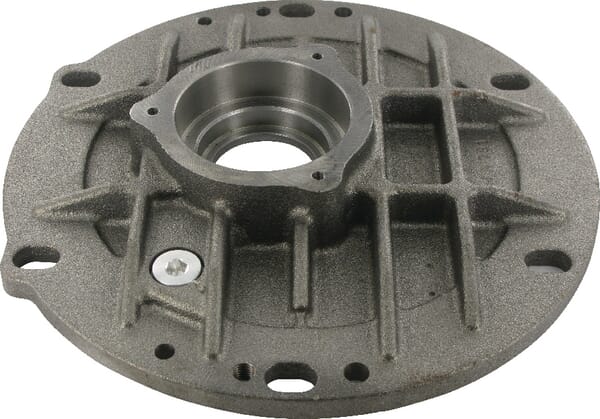

Battioni Pagani P/D flange plate CM3DF
