£1,280.95
excl. VAT
£1,537.14 incl. VAT
£1,537.14
incl. VAT
£1,280.95 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

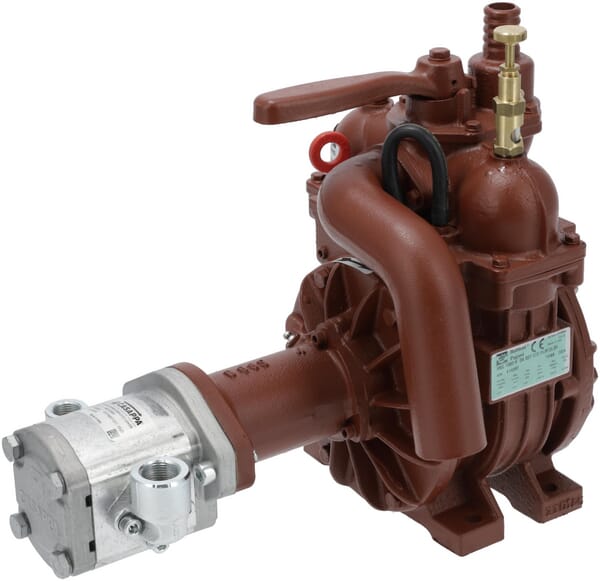

| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
|---|---|
| Ballast air injection system | No |
| Benefits | As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |
| Consists of | These pumps are supplied with standard vanes. Long-life vanes available on request, Without pressure relief valve and vacuum valve, The pumps are delivered without lubrication oil (item BP5070), Including hydraulic base for mounting the hydraulic motor |
| Crash protection system | No |
| Details | Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump |
| Diameter of hose connection | 45 mm |
| Drive type | Hydraulic |
| Extra info | Hydraulic motor and splined bushing Included |

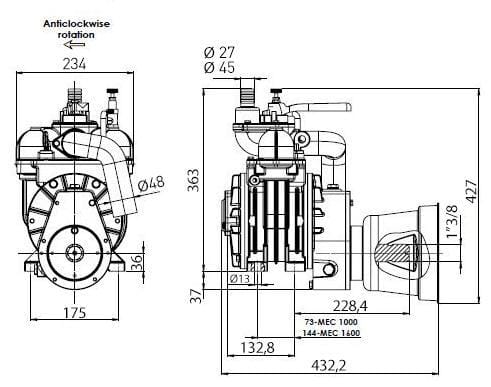

| Height | 363 mm |
| Lubrication system type | Forced |
| Max. shaft rotation | 1400 r/min |
| Max vacuum | 0.9 BAR |
| Mounting holes diameter | 13 mm |
| Mounting holes distance | 73 mm |

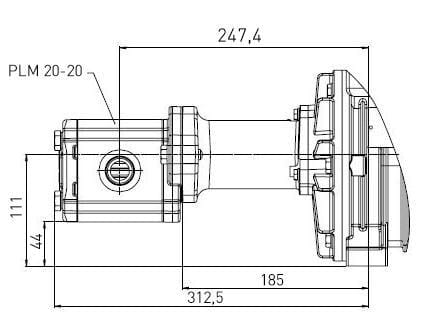

| Mounting holes to shaft end distance | 185 mm |
| Nominal volume flow rate | 1260 l/min |
| Properties | These pumps can generate both positive pressure and vacuum |
| Rotation direction | Clockwise (CW) |
| Safety valve connection diameter | 1 Inch |
| Shaft centre to left side end distance | 145 mm, 125 mm |
| Technical info | Composition of the part numbers: MEC = series, 8000 = type, H = hydraulic drive, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles Automatic lubrication available on request, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Hydraulically driven pumps rotate clockwise. Anti-clockwise rotation available on request, The direction of rotation is determined when the axle to be driven is aligned with the observer, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070) |
| Total length | 318 mm |
| Total width | 234 mm |
| Unit | Each |
| Vane type | Standard |
| Weight | 48 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 45000 g |
| Dimensions | 450 × 380 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000101707
Battioni Pagani Internal Coupling 4010001027
£1,262.30 excl.
£1,514.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321259

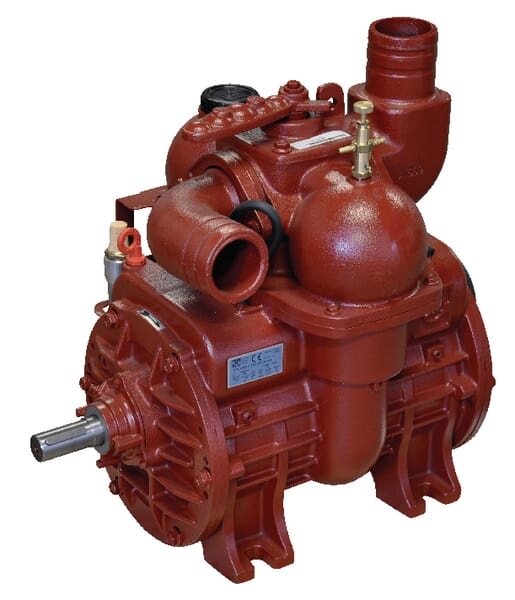

Battioni Pagani Vacuum pump pulley, auto-lube and Ballast MEC11000PAB
£2,688.03 excl.
£3,225.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000233988
Battioni Pagani O-ring 71.44x3.53mm 70 shore black BREVO39N
£7.65 excl.
£9.18 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000321316

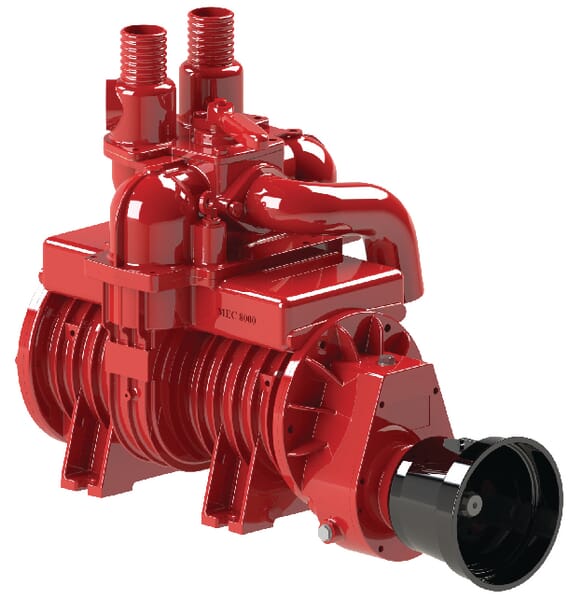

Battioni Pagani Vacuum pump double tank connection MEC6500MDU
£2,509.96 excl.
£3,011.95 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233989

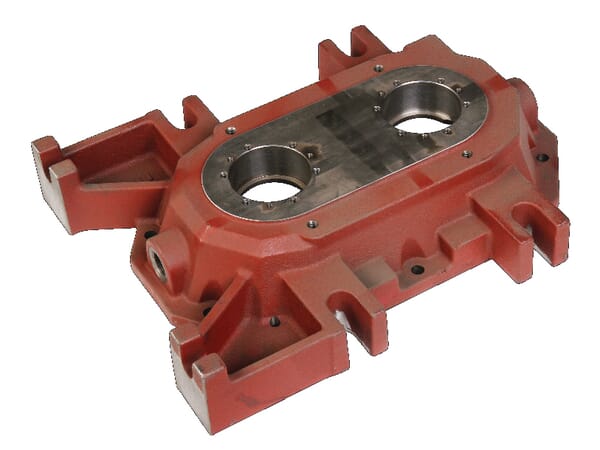

Battioni Pagani Axle support BR-EVO 260 BREVO4
£1,124.65 excl.
£1,349.58 incl.
Backorder available
Usually ships within 3–8 weeks

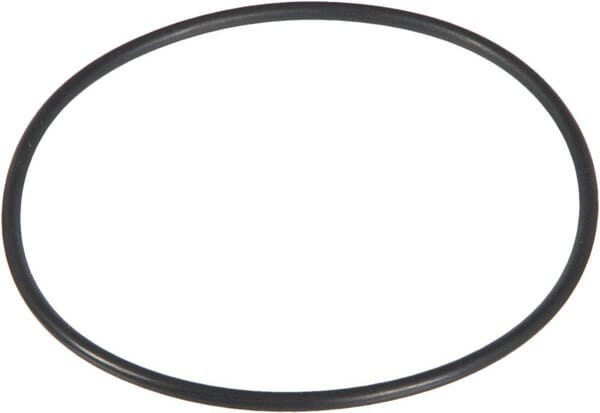

BPA000339004
