£5,449.37
excl. VAT
£6,539.24 incl. VAT
£6,539.24
incl. VAT
£5,449.37 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Ballast air injection system | Yes |
|---|---|
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Diameter of hose connection | 100 mm |
| Drive type | Pulley |
| Includes | Pumps are delivered without oil (art. BP5070), Pumps are supplied without cooling radiator |

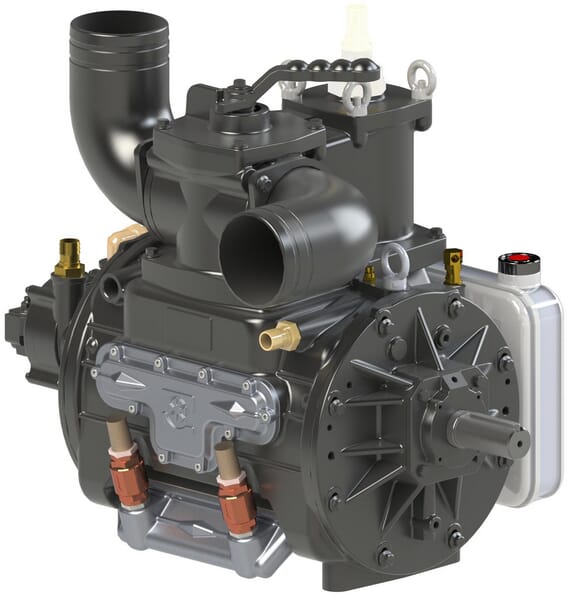

| Long description | Water cooler highly recommended for inclusion in cooling system., The water-cooled BPS pump is built to run continuously for a long time. This makes it ideal for e.g. large slurry tanks with injection system, vacuum trucks and industrial applications. The KPS pump is the ideal solution for professional users and contractors. |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 13520 l/min |
| Power requirement for max. vacuum | 19 kW |
| Product details | Item number breakdown:, KPS = Model, B = BALLAST system, air injection, 490, 550, 670 = Series, D = Direct driven, 1000 rpm, M = Drive with gearbox, 540 rpm, P = Pulley driven, H = Hydraulic pump driven, L = Rotation counter clockwise, R = Rotation clockwise, A = Automatic lubrication, 100 = Ø hose connection, 100mm, The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise. |
| Pros | Liquid cooled housing with integrated water pump, Extra air cooling (BALLAST air injection system), Comes standard with heat-resistant "Long Life" blades, Automatic lubrication, The pump is suitable for continuous operation in both vacuum and pressure modes, Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards, Easy blade wear check through inspection hole with wear indication mark, A test report by serial number is delivered with each pump |
| Rotation direction | Clockwise (CW) |
| Unit | Each |
| Vane type | Long life |
| Weight | 205 kg |
Compatible accessories
Parts and components that work with this product.
1502C12
Battioni Pagani Radiator+ventilator 12 V 1502C12
£1,628.66 excl.
£1,954.39 incl.
1502C24
Battioni Pagani Radiator+ventilator 24 V 1502C24
£1,541.37 excl.
£1,849.64 incl.
0155513
MZ Vacuum relief valve 1 1/2" 0155513
£27.03 excl.
£32.44 incl.
0250013
MZ Safety Valve 2 1/2" 0250013
£86.18 excl.
£103.42 incl.
2107E
Battioni Pagani Hydraulic switching set BALLAST 2107E
£301.18 excl.
£361.42 incl.
213E
Battioni Pagani Syphon 10.000-18.000 rpm B.P 213E
£946.74 excl.
£1,136.09 incl.
217E
Battioni Pagani Overflow valve 217E
£542.75 excl.
£651.30 incl.
217G
Battioni Pagani Overflow valve B.P 217G
£633.58 excl.
£760.30 incl.
400111
Battioni Pagani Filter-silencer 14.000 l/min 400111
£768.31 excl.
£921.97 incl.
40027
Battioni Pagani Air pre-cleaner 40027
£186.87 excl.
£224.24 incl.
4060505057
Battioni Pagani Manifold filter cartridge 4060505057
£120.56 excl.
£144.67 incl.
BP5070
Battioni Pagani Vacuum pump oil, 5l, mineral, by BP5070
£74.06 excl.
£88.87 incl.
2009C
Battioni Pagani Pulley MEC 9000/13500, KPS490 2009C
£612.02 excl.
£734.42 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 150000 g |
| Dimensions | 900 × 600 × 550 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000231526

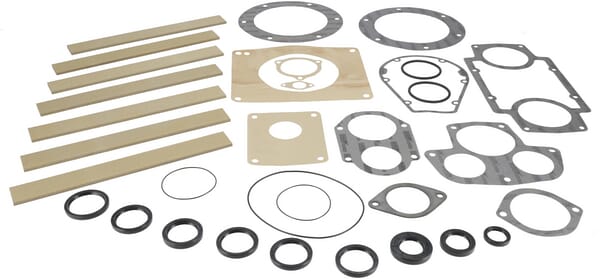

Battioni Pagani Repair kit MEC6500 with standard vanes AMEC7KIT
£137.41 excl.
£164.89 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000245349
Battioni Pagani Flange plate/M CM2
£179.47 excl.
£215.36 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000321311
Battioni Pagani Vacuum pump direct drive CCW auto-lube MEC6500DLA
£2,322.82 excl.
£2,787.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000235637
Battioni Pagani Shaft BR 200 D B7200D
£887.94 excl.
£1,065.53 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000231408
Battioni Pagani Rotor nut AM32
£6.29 excl.
£7.55 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000351202

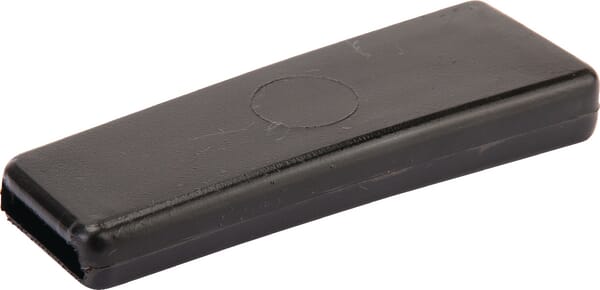

Battioni Pagani Handle SA30
