SKU BPA000321311 · Part No MEC6500DLA

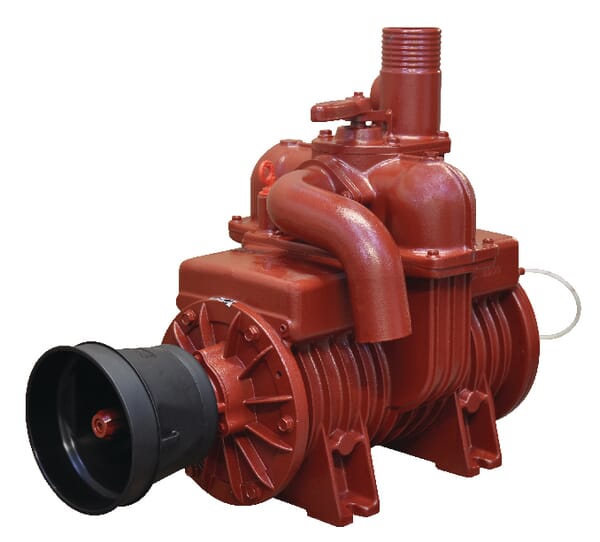

Battioni Pagani Vacuum pump direct drive CCW auto-lube MEC6500DLA

Name: Vacuum pump direct drive CCW auto-lube Battioni Pagani
Brand: Battioni Pagani
SKU: BPA000321311
Price: 2787.38 GBP
Availability: BackOrder

Application range	These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks

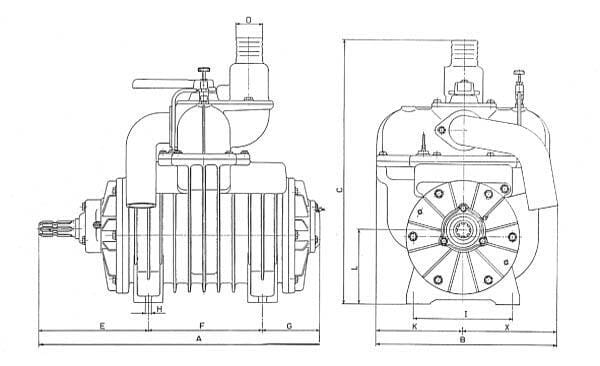

ATotal length	650 mm
Ballast air injection system	No
Benefits	As B.P. pumps are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
BTotal width	410 mm
CHeight	597 mm
Consists of	These pumps are supplied with standard vanes. Long-life vanes available on request, Without pressure relief valve and vacuum valve, The pumps are delivered without lubrication oil (item BP5070), Including PTO shaft cover
Crash protection system	No
DDiameter of hose connection	60 mm
Details	Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump
Drive type	PTO 1000 rpm without gearbox
EMounting holes to shaft end distance	268 mm
GMounting holes to end distance	130 mm
HMounting holes diameter	15 mm
IMounting holes distance	227 mm, 252 mm
KShaft centre to left side end distance	195 mm
LShaft centre to bottom distance	164 mm
Lubrication system type	Automatic
Max. relative pressure	1.5 BAR
Max. shaft rotation	1400 r/min
Max vacuum	0.9 BAR
Nominal volume flow rate	7000 l/min
Power requirement for max. vacuum	12 kW
Properties	These pumps can generate both positive pressure and vacuum
Rotation direction	Counter-clockwise (CCW)
Safety valve connection diameter	1-1/2 Inch
Shaft diameter	1-3/8 Inch
Technical info	Composition of the item numbers: MEC = series, 8000 = type, D = direct drive 1000 rpm, L = anti-clockwise rotation, A = automatic lubrication, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Directly driven pumps (DL) must be driven anti-clockwise. Clockwise rotation available on request, The direction of rotation is determined when the axle to be driven is aligned with the observer, If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070)
Unit	Each
Vane type	Standard
Weight	135 kg
XShaft centre to right side end distance	215 mm

EAN	—
Unit of measure	EA
Weight	140000 g
Dimensions	700 × 700 × 400 mm
Dangerous goods	No
