£7,172.87
excl. VAT
£8,607.44 incl. VAT
£8,607.44
incl. VAT
£7,172.87 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Ballast air injection system | Yes |
|---|---|
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Diameter of hose connection | 100 mm |
| Drive type | Pulley |
| Includes | Pumps are delivered without oil (art. BP5070), Pumps are supplied without cooling radiator |
| Long description | Water cooler highly recommended for inclusion in cooling system., The water-cooled BPS pump is built to run continuously for a long time. This makes it ideal for e.g. large slurry tanks with injection system, vacuum trucks and industrial applications. The KPS pump is the ideal solution for professional users and contractors. |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 18620 l/min |
| Power requirement for max. vacuum | 25 kW |
| Product details | Item number breakdown:, KPS = Model, B = BALLAST system, air injection, 490, 550, 670 = Series, D = Direct driven, 1000 rpm, M = Drive with gearbox, 540 rpm, P = Pulley driven, H = Hydraulic pump driven, L = Rotation counter clockwise, R = Rotation clockwise, A = Automatic lubrication, 100 = Ø hose connection, 100mm, The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise. |
| Pros | Liquid cooled housing with integrated water pump, Extra air cooling (BALLAST air injection system), Comes standard with heat-resistant "Long Life" blades, Automatic lubrication, The pump is suitable for continuous operation in both vacuum and pressure modes, Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards, Easy blade wear check through inspection hole with wear indication mark, A test report by serial number is delivered with each pump |
| Rotation direction | Clockwise (CW) |
| Unit | Each |
| Vane type | Long life |
| Weight | 245 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 261000 g |
| Dimensions | 1000 × 640 × 500 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000236700
Battioni Pagani EVO 90-260 rotor disAssembly set BRE72
£340.55 excl.
£408.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000236667
Battioni Pagani Cover plate FKM BR-EVO 90 BRE26F
£124.62 excl.
£149.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236658

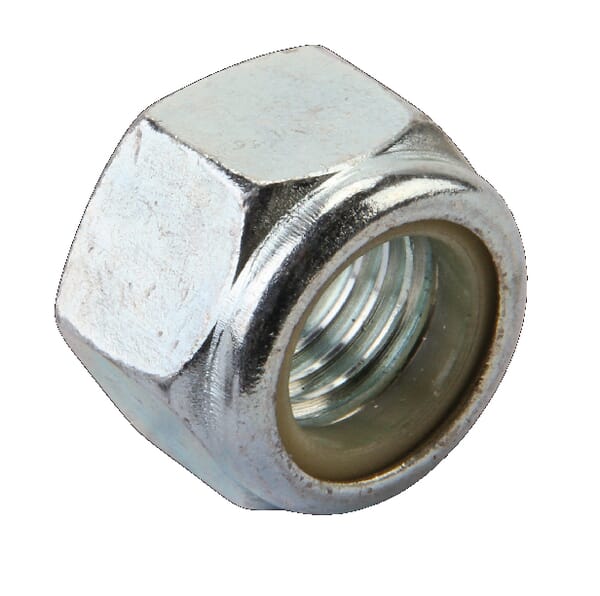

Battioni Pagani Self-lock nut BR-EVO 90/260 BRE17
£7.39 excl.
£8.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000101784
Battioni Pagani Reversing gear - Ballast 16000 4010701021
£209.09 excl.
£250.91 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000231453

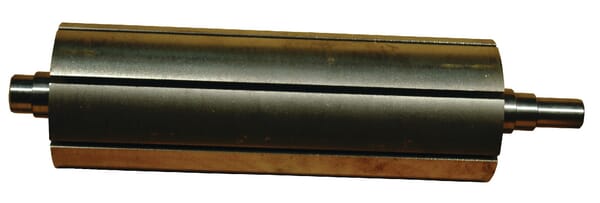

Battioni Pagani Rotor for MEC / H AM5H
£427.33 excl.
£512.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000236637
Battioni Pagani Plastic plug BR-EVO 50 BR94
£19.46 excl.
£23.35 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000127344
Kramp V-belt pulley 1 groove A or SPA diameter 505.50mm for taperlockbush 2517 500A1TL
£159.69 excl.
£191.63 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000157437

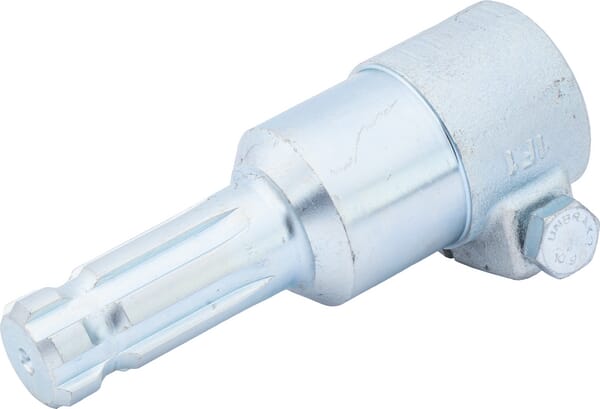

Kramp PTO Reducer Male 1 1/8" (6) Female 1 3/8" (6) with clamp bolt 6710103KR
