£2,368.94
excl. VAT
£2,842.73 incl. VAT
£2,842.73
incl. VAT
£2,368.94 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
|---|---|
| Ballast air injection system | Yes |
| Benefits | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |
| Consists of | Without pressure relief valve (item 0200013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070), Without pulley |
| Crash protection system | Yes |
| Details | The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards, Pumps with a "ballast system", identified by B at the end of the item number (e.g. MEC9000MB) have a longer operating time in vacuum operation, The operating time at -0.95 bar lasts from 8 minutes (standard) up to a maximum of 15 minutes. Continuous operation is permissible at -0.6 bar., MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard, MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation, A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced, Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump |
| Drive type | Pulley |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Properties | These pumps can generate both positive pressure and vacuum |
| Rotation direction | Clockwise (CW) |
| Technical info | Composition of item numbers: MEC= series, 9000= type, P= pulley drive, B= ballast system, A= automatic lubrication, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles Automatic lubrication available on request, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Pumps with pulley drive rotate clockwise. Counterclockwise rotation with 'L' in the item number or available on request, The direction of rotation is determined when the axle to be driven is aligned with the observer, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070) |
| Unit | Each |
| Vane type | Long life |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000321269
Battioni Pagani Vacuum pump pulley, auto-lube and Ballast MEC13500PABL
£3,124.33 excl.
£3,749.20 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321268
Battioni Pagani Vacuum pump pulley, auto-lube and Ballast MEC13500PAB
£3,971.14 excl.
£4,765.37 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321259
Battioni Pagani Vacuum pump pulley, auto-lube and Ballast MEC11000PAB
£2,688.03 excl.
£3,225.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000129614
Battioni Pagani Cylindrical Pin 5051107010
£9.60 excl.
£11.52 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000101853
Battioni Pagani Front Pin 4011912008
£275.21 excl.
£330.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000129553
Battioni Pagani Screw 5050207028
£9.61 excl.
£11.53 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000229019

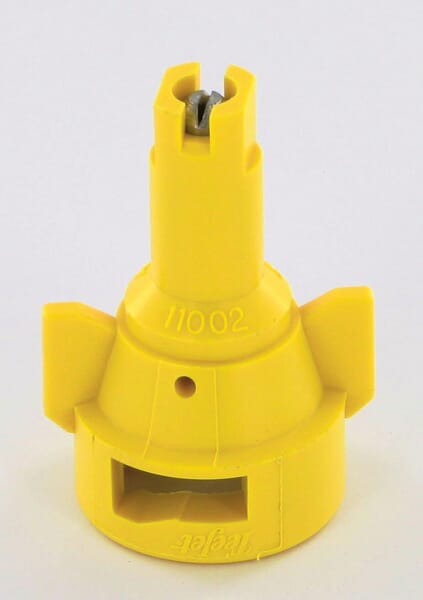

TeeJet Air injection nozzle AIC 110° 02 yellow stainless steel AIC11002VS
£28.63 excl.
£34.36 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000068178
Kramp Oil seal 20x52x10mm type:CC DIN 3760 1x 205210CCP001
£1.84 excl.
£2.21 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000198453
Kramp Hex head bolt UNC 3/8"x4" DIN931 steel zinc-plated 8.8 931384UNC
£3.13 excl.
£3.76 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000329128
Kramp O-ring 17.17x1.78mm 75 shore Viton 10x OR1717178VP010
£5.11 excl.
£6.13 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000204736

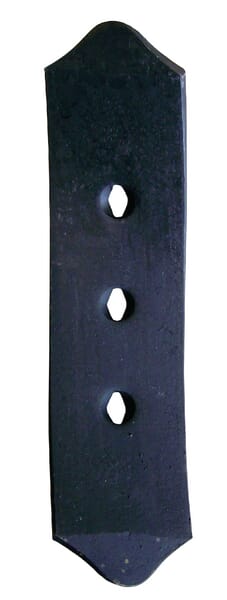

Kramp Cultivator point 390x100x12mm, reversible, flat, 3 hole, suitable for Pöttinger 965500671N
