SKU BPA000321269 · Part No MEC13500PABL

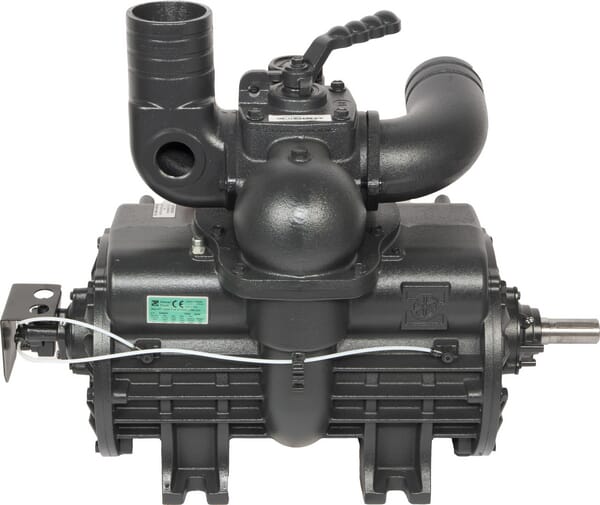

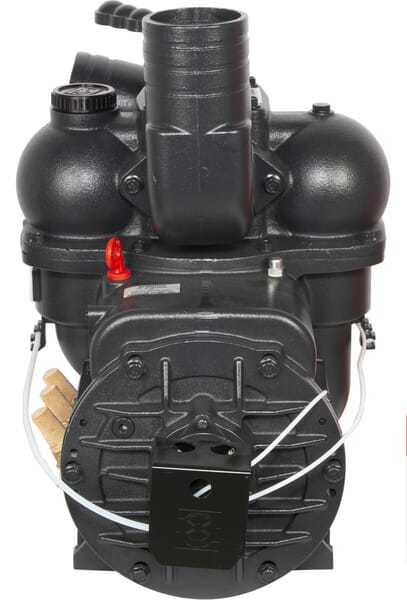

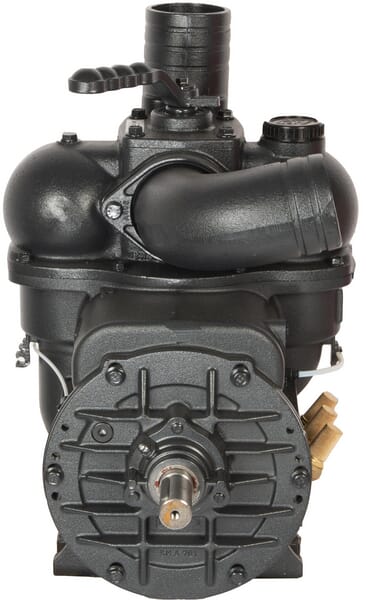

Battioni Pagani Vacuum pump pulley, auto-lube and Ballast MEC13500PABL

Name: Vacuum pump pulley, auto-lube and Ballast Battioni Pagani
Brand: Battioni Pagani
SKU: BPA000321269
Price: 3749.20 GBP
Availability: BackOrder

Application range	These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Ballast air injection system	Yes
Benefits	Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Consists of	Without pressure relief valve (item 0200013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070), Without pulley
Crash protection system	Yes
Details	The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards, Pumps with a "ballast system", identified by B at the end of the item number (e.g. MEC9000MB) have a longer operating time in vacuum operation, The operating time at -0.95 bar lasts from 8 minutes (standard) up to a maximum of 15 minutes. Continuous operation is permissible at -0.6 bar., MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard, MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation, A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced, Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors, A test report relating to the serial number is drawn up for each pump
Drive type	Pulley
ETotal length	830 mm
Lubrication system type	Automatic
Max. relative pressure	1.5 BAR
Properties	These pumps can generate both positive pressure and vacuum
Rotation direction	Counter-clockwise (CCW)
Technical info	Composition of item numbers: MEC= series, 9000= type, P= pulley drive, B= ballast system, A= automatic lubrication, On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles Automatic lubrication available on request, On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool, In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation, Pumps with pulley drive rotate clockwise. Counterclockwise rotation with 'L' in the item number or available on request, The direction of rotation is determined when the axle to be driven is aligned with the observer, Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070)
Unit	Each
Vane type	Long life

EAN	—
Unit of measure	EA
Weight	175000 g

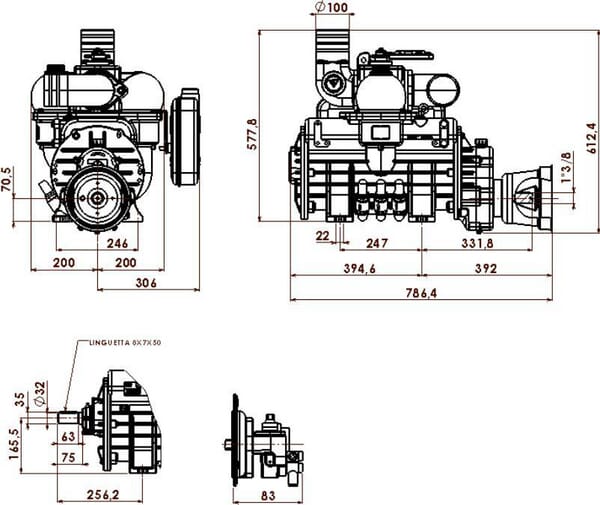

Dimensions	800 × 790 × 400 mm
Dangerous goods	No
