£1,742.82
excl. VAT
£2,091.38 incl. VAT
£2,091.38
incl. VAT
£1,742.82 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Ground chain, agricultural machines, Belt conveyor |
|---|---|
| Benefits | Higher torque with simple hydraulic motor, Alternative to chain drive |
| Connection 1 inside diameter | 32.00 mm |
| Connection 1 outside diameter | n/a |
| Connection 1 Outside Diameter inch and splines | n/a |
| Connection 2 inside diameter | 65.00 mm |
| Connection 2 outside diameter | n/a |
| Connection 2 Outside Diameter inch and splines | n/a |
| Connection 3 outside diameter | n/a |
| Connection 3 Outside Diameter inch and splines | n/a |
| Contains oil | No |
| Details | Robust gearbox casing made of cast iron |
| Max. oil capacity | 9.5 l |
| Max. oil change interval | 500 h |
| Max. output torque | 9700 N·m |
| Model | RT1000 |
| Oil SAE viscosity grade | 80W-90 |
| Product details | The gearbox is delivered without oil and must be filled before first use., First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year. |
| Ratio factor | 38.7:1 |
| Unit | Each |
| Weight | 88 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 130000 g |
| Dimensions | 800 × 600 × 300 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000355307

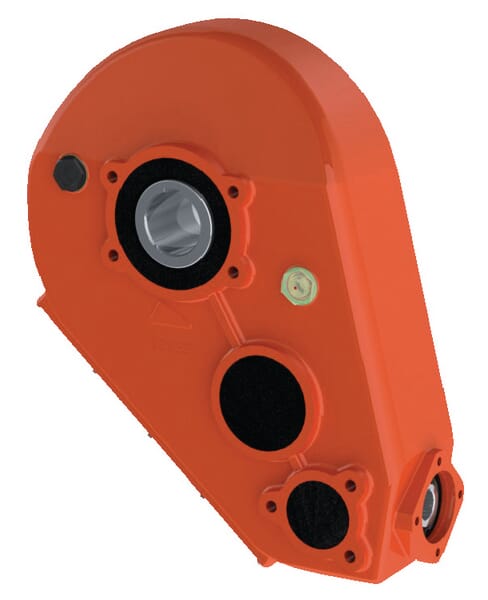

Berma Gearbox 38.7:1 RT10007032
£1,706.95 excl.
£2,048.34 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000355320

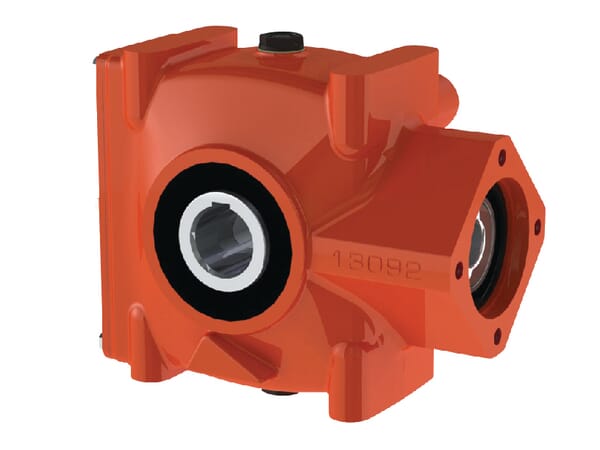

Berma Gearbox 4.1:1 RT14540
£624.89 excl.
£749.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000355349

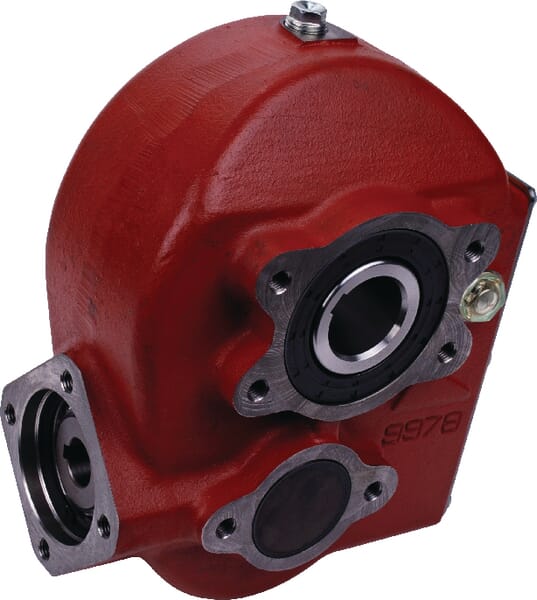

Berma Gearbox 10.2:1, diameter 45 RT19045
