£400.90
excl. VAT
£481.08 incl. VAT
£481.08
incl. VAT
£400.90 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Low space requirement, Torque retention, Smooth transition |
| Clutch type code | FV32 |
| Connection locking type | Clamp cone |
| Cross cap diameter | 30.2 mm |
| Cross length | 79.4 mm |
| Details | Compact design, No power interruption, Absorb peak loads for short periods |

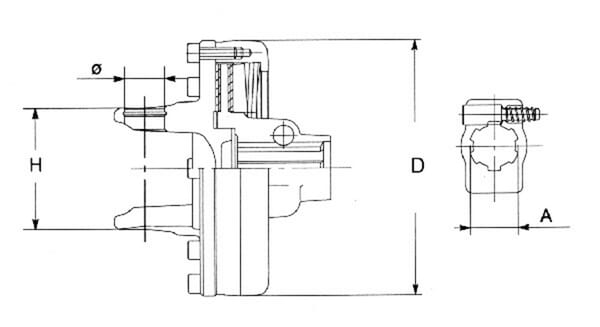

| DOutside diameter | 180 mm |
| HMounting holes distance | 91 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Max static torque | 1000 N·m |
| ØMounting holes circle diameter | 30.2 mm |
| Original number equivalent | 661G44203R |
| Properties | Regardless of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | 5, S5, S6, G5 |
| Suitable for machine/vehicle brand | n/a |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8105 g |
| Dimensions | 274 × 205 × 198 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000156836
Bondioli&Pavesi Clutch FV32 1000Nm 661E44203R
£380.90 excl.
£457.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000039326
Bondioli&Pavesi Profile tube inner triangular 1/G1 diameter in: 18.5 diameter out: 26.5x4mm L: 3m Bondioliand Pavesi 125023000R06
£237.91 excl.
£285.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000071681
Bondioli&Pavesi Inner guard tube 236670676
£42.73 excl.
£51.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000112400
Bondioli&Pavesi Spring set 2900 Nm for Lr 2 421166902R
£213.32 excl.
£255.98 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000156628
Bondioli&Pavesi FN 24 friction clutch 659548103
£703.39 excl.
£844.07 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000148271
Bondioli&Pavesi Protection complete GR.G 5CG7121FXSS
£126.25 excl.
£151.50 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000131541
Bondioli&Pavesi Yoke, Double, 22mm, G2/S2 Bondioliand Pavesi 5110C0053
£297.52 excl.
£357.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000091980
Tente Caster wheel swivel, polyamide wheel: diameter 100x36mm, plate fitting: 105x85mm Load: 200kg, 3470UOJ100P62
£16.61 excl.
£19.93 incl.
In stock
Expected to ship on Friday 18 September
BPA000152110
Kramp Coach bolt and nut DIN603 M10x45 steel zinc-plated 4.6 6031045
£0.31 excl.
£0.37 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000029085

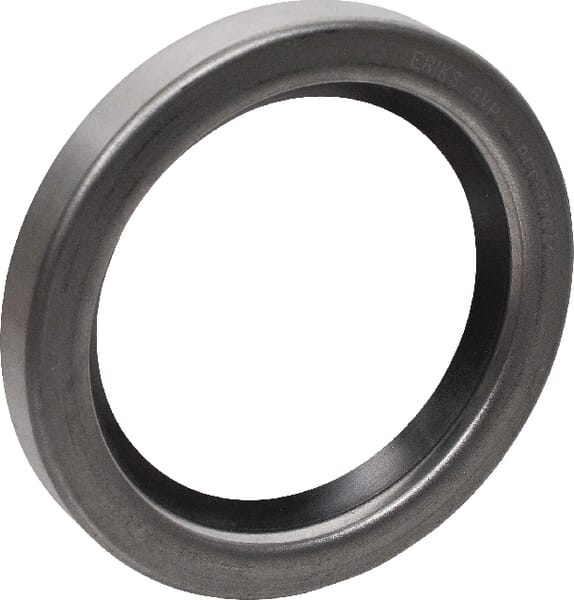

Kramp Oil seal 110x140x13mm type:DL 1x 11014013DLP001
