£380.90
excl. VAT
£457.08 incl. VAT
£457.08
incl. VAT
£380.90 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

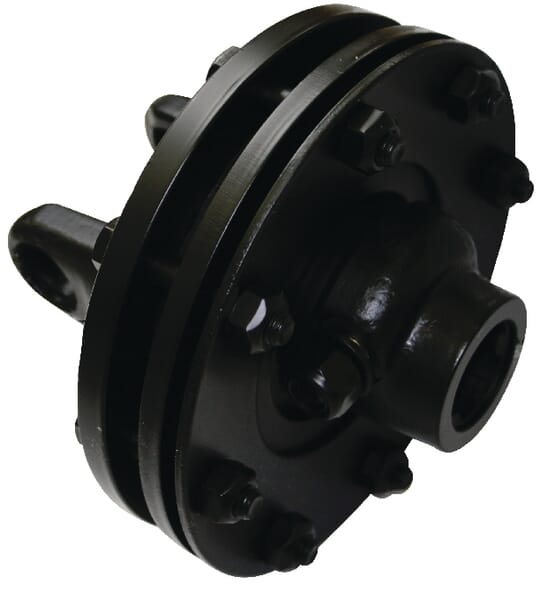

Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Low space requirement, Torque retention, Smooth transition |
| Clutch type code | FV32 |
| Connection locking type | Clamp cone |
| Cross cap diameter | 27 mm |
| Cross length | 74.6 mm |
| Details | Compact design, No power interruption, Absorb peak loads for short periods |

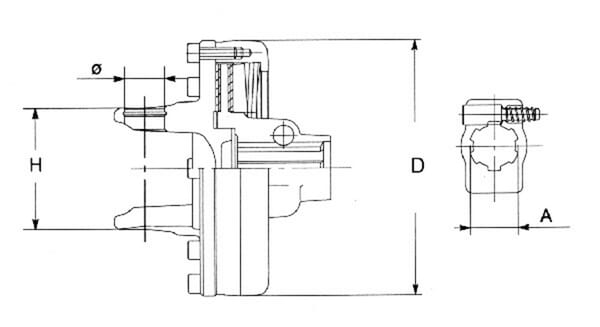

| DOutside diameter | 180 mm |
| HMounting holes distance | 84 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Max static torque | 1000 N·m |
| ØMounting holes circle diameter | 27 mm |
| Original number equivalent | 661E44203R |
| Properties | Regardless of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | 4, S4, G4 |
| Suitable for machine/vehicle brand | n/a |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7700 g |
| Dimensions | 270 × 205 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000156841
Bondioli&Pavesi Clutch FV32 1000Nm 661G44203R
£400.90 excl.
£481.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144901

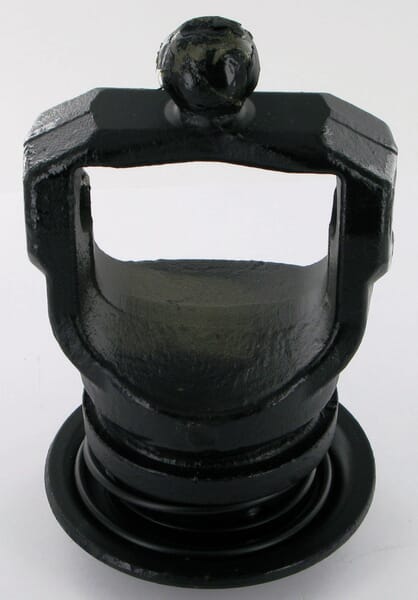

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 4 Bondioliand Pavesi 573040382
