£1,226.91
excl. VAT
£1,472.29 incl. VAT
£1,472.29
incl. VAT
£1,226.91 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Benefits | Drive security device, No time lost in restoring torque |
|---|---|
| Clutch type code | LR24 |
| Connection locking type | Clamp bolt (interfering) |
| Cross cap diameter | 30.2 mm |
| Cross length | 91.4 mm |
| Details | Drive interrupted on overload., Automatically switches on at lower speed. |
| Direction of rotation | Right |
| DOutside diameter | 151 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Max dynamic torque | 260 N·m |
| Max. rotation speed | 1000 r/min |
| Max static torque | 2600 N·m |
| Original number equivalent | 6WHE66003R |
| Properties | 1 direction of rotation |
| Shaft size code | 6, G7, S7, H7 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Torque can be set to pulsing by reducing the speed |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12000 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
BPA000109852
Bondioli&Pavesi Taper pin 1-3/4z6-z20 408000046R02
£10.78 excl.
£12.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000094973
Bondioli&Pavesi Belleville 3,0mm 367003620
£48.02 excl.
£57.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000066926
Bondioli&Pavesi Guard cone WW-80° S8/H8 2190L0121
£137.78 excl.
£165.34 incl.
In stock
Expected to ship on Friday 18 September
BPA000094974
Bondioli&Pavesi Belleville 3,30mm 367005860
£52.15 excl.
£62.58 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067901
Bondioli&Pavesi Yoke, Profile tube, 45.6mm, S2 Bondioliand Pavesi 2150C6871
£204.60 excl.
£245.52 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000039343
Bondioli&Pavesi Profile tube outer triangular 1/G1 diameter in: 27.3 diameter out: 32.5x2.6mm L: 3m Bondioliand Pavesi 125033000R06
£207.03 excl.
£248.44 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000231532

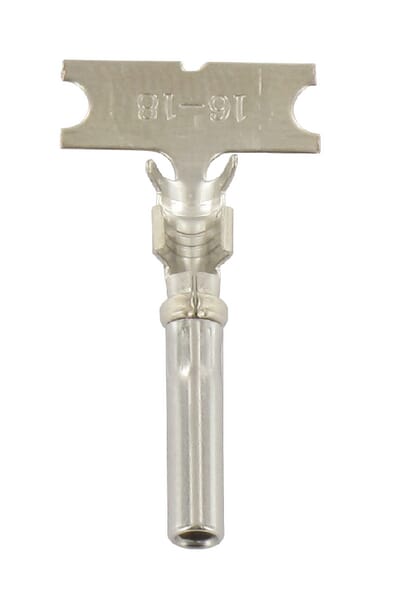

TE Connectivity DEUTSCH Contact pin male DS16 female AMH1062160122
£0.42 excl.
£0.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000039464
Kramp Oil seal 125x150x12mm type:CC DIN 3760 10x 12515012CCP010
£81.90 excl.
£98.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000011416

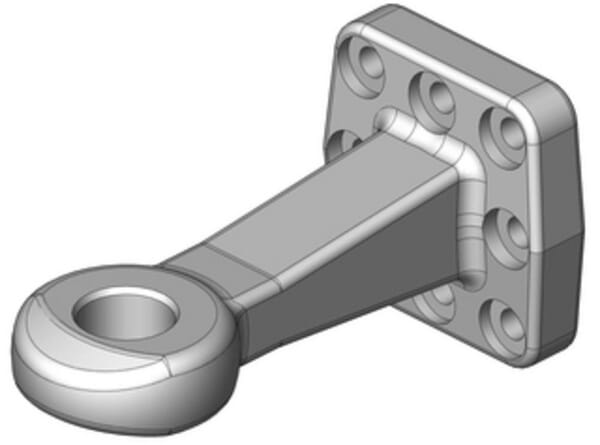

Scharmüller Towing Eye diameter 50mm LKW 110x100 ISO 1102 (VO_208_2015) 00652320A90
