£1,032.47
excl. VAT
£1,238.96 incl. VAT
£1,238.96
incl. VAT
£1,032.47 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Crop sprayers, Slurry tankers, Manure spreader, Windrowers, Hay, Silo mill |
|---|---|
| Attachment machine side | Shear bolt clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Connection outside diameter machine side inch and splines | 1.3/4-20 |
| Connection outside diameter tractor side inch and splines | 1.3/4-20 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 34.9 mm |
| Cross joint length by machine side | 106 mm |
| Cross joint length by tractor side | 106 mm |
| Details | PTO shaft with integrated shear pin clutch |
| Inner tube large outside diameter | 58.5 mm |
| Inner tube wall thickness | 4.5 mm |
| Length | 1310 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 3500 N·m |
| Outer tube large outside diameter | 66 mm |
| Outer tube wall thickness | 3.5 mm |
| Power 1000 rpm | 122 kW |
| Power 540 rpm | 81 kW |
| Profile tube shape | 4 Corners |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | S9 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1000 g |
| Dimensions | 131 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000192603
Bondioli&Pavesi Driveshaft with shearbolt clutch 8G7N141CER07008X
£463.81 excl.
£556.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000179894

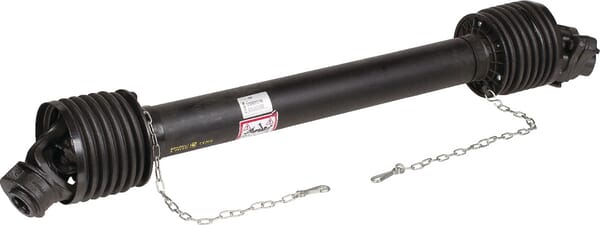

Bondioli&Pavesi Driveshaft with shearbolt clutch 7G9N101CER071R1
£691.19 excl.
£829.43 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000179873
Bondioli&Pavesi Driveshaft with shearbolt clutch 7G7N086CE0071R4
£513.21 excl.
£615.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248173
Bondioli&Pavesi Driveshaft with shearbolt clutch CS9N121CE0071R5
£839.61 excl.
£1,007.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000150920

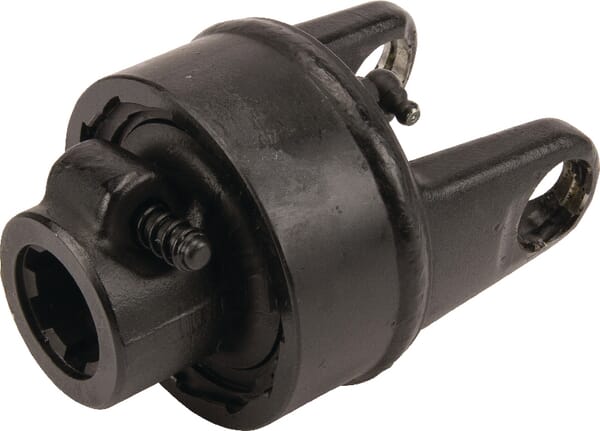

Bondioli&Pavesi RA1 BG4 left 1-3/8Z6 freewheel 602104701R
£280.08 excl.
£336.10 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000144925

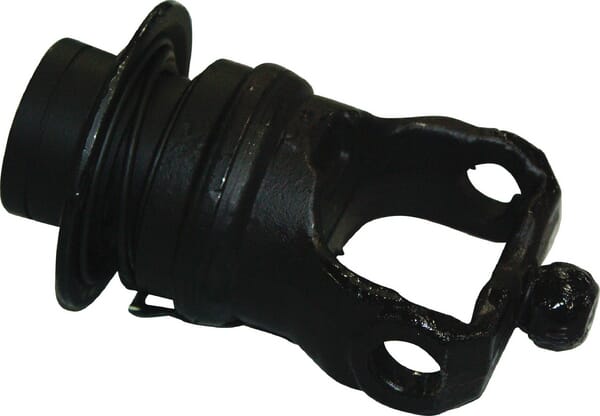

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-21 spline, 8/G8/S8/H8 Bondioliand Pavesi 5730L3791
£354.43 excl.
£425.32 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000198810
Kramp Hexagon head bolt DIN931 M8x80 stainless steel A4 931880RVSA4
£0.86 excl.
£1.04 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000069610
Kramp Oil seal 24x32x5mm type:CB DIN 3760 1x 24325CBP001
£2.78 excl.
£3.34 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000139591
Kramp Oil seal 53x80x10mm type:CB DIN 3760 1x 538010CBP001
£6.06 excl.
£7.27 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000202346

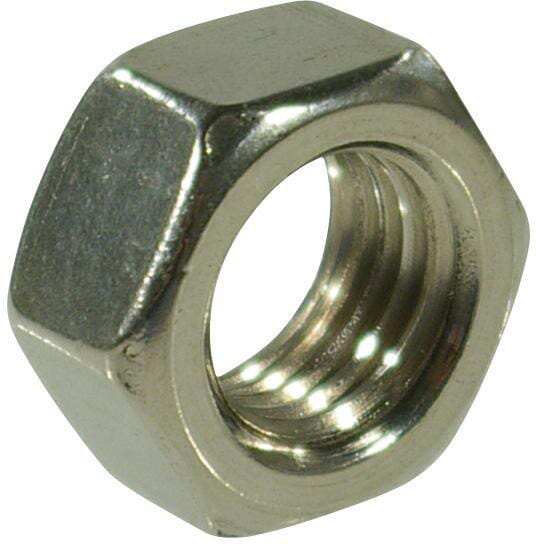

Kramp Hexagon nut DIN934 M16x2.00 stainless steel A4 93416RVSA4P025
£0.81 excl.
£0.97 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000109603
Kramp Oil seal 40x56x7mm type:CC DIN 3760 1x 40567CCP001
£1.94 excl.
£2.33 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000144677

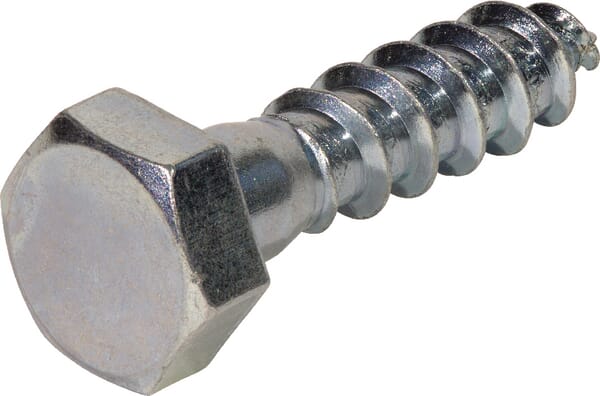

Kramp Wood screw 7x50mm, 12mm hex head, DIN 571 571750P100
£0.13 excl.
£0.16 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000203809

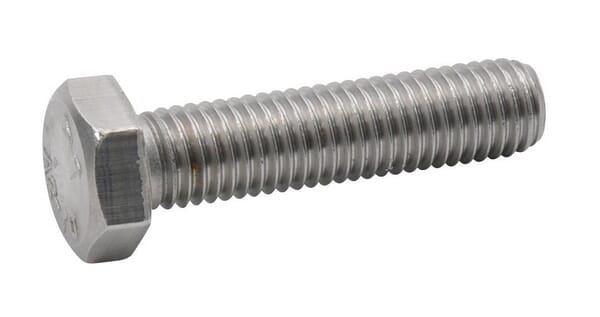

Kramp Hexagon head bolt DIN933 M4x25 stainless steel A2 933425RVSP050
£0.09 excl.
£0.11 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000403534

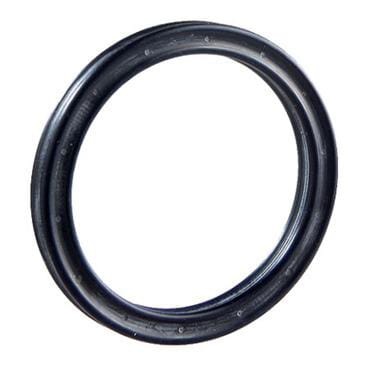

Kramp X-ring 28.17x3.53mm 75 shore Viton XR2817353VP001
£3.93 excl.
£4.72 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000301027

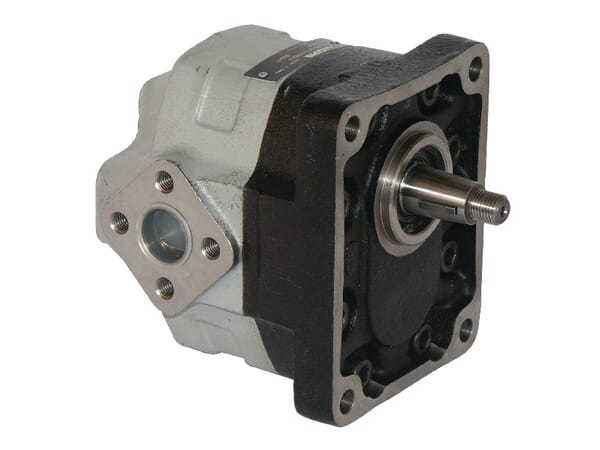

Casappa Gear motor KM30.34R0-83-E3-LEB/ED-N-C4 (AGR) KM3034L083E3
