£691.19
excl. VAT
£829.43 incl. VAT
£829.43
incl. VAT
£691.19 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Crop sprayers, Slurry tankers, Manure spreader, Windrowers, Hay, Silo mill |
|---|---|
| Attachment machine side | Shear bolt clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 34.9 mm |
| Cross joint length by machine side | 106 mm |
| Cross joint length by tractor side | 106 mm |
| Details | PTO shaft with integrated shear pin clutch |
| Inner tube large outside diameter | 54 mm |
| Inner tube wall thickness | 4 mm |
| Length | 1010 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 3500 N·m |
| Outer tube large outside diameter | 63 mm |
| Outer tube wall thickness | 4 mm |
| Profile tube shape | Triangular |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | G9 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 28000 g |
| Dimensions | 160 × 160 × 128 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000248173
Bondioli&Pavesi Driveshaft with shearbolt clutch CS9N121CE0071R5
£839.61 excl.
£1,007.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000192603
Bondioli&Pavesi Driveshaft with shearbolt clutch 8G7N141CER07008X
£463.81 excl.
£556.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000179873
Bondioli&Pavesi Driveshaft with shearbolt clutch 7G7N086CE0071R4
£513.21 excl.
£615.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000250257
Bondioli&Pavesi Driveshaft with shearbolt clutch DS9N131CER101S5
£1,032.47 excl.
£1,238.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248150

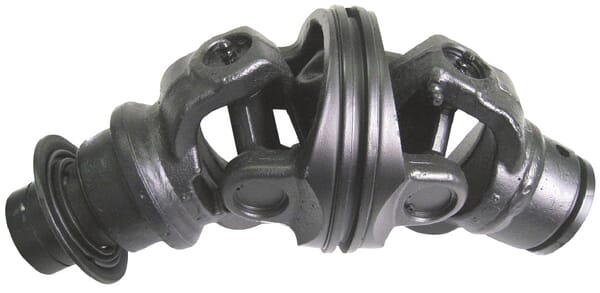

Bondioli&Pavesi Wide angle yoke 50° CS8GKK49KR7
£1,058.23 excl.
£1,269.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000066905

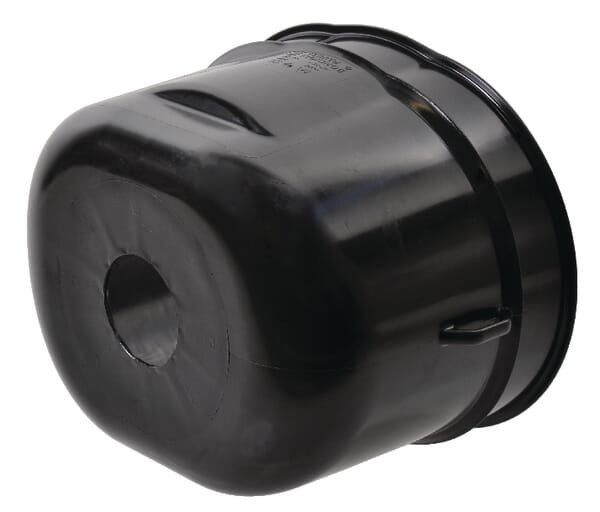

Bondioli&Pavesi Guard cone ov. B=230:250 L 21904CE
£14.47 excl.
£17.36 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
Free shipping
BPA000388739
Vogel & Noot Chisel shares LH WXHM43 C+ V and N VNRLK200124AH
£162.68 excl.
£195.21 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000198535
Kramp Hexagon head bolt DIN931 M5x60 steel zinc-plated 8.8 931560
£0.14 excl.
£0.17 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000305431
Rittal Terminal box KX 400mm x 400mm x 120mm Steel KX1511000
£121.50 excl.
£145.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000041011
Kramp Washer M16x30x3mm, Steel Zinc-plated DIN 125a 125A16
£0.07 excl.
£0.08 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000202002
Kramp Hexagon head bolt DIN933 M6x30 steel zinc-plated 8.8 933630
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000266276
Gaspardo Ball valve G1/2 F-F PN500 F03150575R
£79.29 excl.
£95.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326566
FAG Cylindrical roller bearing 35x72x23mm INA/FAG NUP2207ETVP2
£80.80 excl.
£96.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000041642
Kramp Spring lock washer M16x27.4x3.5mm, Steel Zinc-plated DIN 127b 127B16
£0.06 excl.
£0.07 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000077160
Kramp Oil seal 25x38x10mm type:CC DIN 3760 1x 253810CCP001
£1.51 excl.
£1.81 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000201221
Kramp Oil seal 95x130x13mm type:CC DIN 3760 1x 9513013CCP001
£8.07 excl.
£9.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000209232

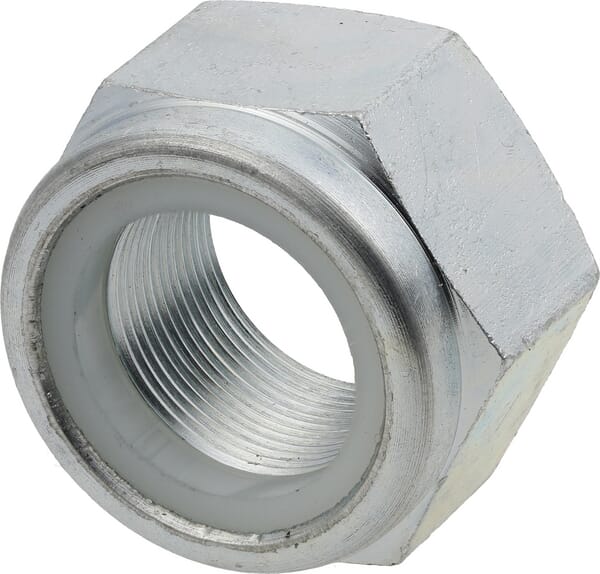

Kramp Hexagon Lock Nut DIN985 M30x1.50 steel zinc-Plated Class 10 985301510
