Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |

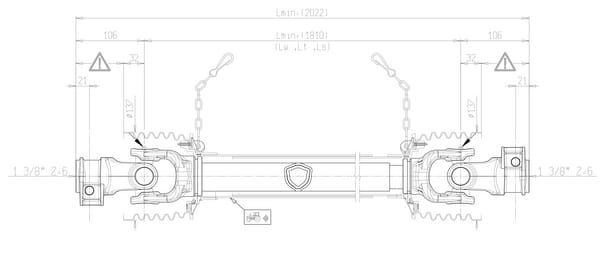

| Length | 1810 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Properties | CE marking available |
| Size code | G4 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18000 g |
| Dimensions | 2100 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000248121
Bondioli&Pavesi Wide-angle joint S6 CS6GWW49WR7
£897.71 excl.
£1,077.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000094972
Bondioli&Pavesi Belleville 3,5mm 367001620
£40.73 excl.
£48.88 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144801
Bondioli&Pavesi Yoke, Quick disconnect, 1-3/8"-6 spline, S9 Bondioliand Pavesi 5720M0351
£156.64 excl.
£187.97 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000148279
Bondioli&Pavesi Safety Guard 5CG9121FXSS
£139.83 excl.
£167.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000038976
Bondioli&Pavesi Profile tube outer SFT SH/S0 diameter in: 62.2 diameter out: 70.2x4mm L: 1m Bondioliand Pavesi 122131000R06
£180.07 excl.
£216.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000039342
Bondioli&Pavesi Profile tube outer triangular 1/G1 diameter in: 27.3 diameter out: 32.5x2.6mm L: 1m Bondioliand Pavesi 125031000R06
£71.39 excl.
£85.67 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000237381

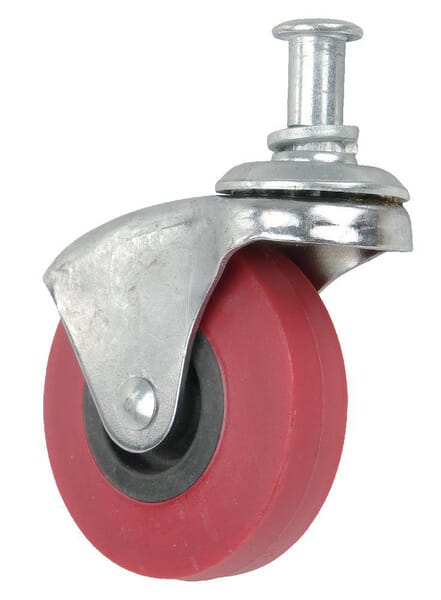

Unbranded Caster wheel swivel, rubber wheel: diameter 63, metal stem with circlip BE25002
