£375.30
excl. VAT
£450.36 incl. VAT
£450.36
incl. VAT
£375.30 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Slurry tank, Chemical fertiliser spreaders, Cutter bar, Small floor grinders, Seeders |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Length | 860 mm |
| Power 1000 rpm | 42 kW |
| Power 540 rpm | 28 kW |
| Properties | CE marking available |
| Size code | S4 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12300 g |
| Dimensions | 1100 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000192593

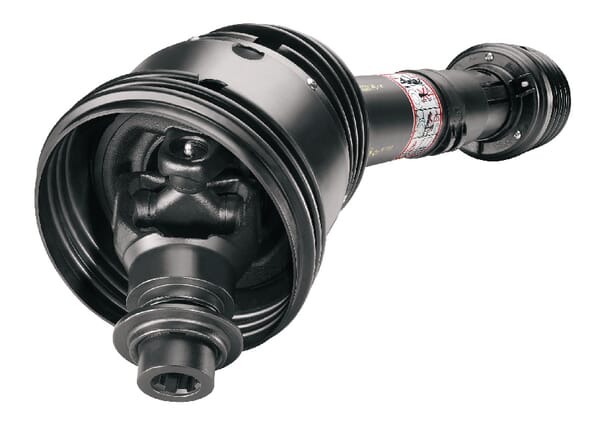

Bondioli&Pavesi Wide-angle shaft 8G4R161CEWR7007
£1,028.60 excl.
£1,234.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000241134
Bondioli&Pavesi PTO shaft S0 L 1010mm, Bondiol CE0N101CER10R10
£1,143.17 excl.
£1,371.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000065896

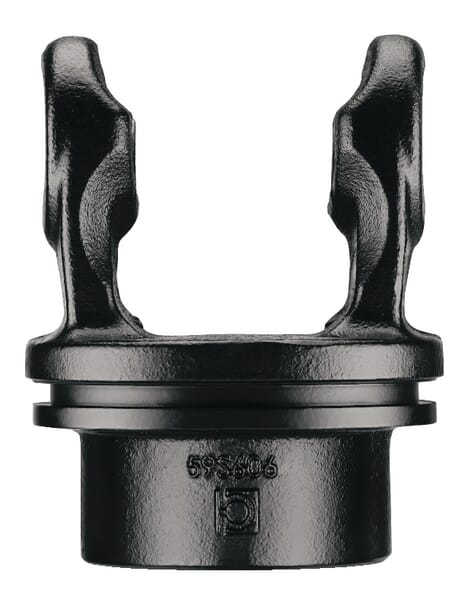

Bondioli&Pavesi Yoke, profile tube, 66mm, H8 Bondioliand Pavesi 2040L6869
£107.21 excl.
£128.65 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000144810
Bondioli&Pavesi Yoke, quick disconnect, 1-3/4"-6 spline, SH Bondioliand Pavesi 5720N0452
£343.20 excl.
£411.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067438

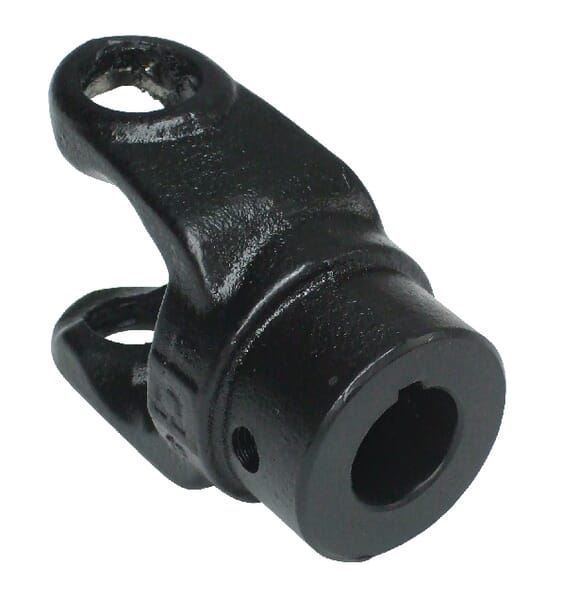

Bondioli&Pavesi Yoke, Hub, 25mm, 2/G2/S2 Bondioliand Pavesi 2120C6155
