Product details
| Application range | Big balers, Wood shredders, Loader wagons, Spreaders, Slurry tankers |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/4-20 |
| Connection outside diameter tractor side inch and splines | 1.3/4-20 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint length by machine side | 130 mm |
| Cross joint length by tractor side | 130 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |

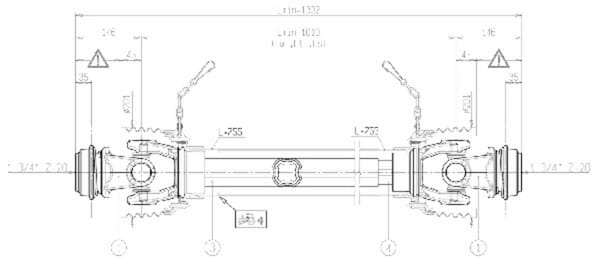

| Length | 1010 mm |

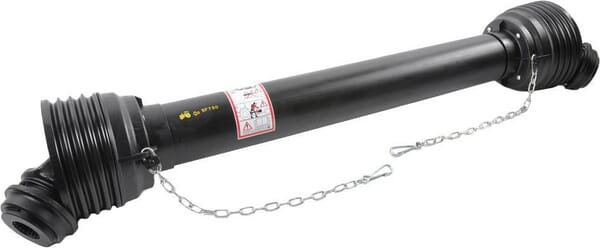

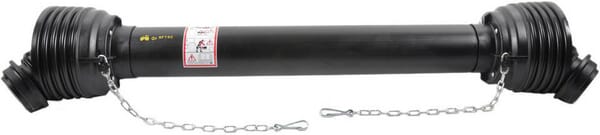

| Long description | PTO shafts - SFT, Series S0 |
| Power 1000 rpm | 187 kW |
| Power 540 rpm | 124 kW |
| Product details | Big balers, Wood shredder, Loader wagon, Spreader, Slurry tanker, PTO shaft with guard, Declaration of conformity, User instructions, Square profile tube for maximum torsion rigidity, Torque is distributed evenly over the wide contact surfaces, Lubrication intervals of up to 50 hours, Provided with "CE" marking, Observe Bondioli & Pavesi user instructions, Power values at bending angle 5° and service life 1000 hours |
| Properties | CE marking available |
| Pros | Low shear resistance, Less wear, Highly durable |
| Size code | S0 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 38620 g |
| Dimensions | 1300 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000141942
Bondioli&Pavesi Yoke, quick disconnect, 1-3/4"-6 spline, SH Bondioliand Pavesi 5730N0491
£358.07 excl.
£429.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000237963
Bondioli&Pavesi BYPY small starter set BYPYSET1
£2,773.74 excl.
£3,328.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000066911

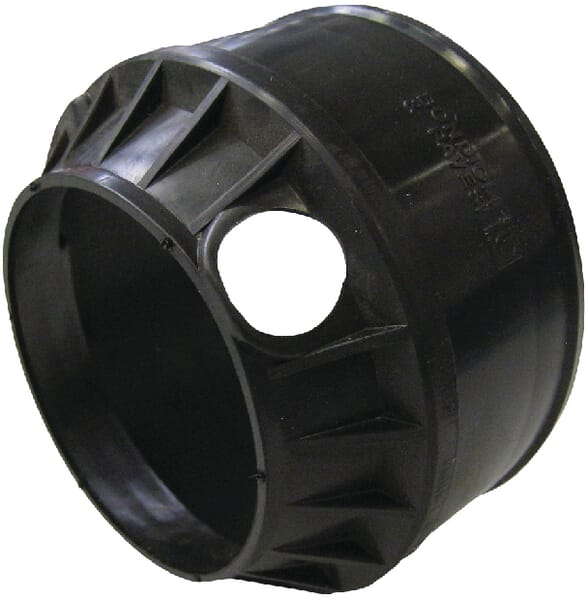

Bondioli&Pavesi Guard cone, Wide-angle (6M1) 219060003
