£454.46
excl. VAT
£545.35 incl. VAT
£545.35
incl. VAT
£454.46 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Slurry tank, Chemical fertiliser spreaders, Cutter bar, Small floor grinders, Seeders |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 79.4 mm |
| Cross joint length by tractor side | 79.4 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Length | 1210 mm |
| Power 1000 rpm | 55 kW |
| Power 540 rpm | 37 kW |
| Properties | CE marking available |
| Size code | S5 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19000 g |
| Dimensions | 1500 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
BPA000133333
Bondioli&Pavesi Guard cone inner standard Size 4 517040023
£54.14 excl.
£64.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000083256
Bondioli&Pavesi Cover gearbox S2020 298609400R
£20.41 excl.
£24.49 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000162734

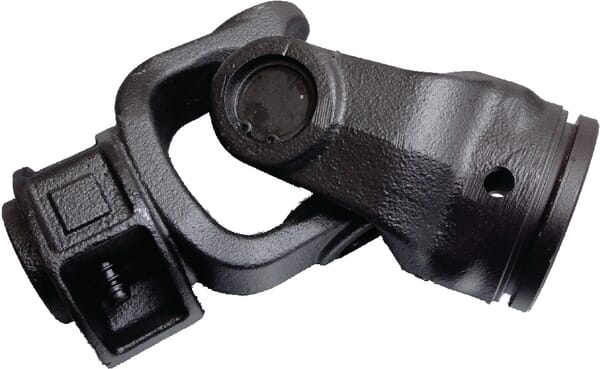

Bondioli&Pavesi Joint Size:4 outer 71G4049007
