£559.41
excl. VAT
£671.29 incl. VAT
£671.29
incl. VAT
£559.41 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Loader wagons, Round balers, Big baler, Loader wagons, Rotary tillers |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |

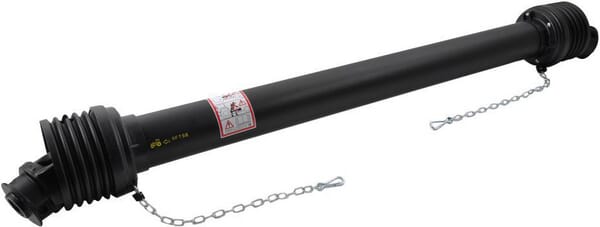

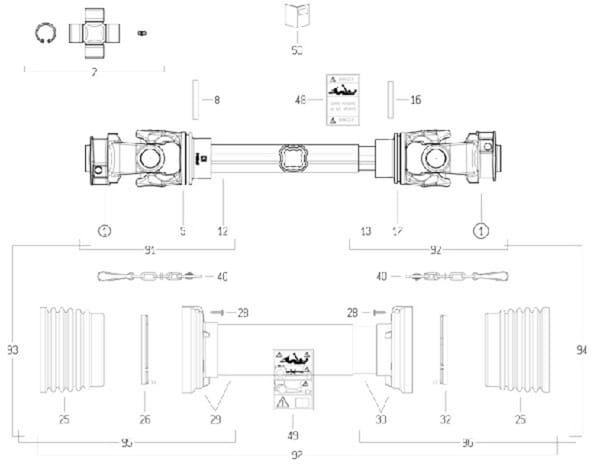

| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 34.9 mm |
| Cross joint length by machine side | 93.5 mm |
| Cross joint length by tractor side | 93.5 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |

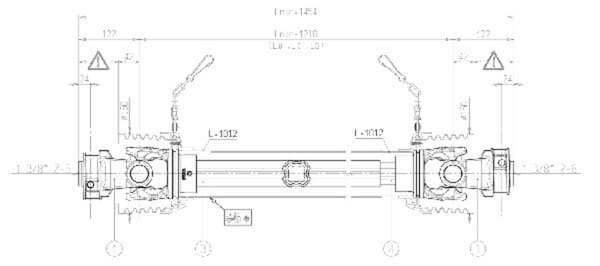

| Length | 1210 mm |
| Power 1000 rpm | 100 kW |
| Power 540 rpm | 66 kW |
| Properties | CE marking available |
| Size code | S8 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 25150 g |
| Dimensions | 1450 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000250417
Bondioli&Pavesi Driveshaft SFT SK DSKP137CE000001
£2,625.23 excl.
£3,150.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000160447

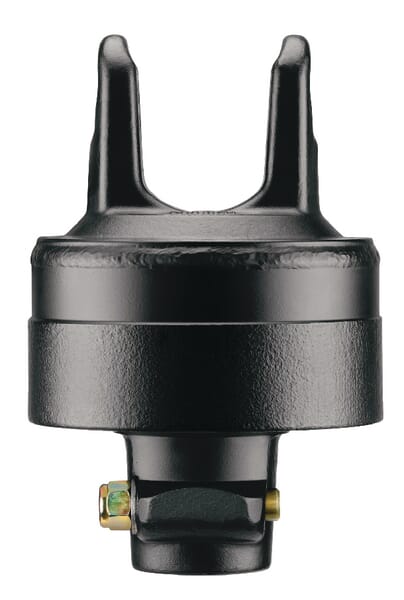

Bondioli&Pavesi Coupling LR24 2500NM 1 3/4Z6 6WLE65004R
