£435.49
excl. VAT
£522.59 incl. VAT
£522.59
incl. VAT
£435.49 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

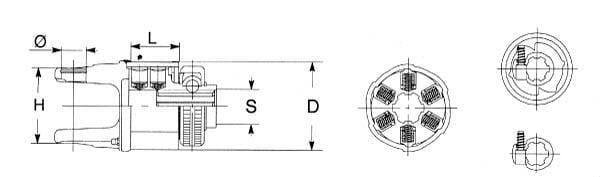

Product details
| Clutch type code | SA4 |
|---|---|
| Connection locking type | Collar lock |
| Cross cap diameter | 30.2 mm |
| Cross length | 91.4 mm |
| Direction of rotation | Right |
| DOutside diameter | 115 mm |
| HMounting holes distance | 103 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 235 mm |
| Max dynamic torque | 160 N·m |
| Max static torque | 1600 N·m |
| Original number equivalent | 615456501R |
| Shaft size code | 6, G7, S7, H7 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | One-way ratchet torque limiters SA permit higher, settings compared to symmetrical units with, an equal number of ratchets. When rotated, opposite the normal working direction, oneway, ratchet torque limiters transmit only, 15% of the torque setting. |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6708 g |
| Dimensions | 235 × 100 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144920
Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-6 spline, 8/G8/S8/H8 Bondioliand Pavesi 5730L0384
£305.65 excl.
£366.78 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000250259

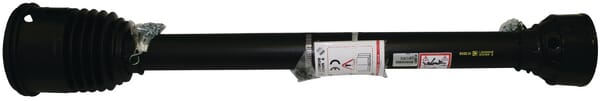

Bondioli&Pavesi PTO shaft Wide angle S9 DS9R121CEW00003
£1,261.26 excl.
£1,513.51 incl.
In stock
Expected to ship on Friday 18 September
BPA000071677
Bondioli&Pavesi Safety guard I.Gr.1.2 L=1044 236651044
£43.59 excl.
£52.31 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000148249

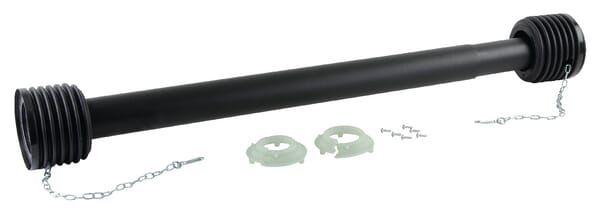

Bondioli&Pavesi Protection complete GR. G1 5CG1086FXSS
£96.15 excl.
£115.38 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000179852
Bondioli&Pavesi PTO shaft G4 L: 860mm with overrunning clutch, Bondioliand Pavesi 7G4N086CE007096
£471.70 excl.
£566.04 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000179888

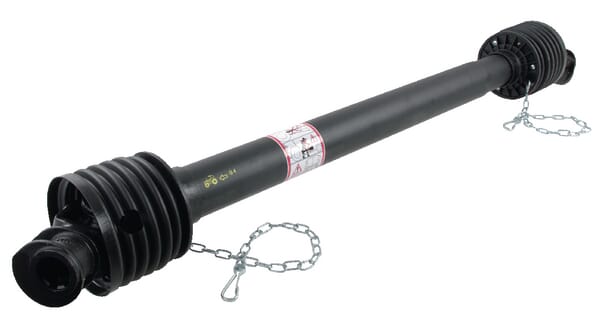

Bondioli&Pavesi PTO shaft G8 L: 1210mm, Bondioliand Pavesi 7G8N121CE007007
