£283.59
excl. VAT
£340.31 incl. VAT
£340.31
incl. VAT
£283.59 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

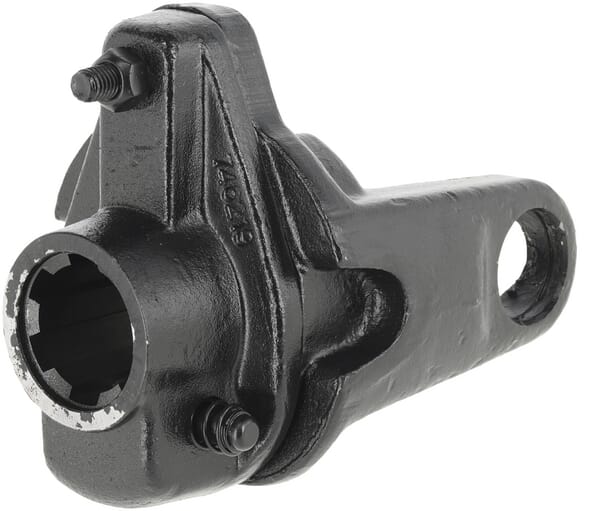

Product details
| Application range | Fertiliser pump, Shredder, Light balers |
|---|---|
| Benefits | Prevents against subsequent damage, Easy to start up |
| Clutch type code | LB |
| Details | Drive fully disconnected, Repairable by replacing a shear bolt |
| Locking type by machine side | Clamp cone |
| Max static torque | 2700 N·m |
| Properties | Regardless of direction of rotation, Power transmission via shear bolts |
| Shaft size code | S5, S6, G5 |
| Share bolts circle radius | 55 |
| Share bolts thread diameter | M10 |
| Share bolts thread length | 50 |
| Shear bolts quality | 8.8 (steel) |
| Shear bolts thread pitch | 1.50 mm |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4308 g |
| Dimensions | 160 × 140 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000152533
Bondioli&Pavesi Shear bolt clutch S5/S6/G5 2700Nm 6060G3701R
£305.21 excl.
£366.25 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000152526
Bondioli&Pavesi Shear bolt clutch S5/S6/G5 2700Nm 6060G0301R
£264.33 excl.
£317.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000077363

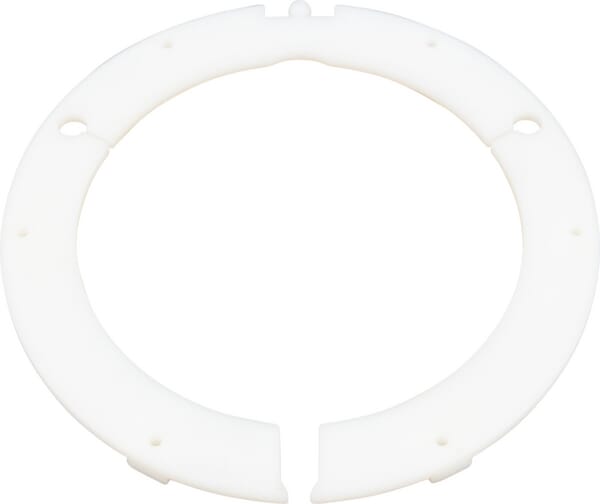

Bondioli&Pavesi Guide ring 2550G0015R02
£21.02 excl.
£25.22 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000192605
Bondioli&Pavesi Wide angle cardan shaft G7 without end yoke 8G7R121CEW00001
£848.58 excl.
£1,018.30 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000066888

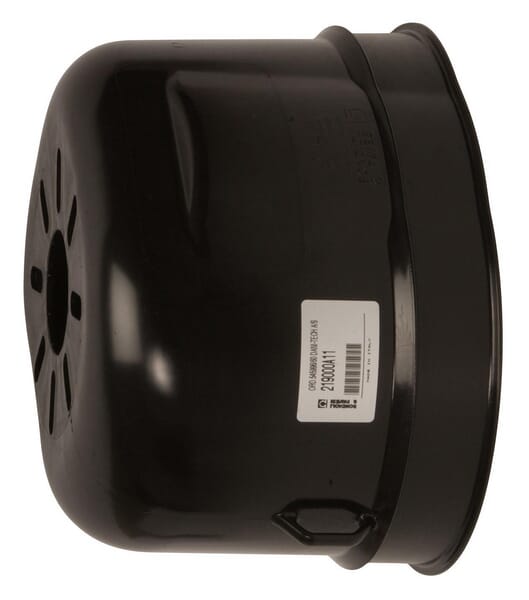

Bondioli&Pavesi Guard cone 219000A11CE
