£305.21
excl. VAT
£366.25 incl. VAT
£366.25
incl. VAT
£305.21 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Fertiliser pump, Shredder, Light balers |
|---|---|
| Benefits | Prevents against subsequent damage, Easy to start up |
| Clutch type code | LB |
| Connection outside diameter machine side inch and splines | 1.3/8-21 |
| Details | Drive fully disconnected, Repairable by replacing a shear bolt |
| Locking type by machine side | Clamp cone |
| Max static torque | 2700 N·m |
| Properties | Regardless of direction of rotation, Power transmission via shear bolts |
| Shaft size code | S5, S6, G5 |
| Share bolts circle radius | 55 |
| Share bolts thread diameter | M10 |
| Share bolts thread length | 50 |
| Shear bolts quality | 8.8 (steel) |
| Shear bolts thread pitch | 1.50 mm |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4202 g |
| Dimensions | 140 × 100 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping

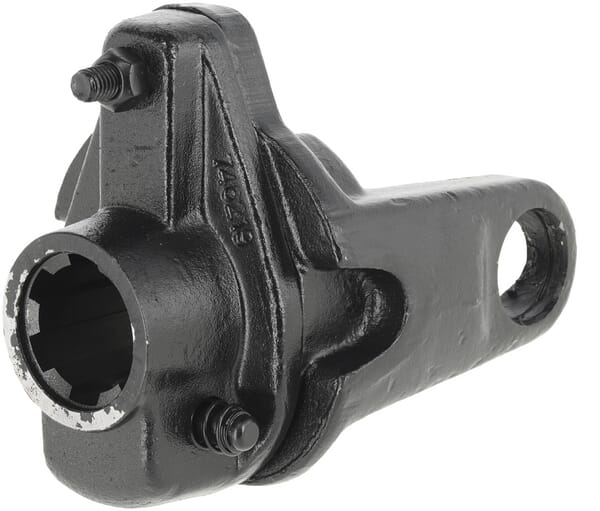

BPA000152526
Bondioli&Pavesi Shear bolt clutch S5/S6/G5 2700Nm 6060G0301R
£264.33 excl.
£317.20 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000152531
Bondioli&Pavesi Shear bolt clutch S5/S6/G5 2700Nm 6060G0401R
£283.59 excl.
£340.31 incl.
In stock
Expected to ship on Monday 21 September

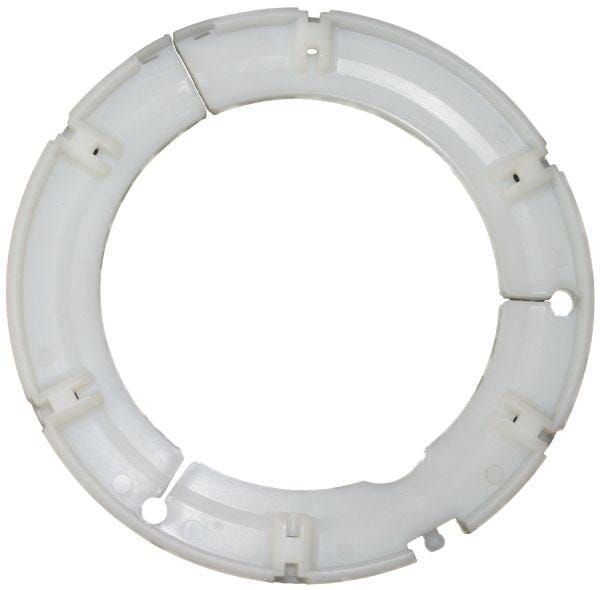

BPA000077362
Bondioli&Pavesi Bearing ring SFT003-S6 WW80° 2550G0007R02
£37.15 excl.
£44.58 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000156976

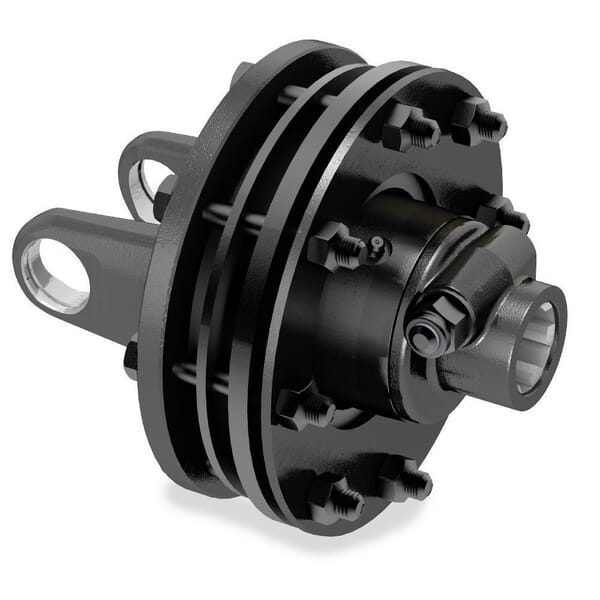

Bondioli&Pavesi Friction clutch FNV44 G8/S8 1800Nm 665L58203R
£950.83 excl.
£1,141.00 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

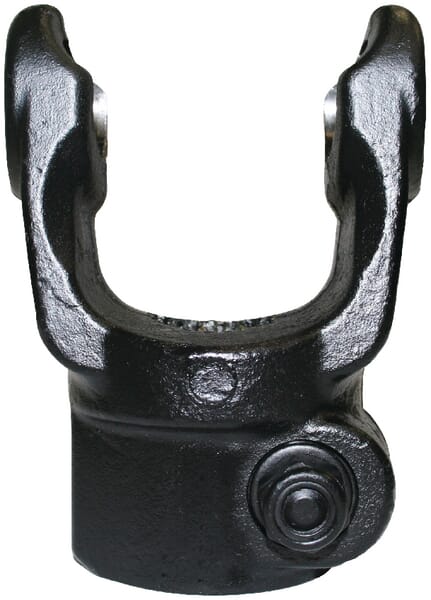

BPA000130593
Bondioli&Pavesi Yoke, clamp bolt, 1-3/4"-20 spline, 8/S9 Bondioliand Pavesi 5090M3860
£168.84 excl.
£202.61 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

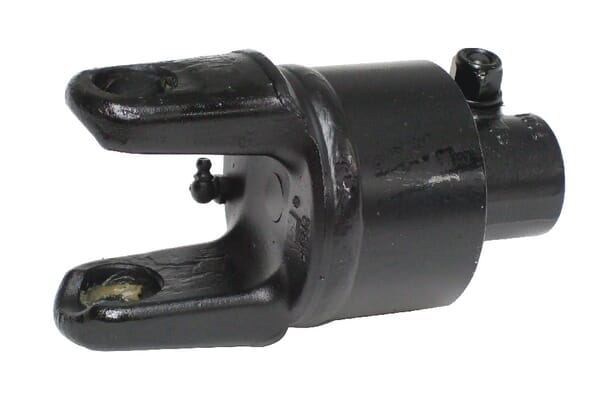

BPA000151956
Bondioli&Pavesi Overrunning clutch RA2-L G5/S5/S6 602205601R
£377.95 excl.
£453.54 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000305121
Kramp Trousers, UK:14, L, 33-37"/L32", charcoal Kramp Active KW502445011098
£50.99 excl.
£61.19 incl.
In stock
Expected to ship on Monday 21 September
BPA000041381
Kramp Oil seal 1/2x7/8x1/4" type:CB DIN 3760 1x 1272222635CBP001
£1.44 excl.
£1.73 incl.
In stock
Expected to ship on Monday 21 September
BPA000306117
Kramp Ball valve BSP fem./male 1 1/4"+SS handle KS114MKR
£28.21 excl.
£33.85 incl.
In stock
Expected to ship on Monday 21 September
BPA000062864
Kramp Oil seal 200x230x15mm type:CB DIN 3760 1x 20023015CBP001
£24.13 excl.
£28.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153643
FAG Deep groove ball bearing 35x80x21mm INA/FAG 6307ZZ
£15.54 excl.
£18.65 incl.
In stock
Expected to ship on Monday 21 September
BPA000199757
Kramp Hexagon head bolt DIN931 M16x180 stainless steel A2 93116180RVSP001
£5.90 excl.
£7.08 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000086505
FAG Tapered roller bearing 130x230x67.75mm INA/FAG 32226A
£1,116.58 excl.
£1,339.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000215203
Kverneland Hydraulic cylinder Hcx-dw 050-030-0310-0542 A139135894
£555.94 excl.
£667.13 incl.
Backorder available
Usually ships within 3–8 weeks

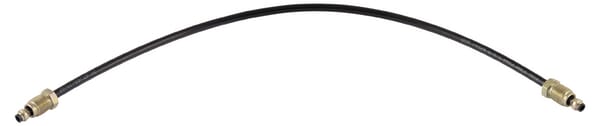

BPA000075051
