£341.68
excl. VAT
£410.02 incl. VAT
£410.02
incl. VAT
£341.68 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Tedders, Rakes, Silo spreaders |
|---|---|
| Benefits | Audible signal on overload, Pulsating power transmission in the event of slipping |
| Clutch type code | SA2 |
| Connection locking type | Collar lock |
| Cross cap diameter | 23.8 mm |
| Cross length | 61.3 mm |
| Details | If slipping through, the clutch begins to rattle, Limits the torque in the event of an overload |

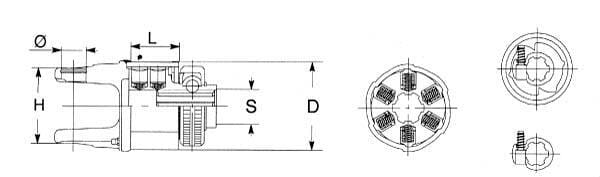

| DOutside diameter | 96 mm |
| HMounting holes distance | 70 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 52 mm |

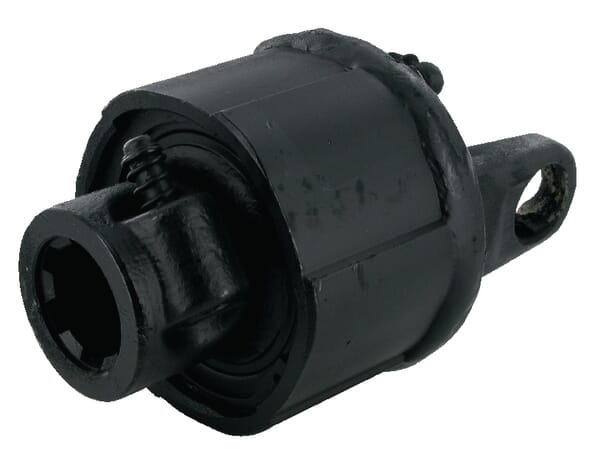

| Long description | Star ratchet / radial pin clutches, series SA-2 |
| Max static torque | 800 N·m |
| ØMounting holes circle diameter | 23.8 mm |
| Original number equivalent | 611239001R |
| Properties | Direction of rotation to the right, Shocks and vibrations, The clutch can only transmit 15% of the set torque to the left |
| Shaft size code | 2, S2, G2 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Force transmission using cam and springs |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3400 g |
| Dimensions | 170 × 105 × 105 mm |
| Dangerous goods | No |
