£1,718.97
excl. VAT
£2,062.76 incl. VAT
£2,062.76
incl. VAT
£1,718.97 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Manure spreader, Mixing wagons, Harvesters, Loader wagons, Round balers |
|---|---|
| Attachment machine side | Automatic clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Clutch type code | LR23 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 91.5 mm |
| Cross joint length by tractor side | 100 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Includes | Low shear resistance, Less wear, Highly durable, Declaration of conformity |
| Length | 1210 mm |
| Long description | PTO shafts - wide-angle 80° tractor side SFT, Series S2 suitable for manure spreaders, feed mixers, harvesters, loader wagons, round balers etc. |
| Max. clutch torque | 2100 N·m |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 40 kW |
| Product details | PTO shaft with guard, User instructions, Lubrication intervals of up to 50 hours, Provided with "CE" marking, Observe Bondioli & Pavesi user instructions, Power values at bending angle 5° and service life 1000 hours |
| Properties | CE marking available |
| Pros | Low shear resistance, Less wear, Highly durable, Square profile tube for maximum torsion rigidity, Torque is distributed evenly over the wide contact surfaces |
| Size code | S6 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 41000 g |
| Dimensions | 1670 × 230 × 230 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000065916
Bondioli&Pavesi Yoke, Profile tube, 63mm, 9 Bondioliand Pavesi 204196851
£163.65 excl.
£196.38 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000038959
Bondioli&Pavesi Profile tube outer SFT H8/S9 diameter in: 59 diameter out: 66x3.5mm L: 1m Bondioliand Pavesi 122111000R06
£166.39 excl.
£199.67 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000250257
Bondioli&Pavesi Driveshaft with shearbolt clutch DS9N131CER101S5
£1,032.47 excl.
£1,238.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144798
Bondioli&Pavesi Yoke, quick disconnect, 1-3/4"-6 spline, 7/G8/S8/H8 Bondioliand Pavesi 5720L0455
£177.54 excl.
£213.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000071693
Bondioli&Pavesi Inner guard tube 236820650
£55.87 excl.
£67.04 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000066922

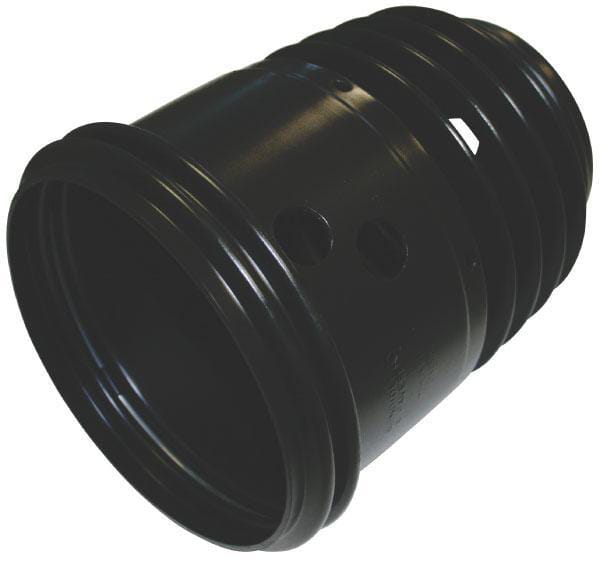

Bondioli&Pavesi Guard cone 2190G0141R
