£1,737.95
excl. VAT
£2,085.54 incl. VAT
£2,085.54
incl. VAT
£1,737.95 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Manure spreader, Mixing wagons, Harvesters, Loader wagons, Round balers |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Low slide resistance, Low wear, Longer service life |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 106 mm |
| Cross joint length by tractor side | 122 mm |
| Details | Square profile tube for maximum torsional stiffness, Torque is evenly distributed over the wide contact surfaces, Extended lubrication intervals of up to 50 hours |
| Includes | Low shear resistance, Less wear, Highly durable, Declaration of conformity |
| Length | 1210 mm |
| Long description | PTO shafts - wide-angle 80° tractor side SFT, Series S2 suitable for manure spreaders, feed mixers, harvesters, loader wagons, round balers etc. |
| Power 1000 rpm | 122 kW |
| Power 540 rpm | 81 kW |
| Product details | PTO shaft with guard, User instructions, Lubrication intervals of up to 50 hours, Provided with "CE" marking, Observe Bondioli & Pavesi user instructions, Power values at bending angle 5° and service life 1000 hours |
| Profile tube shape | 4 Corners |
| Properties | CE marking available |
| Pros | Low shear resistance, Less wear, Highly durable, Square profile tube for maximum torsion rigidity, Torque is distributed evenly over the wide contact surfaces |
| Size code | S9 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 33000 g |
| Dimensions | 1600 × 190 × 190 mm |
| Dangerous goods | No |
You might also like
BPA000077320

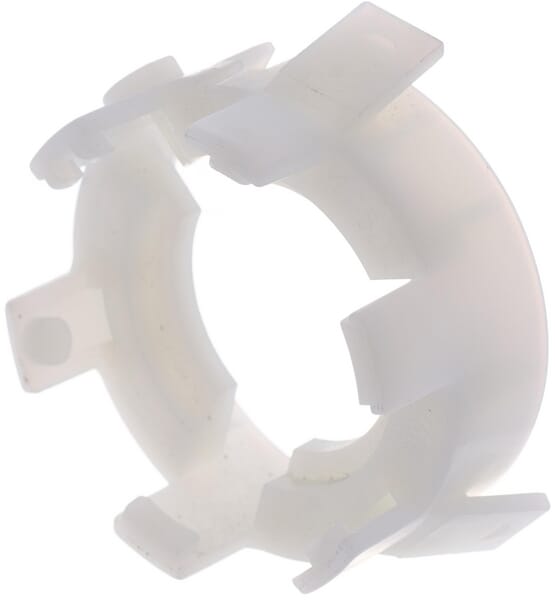

Bondioli&Pavesi Bearing ring inside diameter 34.4 255010006R02
£11.32 excl.
£13.58 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000039458

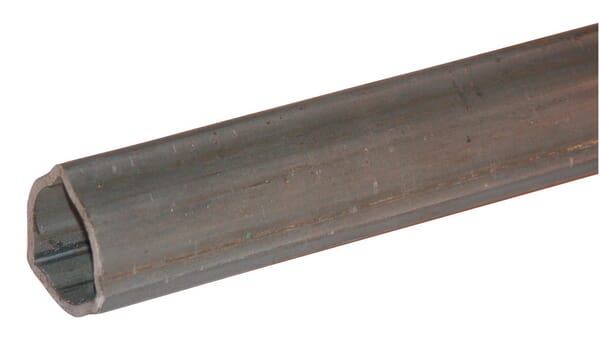

Bondioli&Pavesi Profile tube inner diameter in: 42 diameter out: 54x6mm L: 1m Bondioliand Pavesi 125141000R06
£172.27 excl.
£206.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000156837

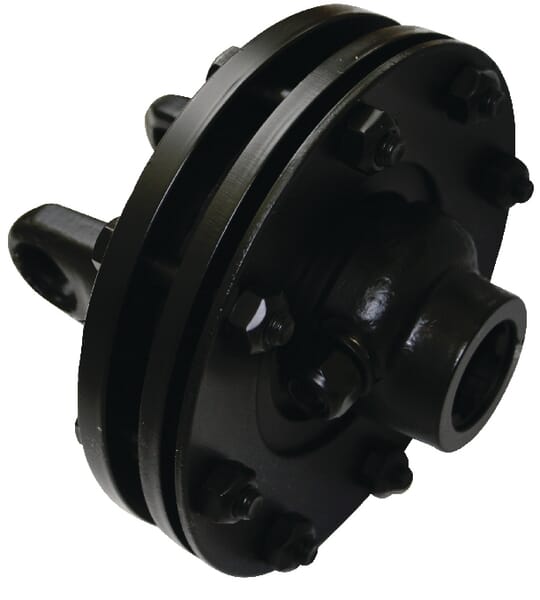

Bondioli&Pavesi Friction clutch FV34 S4/G4 1200Nm 661E46203R
£455.35 excl.
£546.42 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000115236

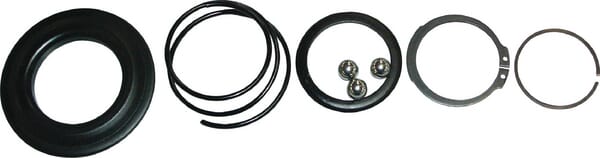

Bondioli&Pavesi Shaft collar kit 435000322R
£72.95 excl.
£87.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000144811

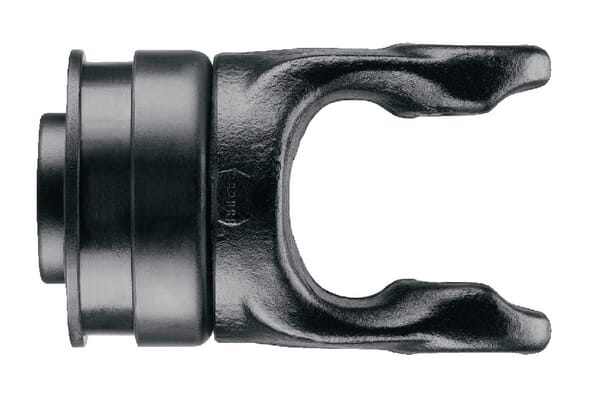

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-21 spline, SH Bondioliand Pavesi 5720N3752
£331.53 excl.
£397.84 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000070319

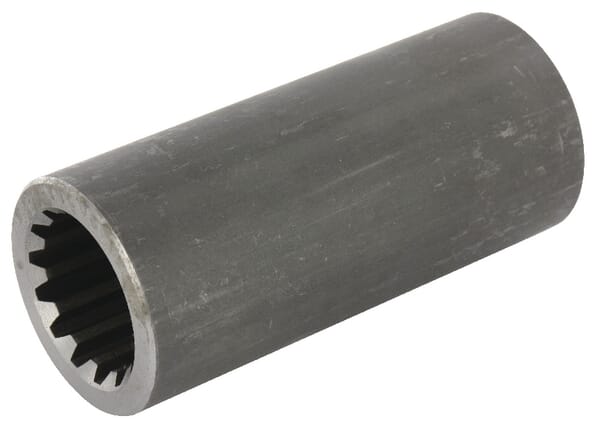

Bondioli&Pavesi Splined hub diameter 40 14-t 226003401
£45.02 excl.
£54.02 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000042981

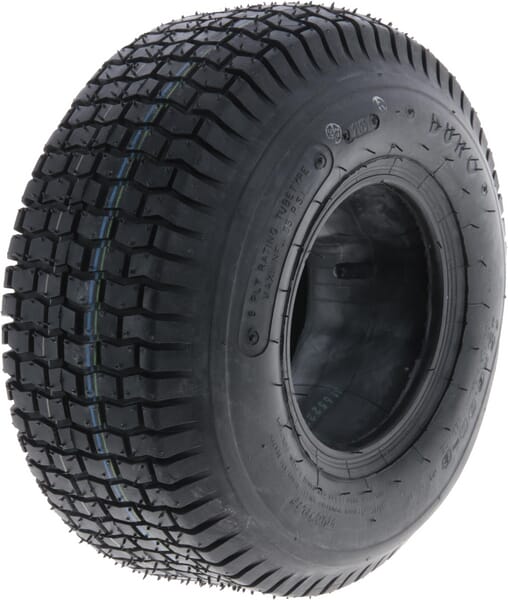

Kramp Tyre and tube 13x5.00-6, 4 Ply, straight valve 1350064T539KR
