Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Low space requirement, Torque retention, Smooth transition |
| Clutch type code | FV34 |
| Connection locking type | Clamp cone |
| Details | Compact design, No power interruption, Absorb peak loads for short periods |
| DOutside diameter | 180 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1200 N·m |
| Properties | Regardless of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | S4, G4 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7668 g |
| Dimensions | 255 × 250 × 230 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000156838
Bondioli&Pavesi Friction clutch FV34 S4/G4 1200Nm 661E48303R
£560.18 excl.
£672.22 incl.
In stock
Expected to ship on Friday 18 September
BPA000077330

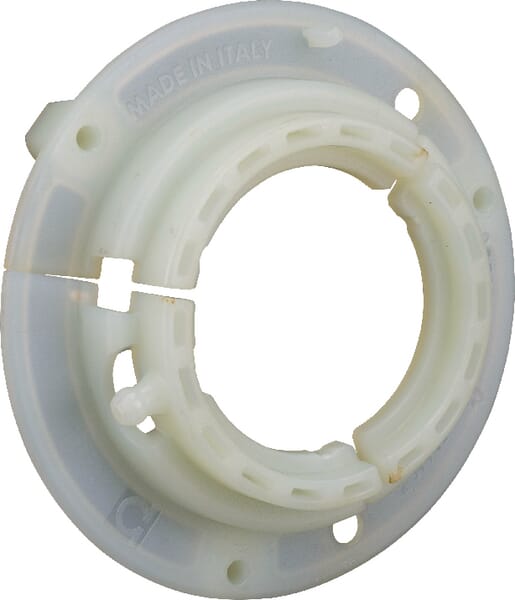

Bondioli&Pavesi Ring outer Global G2 255021002R02
