£1,262.62
excl. VAT
£1,515.15 incl. VAT
£1,515.15
incl. VAT
£1,262.62 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Manure spreader, Mixing wagon, Harvesters, Loader wagons, Round balers |
|---|---|
| Attachment machine side | Shear bolt clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 34.9 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 93.5 mm |
| Cross joint length by tractor side | 106 mm |
| Inner tube large outside diameter | 45.6 mm |
| Inner tube wall thickness | 5.8 mm |
| Length | 1210 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 2700 N·m |
| Outer tube large outside diameter | 54 mm |
| Outer tube wall thickness | 3.7 mm |
| Profile tube shape | Triangular |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | G8 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1000 g |
| Dimensions | 1210 × 20 × 20 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000179860
Bondioli&Pavesi Wide-angle shaft with shearbolt clutch 7G4R121CEWR7098
£894.25 excl.
£1,073.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000108868
Bondioli&Pavesi Cross journal diameter 30.2x99.4mm G6 Bondioliand Pavesi 412060012R24
£71.10 excl.
£85.32 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000152920

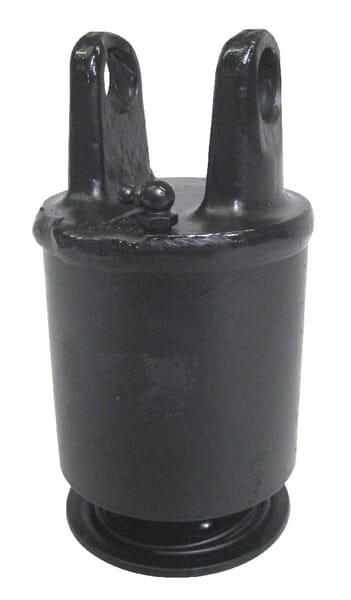

Bondioli&Pavesi Coupling LN4 1200 Nm 60B4G4803R
