£894.25
excl. VAT
£1,073.10 incl. VAT
£1,073.10
incl. VAT
£894.25 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Manure spreader, Mixing wagon, Harvesters, Loader wagons, Round balers |
|---|---|
| Attachment machine side | Shear bolt clutch |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extended lubrication intervals of up to 50 hours, Simple maintenance, Extremely reliable, with a low power-to-weight ratio |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 86 mm |
| Inner tube large outside diameter | 36.6 mm |
| Inner tube wall thickness | 4.3 mm |
| Length | 1210 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 1700 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.1 mm |
| Profile tube shape | Triangular |
| Properties | Enhanced protection concept, Optimised intersection; needle bearings with double-lipped seal rings, Optimum access to all grease nipples, (grease nipples are all positioned along a single line) |
| Size code | G4 |
| Technical info | CE certification |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20000 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
Free shipping

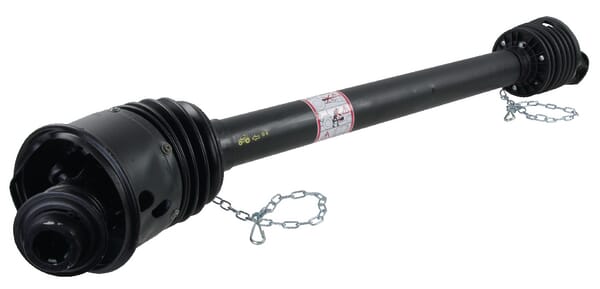

BPA000179891
Bondioli&Pavesi Wide-angle shaft with shearbolt clutch 7G8R121CEWS71R0
£1,262.62 excl.
£1,515.15 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000179883
Bondioli&Pavesi Wide angle PTO shaft G7 L: 860mm, Bondioliand Pavesi 7G7R086CEWQ7007
£904.79 excl.
£1,085.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000071686
Bondioli&Pavesi Outer guard tube 236680676
£46.58 excl.
£55.90 incl.
Backorder available
Usually ships within 3–8 weeks

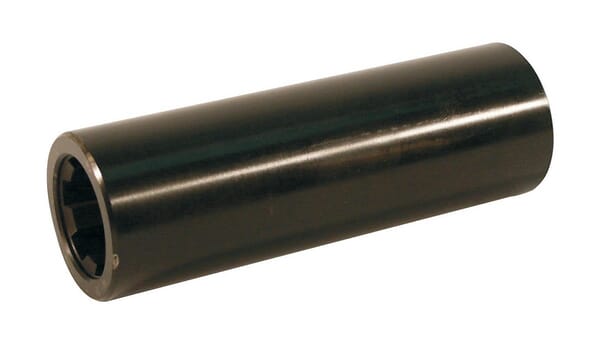

BPA000070315
Bondioli&Pavesi Splined hub 1-3/8z6 L=60 226000304R05
£21.51 excl.
£25.81 incl.
In stock
Expected to ship on Friday 18 September

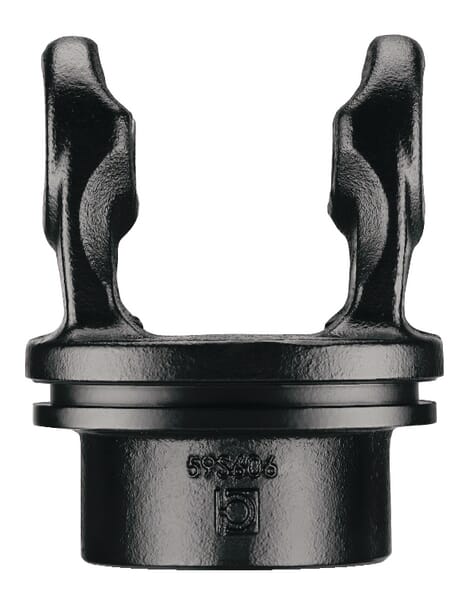

BPA000065893
