£324.56
excl. VAT
£389.47 incl. VAT
£389.47
incl. VAT
£324.56 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Various (agricultural) applications |
|---|---|
| Cross cap diameter | 30.2 mm |
| Cross length | 109 mm |
| DLocking bolt to connection end distance | 40 mm |
| Inside connection diamter inch and splines | 1.3/8-21 |
| Locking bolt to cross bush center distance | 99 mm |
| Locking system | Collar lock |

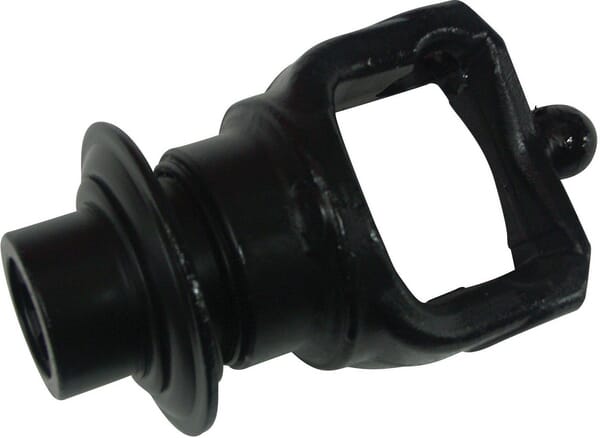

| Long description | Wide-angle yokes with quick lock 80° SFT Series |
| Outside connection diameter | 30.2 mm |

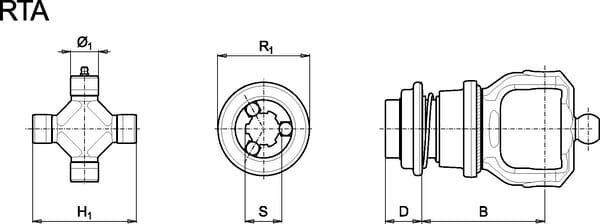

| Product details | Various (agricultural) applications, Metal collar connection, RT model without stopper, RTA model with stopper |
| Properties | Metal collar clip |
| Pros | Various (agricultural) applications |
| Shaft size code | 6 |
| Technical info | 2w |
| Type | Quick disconnect |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2700 g |
| Dimensions | 160 × 160 × 120 mm |
| Dangerous goods | No |
