Product details
| Application range | Fertiliser pump, Shredder, Light balers |
|---|---|
| Benefits | Prevents against subsequent damage, Easy to start up |
| Clutch type code | LB |
| Connection inside diameter by machine side | 32 mm |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Details | Drive fully disconnected, Repairable by replacing a shear bolt |
| Max dynamic torque | 2400 N·m |
| Properties | Regardless of direction of rotation, Power transmission via shear bolts |
| Shaft size code | 5, G5, S5, S6 |
| Share bolts circle radius | 50 |
| Share bolts thread diameter | M10 |
| Share bolts thread length | 50 |
| Shear bolts quality | 8.8 (steel) |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3994 g |
| Dimensions | 155 × 145 × 125 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000038960
Bondioli&Pavesi Profile tube outer SFT H8/S9 diameter in: 59 diameter out: 66x3.5mm L: 3m Bondioliand Pavesi 122113000R06
£444.22 excl.
£533.06 incl.
In stock
Expected to ship on Friday 18 September
BPA000077342

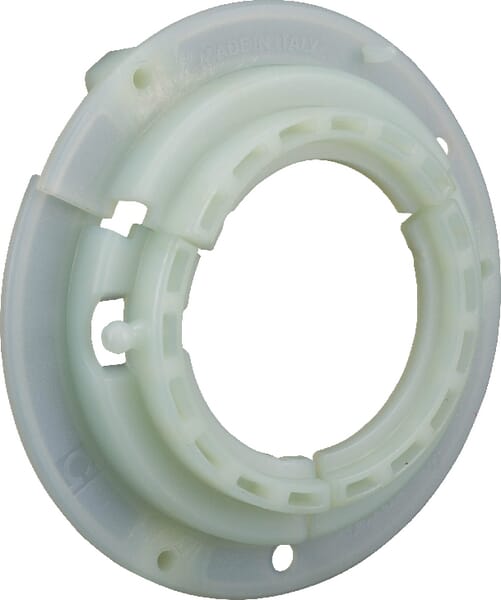

Bondioli&Pavesi Ring inner Global G7-G8 255071001R02
£16.55 excl.
£19.86 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000150646

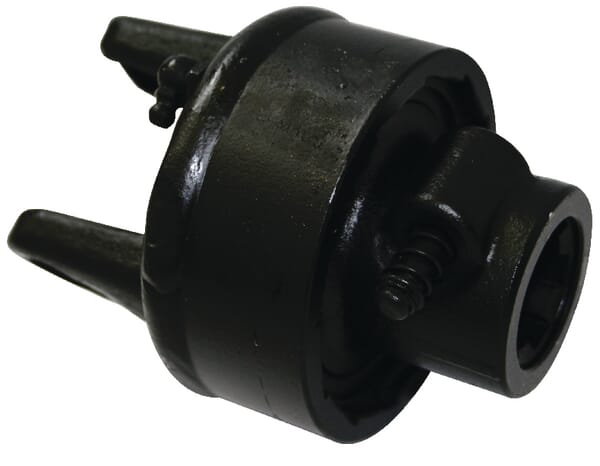

Bondioli&Pavesi Overrunning clutch RA1/S4/104 1-3/8z6 601104701R
