£71.00
excl. VAT
£85.20 incl. VAT
£85.20
incl. VAT
£71.00 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Various (agricultural) applications |
|---|---|

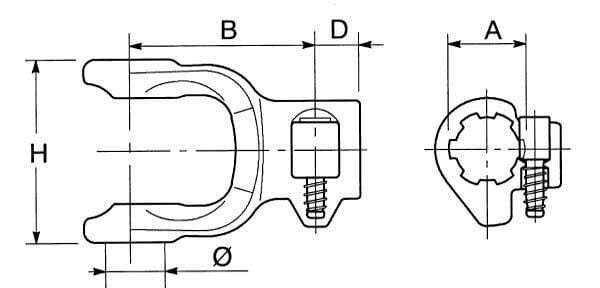

| BLocking bolt to cross bush center distance | 83 mm |
| DLocking bolt to connection end distance | 21 mm |
| HWidth | 79.5 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Locking system | Push pin |

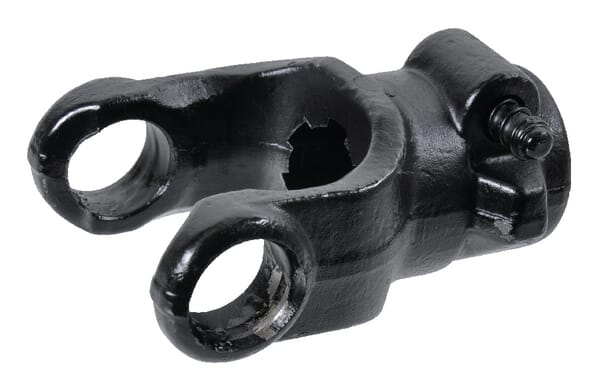

| Long description | Quick-disconnect yokes old series 3 |
| ØCross connection diameter | 27 mm |
| Outside connection diameter | 34.9 mm |
| Shaft size code | 3 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Quick disconnect |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1000 g |
| Dimensions | 105 × 100 × 70 mm |
| Dangerous goods | No |
