£1,005.63
excl. VAT
£1,206.76 incl. VAT
£1,206.76
incl. VAT
£1,005.63 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 14 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | O |
| Flange type norm | European |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 36.47 mm |
| Mounting holes horizontal distance | 71.4 mm |
| Mounting holes vertical distance | 96.1 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 30.2 mm |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined 9T |
| Shaft type code | F |
| Suction port bolts circle diameter | 39.7 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4895 g |
| Dimensions | 210 × 170 × 135 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000345744
Bosch Rexroth Force sensor KMB040103A3015 R917001320
£583.12 excl.
£699.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000345764

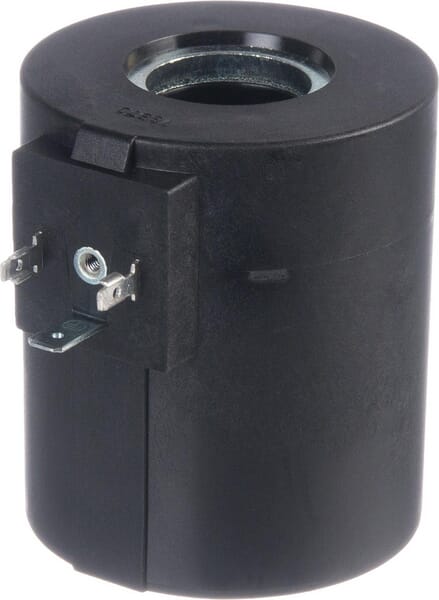

Bosch Rexroth Coil C65 12VDC 44W R933000100
£85.90 excl.
£103.08 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000026496

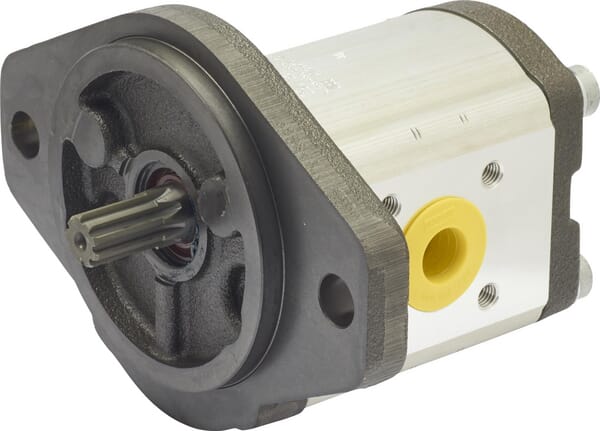

Bosch Rexroth Hydraulic pump AZPF-21-025-R 0510725156
