£636.42
excl. VAT
£763.70 incl. VAT
£763.70
incl. VAT
£636.42 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

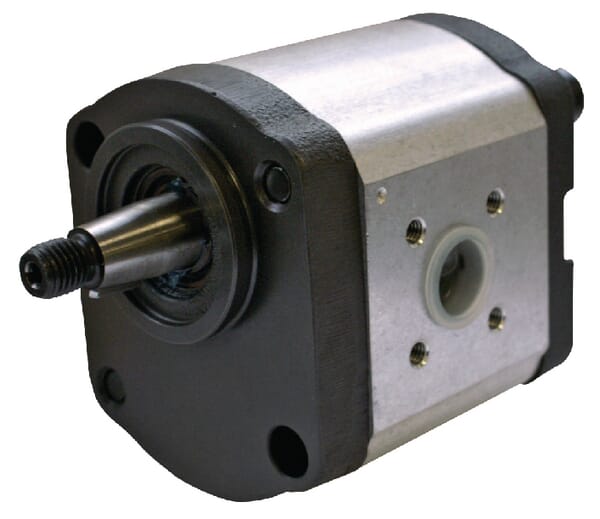

Product details
| Displacement | 16 cm³/rev, 11 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR, 250 BAR |
| Max intermittend working pressure | 280 BAR, 280 BAR |
| Max pressure peak | 290 BAR, 290 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | R918C01954, 15570750003, 155700750003, 01176000, G380940010110, 0510665335, 4345364 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing material | Viton |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Suitable for machine/vehicle brand | Claas, New Holland |
| Unit | Each |
| Weight | 4.9 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5011 g |
| Dimensions | 235 × 100 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000345764

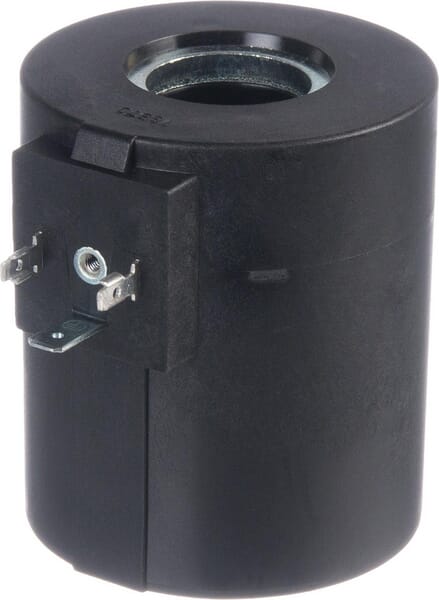

Bosch Rexroth Coil C65 12VDC 44W R933000100
£85.90 excl.
£103.08 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026316
Bosch Rexroth Gear pump AZPF-11-005-L 0510325308
£508.71 excl.
£610.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000050499

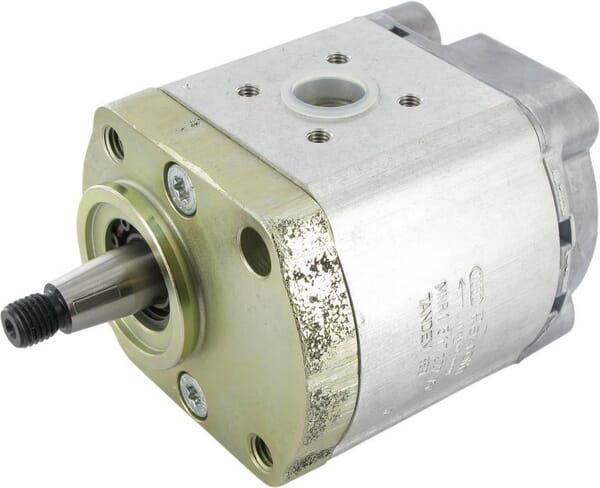

Bosch Rexroth Gear pump AZPF-12-016LCP20MM-S0007 1517222752
