£616.00
excl. VAT
£739.20 incl. VAT
£739.20
incl. VAT
£616.00 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Can be used in adverse conditions, Low space requirement |
| Details | Outer housing on bearings, Compact design |
| Displacement | 8 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 1400 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | 0510410322, AL37753, 0510415313, AL10681, AL16301 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Possible to combine multiple pumps, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Suitable for machine/vehicle brand | Claas, New Holland, John Deere |
| Unit | Each |
Logistics
| EAN | 8719607010610 |
|---|---|
| Unit of measure | EA |
| Weight | 2740 g |
| Dimensions | 130 × 102 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026352

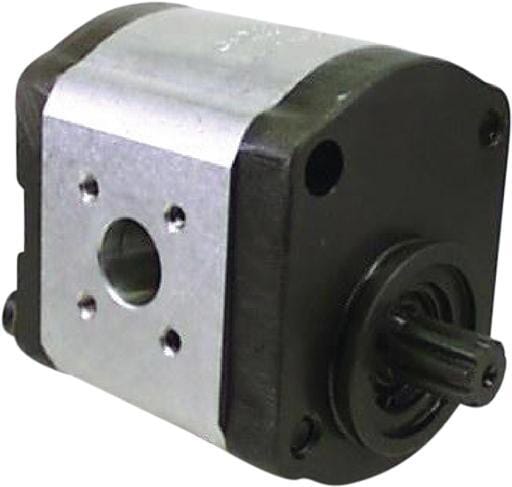

Bosch Rexroth Gear pump AZPF-11-014LFP20KB 0510515338
£724.95 excl.
£869.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026382

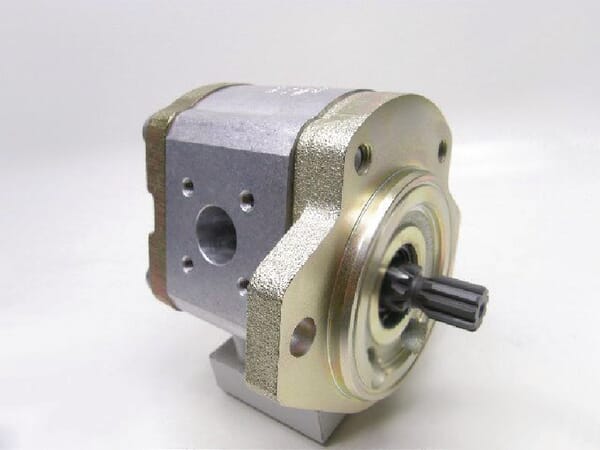

Bosch Rexroth Hydraulic pump AZPF-12-011-L 0510525385
£534.04 excl.
£640.85 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026388
Bosch Rexroth Gear pump AZPFF-11-014/010RPRXXXXMB-S0150 0510565088
£532.71 excl.
£639.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000050710
Bosch Rexroth Seal kit 1527010271
£35.49 excl.
£42.58 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026439
Bosch Rexroth Gear pump AZPF-11-016LNL20KB 0510625358
£810.47 excl.
£972.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026440
Bosch Rexroth Gear pump AZPF-11-019LHO30PB-S0285 0510625362
£371.05 excl.
£445.26 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000340610

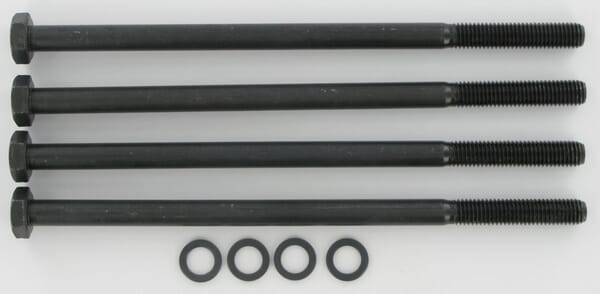

Casappa Tie bolts polaris 20 M10x205 PLP920M10205
