£532.71
excl. VAT
£639.25 incl. VAT
£639.25
incl. VAT
£532.71 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Displacement | 14 cm³/rev, 10 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | R |
| Flange type norm | SAE-A |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR, 250 BAR |
| Max intermittend working pressure | 210 BAR |
| Max pressure peak | 220 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 800 r/min |
| Mounting diameter | 82.55 mm |
| Mounting holes horizontal distance | 106.4 mm |
| Number of mounting holes | 2 |
| Original number equivalent | R918C01070, 3816909M91 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing material | Fluo rubber [FPM] |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 18.62 mm |
| Shaft number of teeth | 11 |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined 11T |
| Shaft type code | P |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
| Weight | 6.3 kg |
Logistics
| EAN | 8716106990634 |
|---|---|
| Unit of measure | EA |
| Weight | 6732 g |
| Dimensions | 266 × 165 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026366
Bosch Rexroth Gear pump AZPF-10-014-R 0510525053
£599.51 excl.
£719.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026507
Bosch Rexroth Gear pump AZPG-22-028LHO30MB 0510725450
£1,370.41 excl.
£1,644.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000050709
Bosch Rexroth Seal kit 1527010014
£47.00 excl.
£56.40 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000327292
Bosch Rexroth Flow control valve 0–76 l/min OE1531173703
£237.09 excl.
£284.51 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000058932
Bosch Rexroth Solenoid coil NG6 24 VDC 1837001227
£153.57 excl.
£184.28 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026384
Bosch Rexroth Gear pump AZPFF-10-014/005RSG2020MB 0510555005
£1,702.83 excl.
£2,043.40 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000109629
Kramp Oil seal 40x58x9mm type:CC DIN 3760 1x 40589CCP001
£2.75 excl.
£3.30 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000076402
ESM Bottom knife, double knife bidux-system®, 301 cm, portal, spacing 84, 37 sections, smooth, with knife head 2658130
£472.82 excl.
£567.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150578
FAG Deep groove ball bearing 55x72x9mm INA/FAG 618112RS
£50.00 excl.
£60.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000204020
Kramp Hexagon head bolt DIN960 M12x1.25x75 steel 8.8 9601212575B
£1.32 excl.
£1.59 incl.
In stock
Expected to ship on Friday 18 September
BPA000199862
Kramp Hexagon head bolt DIN931 M18x120 stainless steel A2 93118120RVS
£6.19 excl.
£7.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000124207
Kramp Oil seal 48x70x12mm type:CC DIN 3760 1x 487012CCP001
£2.96 excl.
£3.55 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000010278

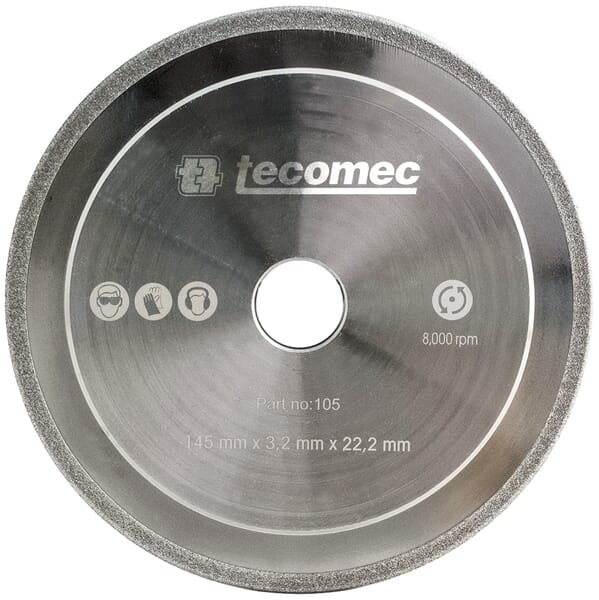

Tecomec Diamond grinding disc 145x22.2x3.2mm for 1/4” to 3/8” chain pitch 01005053
