£357.49
excl. VAT
£428.99 incl. VAT
£428.99
incl. VAT
£357.49 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Can be used in adverse conditions, Low space requirement |
| Details | Outer housing on bearings, Compact design |
| Displacement | 8 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | O |
| Flange type norm | European |
| Housing material | Aluminium |
| Long description | Application:, Mobile applications, Industrial applications, Benefits:, Can be used in adverse conditions, Low space requirement, Details:, Outer housing on bearings, Compact design, Properties:, Possible to combine multiple pumps, Customer-specific design possible |
| Main port size code | 1G08 |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 1400 r/min |
| Mounting diameter | 36.47 mm |
| Mounting holes horizontal distance | 71.4 mm |
| Mounting holes vertical distance | 96.1 mm |
| Number of mounting holes | 4 |
| Original number equivalent | 5130127, 5179732, 0510425309 |
| Port position | Side |
| Pressure port bolts circle diameter | 30.2 mm |
| Pressure port size code | 1G08 |
| Properties | Possible to combine multiple pumps, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 16.65 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | H |
| Suction port bolts circle diameter | 30.2 mm |
| Suitable for machine/vehicle brand | Claas, New Holland |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
439B1215
Kramp Hexagon nut low model DIN439 M12x1.50 steel zinc-plated Class 4 439B1215
£0.26 excl.
£0.31 incl.
127B12B

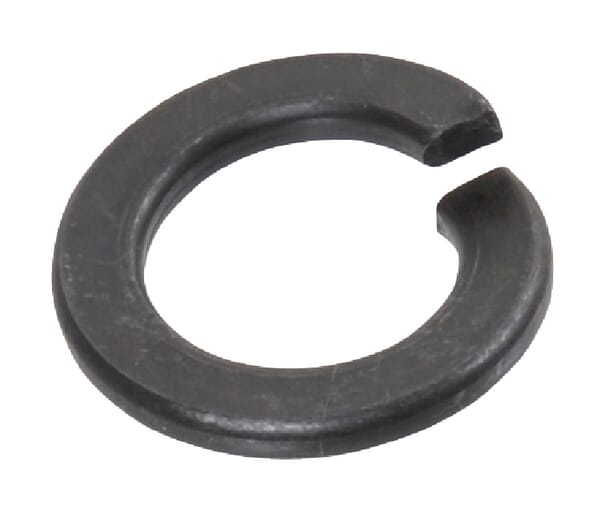

Kramp Spring lock washer M12x21.1x2.5mm, Steel None DIN 127b 127B12B
£0.16 excl.
£0.19 incl.
125B12

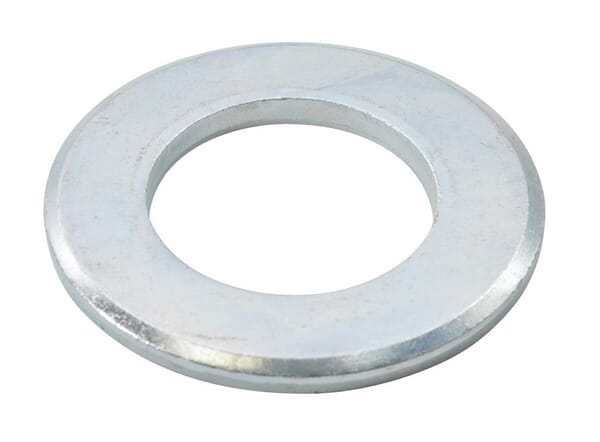

Kramp Washer M12x24x2.5mm, Steel Zinc-plated DIN 125b 125B12
£0.05 excl.
£0.06 incl.
6888351265

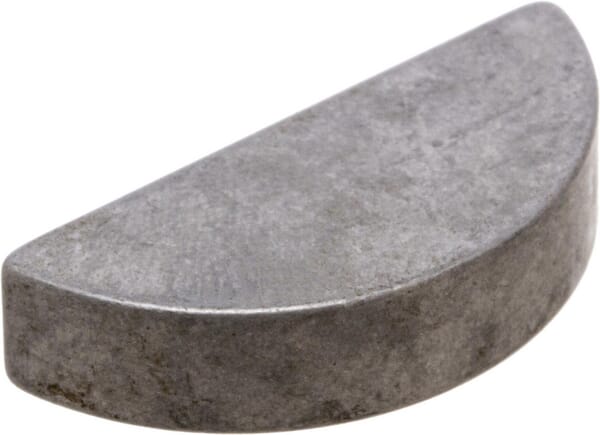

Kramp Woodruff key 3x5x12.65 6888351265
£0.42 excl.
£0.50 incl.
1510283008

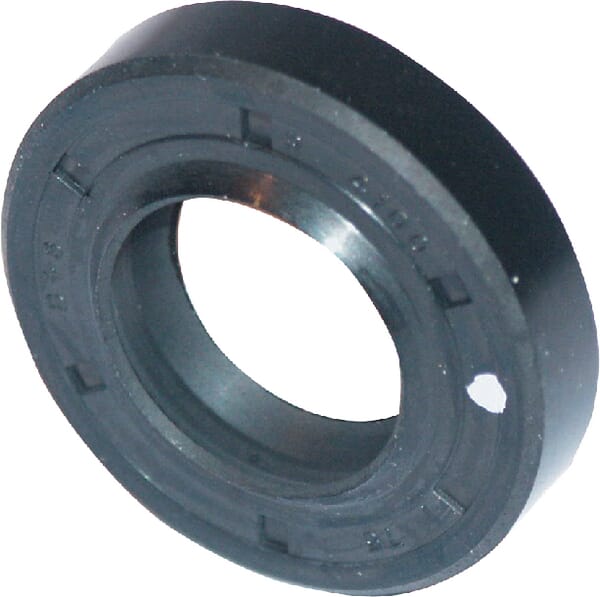

Bosch Rexroth Oil seal 17x30x7mm 1510283008
£20.57 excl.
£24.68 incl.
1517010152
Bosch Rexroth Seal kit without oil seal 1517010152
£64.17 excl.
£77.00 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3300 g |
| Dimensions | 135 × 115 × 82 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026349
Bosch Rexroth Gear pump AZPF-11-011LCP20MB-S0007 0510515323
£577.39 excl.
£692.87 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026625

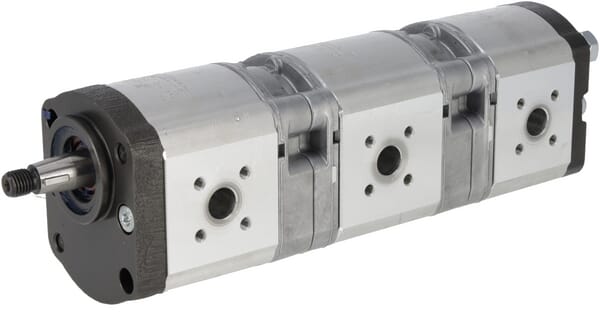

Bosch Rexroth Gearpump AZPSFS-11-014/016/011RCP202020KB-S0033 0517665009
£1,455.05 excl.
£1,746.06 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000026480

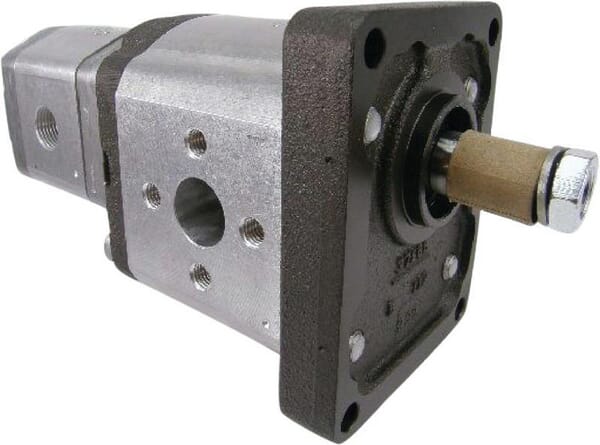

Bosch Rexroth Gear pump AZPFB-11-016-2.0-R 0510666002
£1,141.09 excl.
£1,369.31 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026388
Bosch Rexroth Gear pump AZPFF-11-014/010RPRXXXXMB-S0150 0510565088
£532.71 excl.
£639.25 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026459

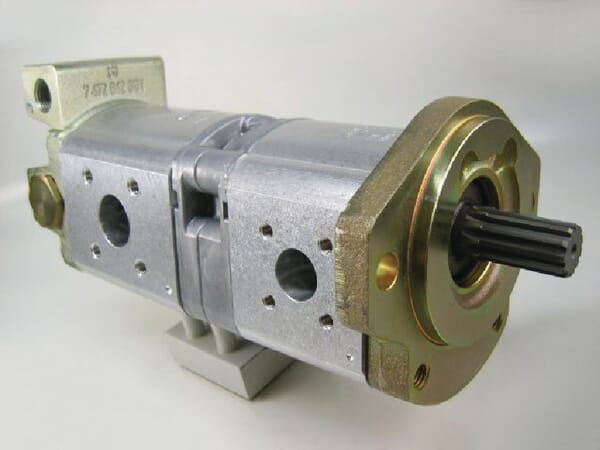

Bosch Rexroth Hydraulic pump AZPFF-22-016-025-R 0510665179
£1,821.45 excl.
£2,185.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026414

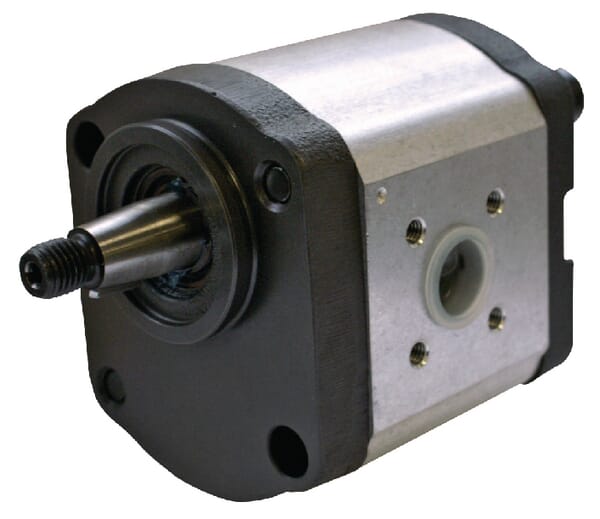

Bosch Rexroth Gear pump AZPF-11-019LCP20PB-S0007 0510615338
£269.94 excl.
£323.93 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000204507
Kramp Countersunk screw DIN963 M5x20 stainless steel A2 963520RVSP025
£0.14 excl.
£0.17 incl.
In stock
Expected to ship on Friday 18 September
BPA000329044
Kramp O-ring 164.47x6.99mm 70 shore OR16447699P001
£2.71 excl.
£3.25 incl.
In stock
Expected to ship on Monday 21 September
BPA000327809

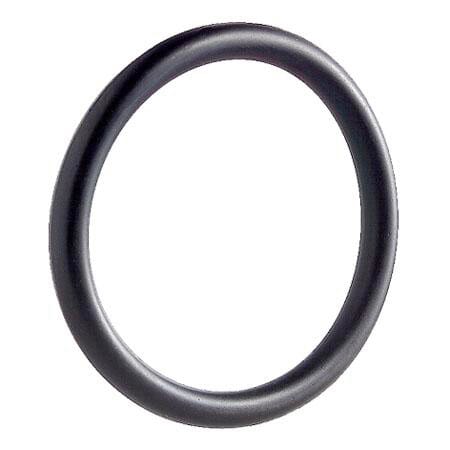

Kramp O-ring 247.02x5.33mm 70 shore OR24702533P001
