£720.01
excl. VAT
£864.01 incl. VAT
£864.01
incl. VAT
£720.01 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Can be used in adverse conditions, Low space requirement |
| Details | Outer housing on bearings, Compact design |
| Displacement | 16 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | O |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 2000 r/min |
| Min rotation speed | 1000 r/min |
| Mounting diameter | 36.47 mm |
| Mounting holes horizontal distance | 71.4 mm |
| Mounting holes vertical distance | 96.1 mm |
| Number of mounting holes | 4 |
| Original number equivalent | 1530459C1, 1967852C1 |
| Port position | Side |
| Pressure port bolts circle diameter | 30.2 mm |
| Properties | Possible to combine multiple pumps, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined 9T |
| Shaft type code | F |
| Suction port bolts circle diameter | 39.7 mm |
| Suitable for machine/vehicle brand | Claas, New Holland |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3610 g |
| Dimensions | 130 × 85 × 115 mm |
| Dangerous goods | No |
You might also like
BPA000050711
Bosch Rexroth Seal kit 1527010277
£24.71 excl.
£29.65 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

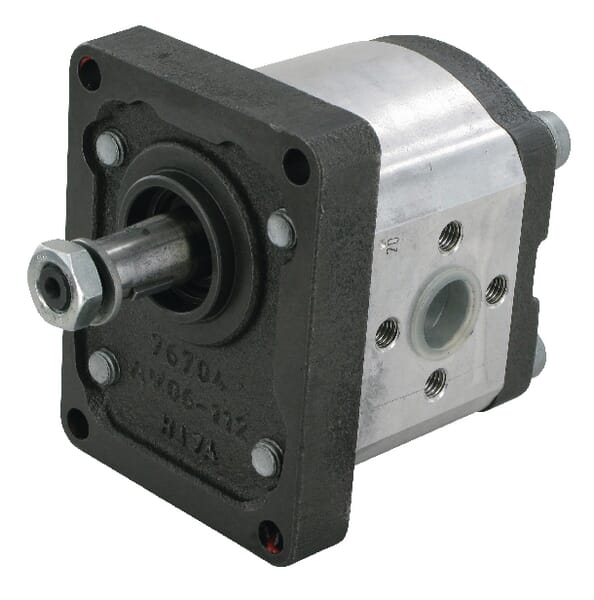

BPA000026490
Bosch Rexroth Gear pump AZPF-10-022RHO30MB 0510725031
£540.94 excl.
£649.13 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

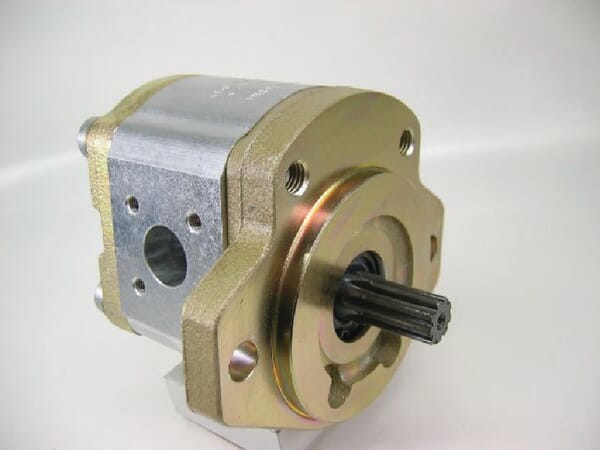

BPA000026332
Bosch Rexroth Hydraulic pump AZPF-12-008-L 0510425314
£465.78 excl.
£558.94 incl.
Backorder available
Usually ships within 3–8 weeks

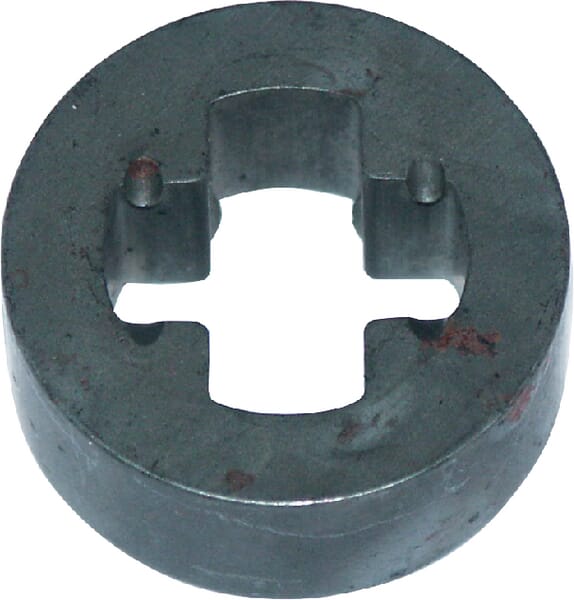

BPA000050469
