£920.69
excl. VAT
£1,104.83 incl. VAT
£1,104.83
incl. VAT
£920.69 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 22 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Max. continous working pressure | 180 BAR |
| Max intermittend working pressure | 210 BAR |
| Max pressure peak | 230 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined 9T |
| Shaft type code | F |
| Suction port bolts circle diameter | 55 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3664 g |
| Dimensions | 150 × 85 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping

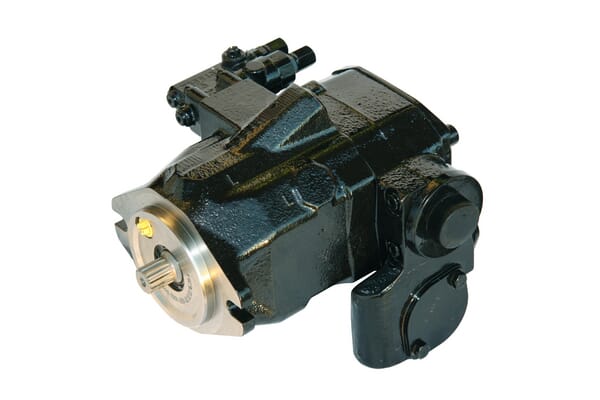

BPA000210439
Bosch Rexroth Piston pump CNH 84471387 A10CO45DFR152R2
£3,106.46 excl.
£3,727.75 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000219437
Bosch Rexroth Axial piston motor CNH 84168176 AA2FM10761W
£3,902.30 excl.
£4,682.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026625

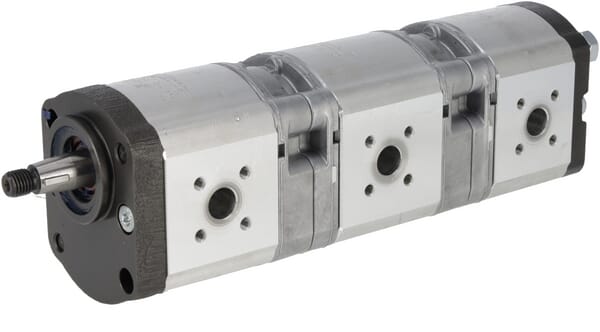

Bosch Rexroth Gearpump AZPSFS-11-014/016/011RCP202020KB-S0033 0517665009
£1,455.05 excl.
£1,746.06 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000327283
Bosch Rexroth Housing 1/2"+cartridge NC w/o coil OD1505173A0300
£212.80 excl.
£255.36 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

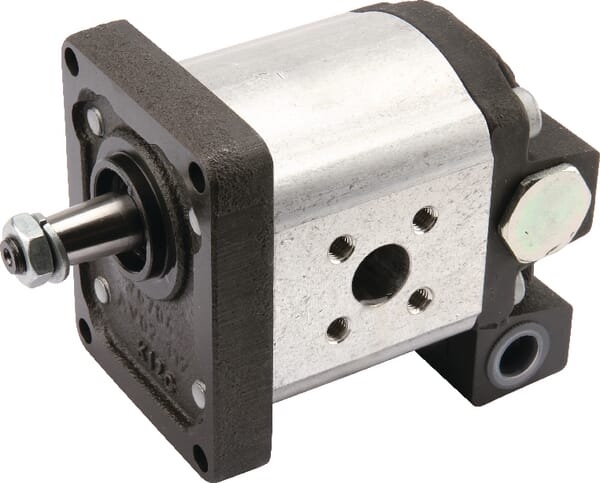

BPA000026503
Bosch Rexroth Gear pump AZPF-10-022LHO20KEXXX22-S0002 0510725384
£479.73 excl.
£575.67 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000210462

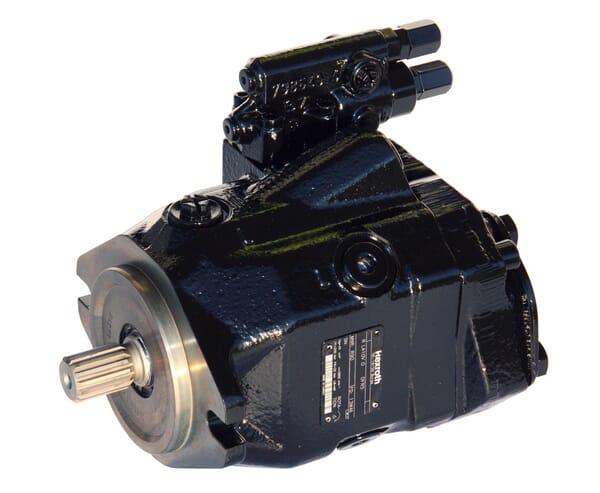

Bosch Rexroth Piston Pump AGCO G716940010012 A10VO45DFR552R1
