£1,455.05
excl. VAT
£1,746.06 incl. VAT
£1,746.06
incl. VAT
£1,455.05 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Displacement | 14 cm³/rev, 16 cm³/rev, 11 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | B5 |
| Flange type norm | German |
| Max. continous working pressure | 256 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pump group code | 1 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7658 g |
| Dimensions | 340 × 110 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping

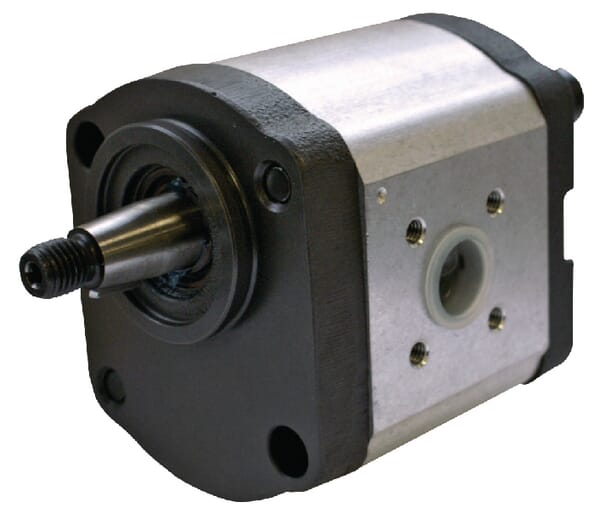

BPA000026410
Bosch Rexroth Gear pump AZPF-11-016LCP20MB-S0007 0510615326
£619.22 excl.
£743.06 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026432
Bosch Rexroth Gear pump AZPF-11-016LFB20MB 0510625317
£669.29 excl.
£803.15 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000026347
Bosch Rexroth Gear pump AZPF-10-011LCP20MSXXX12-S0007 0510515314
£933.70 excl.
£1,120.44 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

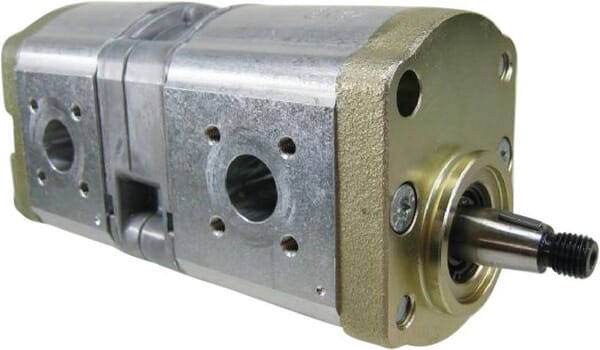

BPA000026461
