£2,469.29
excl. VAT
£2,963.15 incl. VAT
£2,963.15
incl. VAT
£2,469.29 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

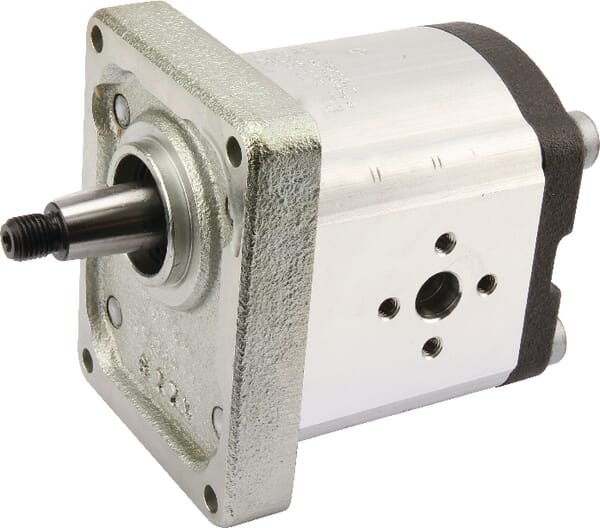

Product details
| Displacement | 16 cm³/rev, 16 cm³/rev, 8 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | G |
| Flange type norm | German |
| Max. continous working pressure | 250 BAR, 250 BAR, 250 BAR |
| Max intermittend working pressure | 280 BAR, 280 BAR, 280 BAR |
| Max pressure peak | 300 BAR, 300 BAR, 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 700 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 20 mm |
| Shaft thread diameter | M14 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | S |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6895 g |
| Dimensions | 410 × 80 × 80 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026367
Bosch Rexroth Gear pump AZPF-11-011RFO30PB 0510525057
£615.79 excl.
£738.95 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026313

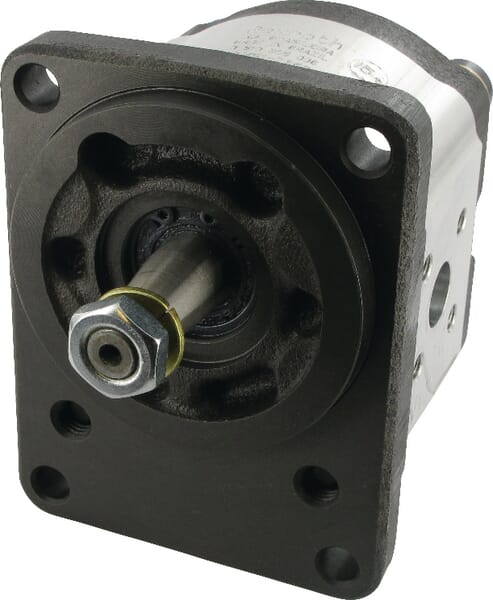

Bosch Rexroth Gear pump AZPF-11-005RCB20MB 0510325006
