£903.34
excl. VAT
£1,084.01 incl. VAT
£1,084.01
incl. VAT
£903.34 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 36 cm³/rev |
|---|---|
| Flange and back cover material | Cast iron |
| Flange code | B2 |
| Flange type norm | SAE-B2 |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 1200 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pump group code | 1 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined 9T |
| Shaft type code | F |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4972 g |
| Dimensions | 220 × 165 × 145 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000026326
Bosch Rexroth Gear pump AZPF-11-008RFB20MB 0510425010
£607.94 excl.
£729.53 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026485

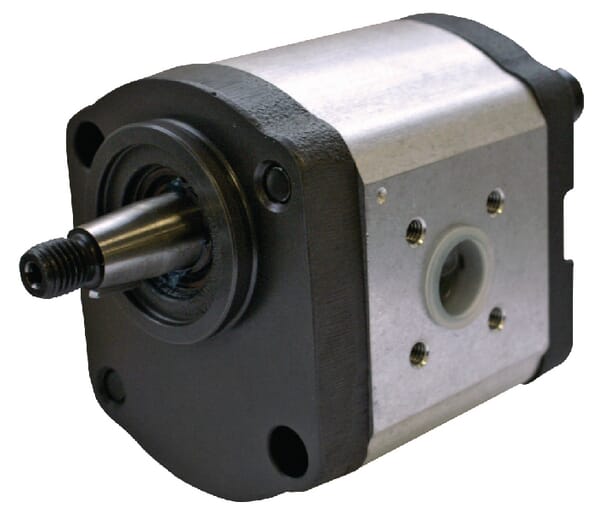

Bosch Rexroth Gear pump AZPF-12-022LCP20KB-S0007 0510715306
£526.84 excl.
£632.21 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026384
Bosch Rexroth Gear pump AZPFF-10-014/005RSG2020MB 0510555005
£1,702.83 excl.
£2,043.40 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026463

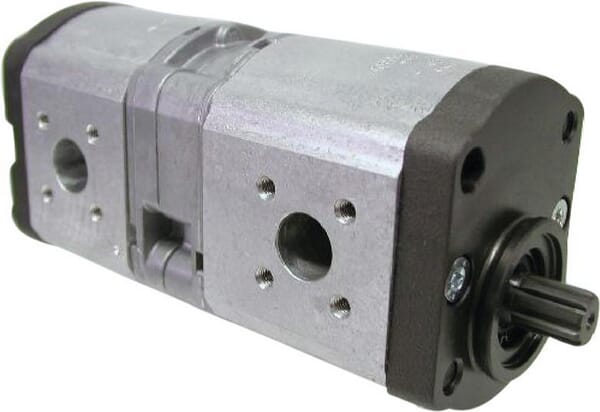

Bosch Rexroth Gear pump AZPFF-10-019/011LFP2020MB 0510665349
£1,447.42 excl.
£1,736.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000210452

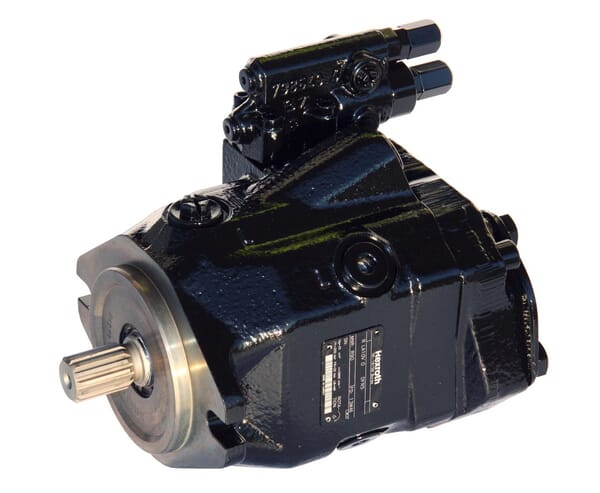

Bosch Rexroth Piston pump AL166639 suitable for John Deere A10VNO45DFR152R
