£619.22
excl. VAT
£743.06 incl. VAT
£743.06
incl. VAT
£619.22 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Can be used in adverse conditions, Low space requirement |
| Details | Outer housing on bearings, Compact design |
| Displacement | 16 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | P |
| Flange type norm | German |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 2000 r/min |
| Min rotation speed | 1000 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Original number equivalent | 01175656, 1262641, 1261641, 1262643, 2308663, 2382914, 4309354, 4345302 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Possible to combine multiple pumps, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | C |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3200 g |
| Dimensions | 185 × 110 × 110 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000345834
Bosch Rexroth AZPW–11 – 019LCP20MB-S0007 R983072794
£139.90 excl.
£167.88 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000026493
Bosch Rexroth Gear pump AZPN-21-032RDCXXMB 0510725089
£541.97 excl.
£650.36 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000396156
Bosch Rexroth Control check valve 7:1-3/8 VS0DEFCB0553
£212.26 excl.
£254.71 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000210441
Bosch Rexroth Piston pump CNH 873327250 A10CO45DFR152R8
£2,937.92 excl.
£3,525.50 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000026411

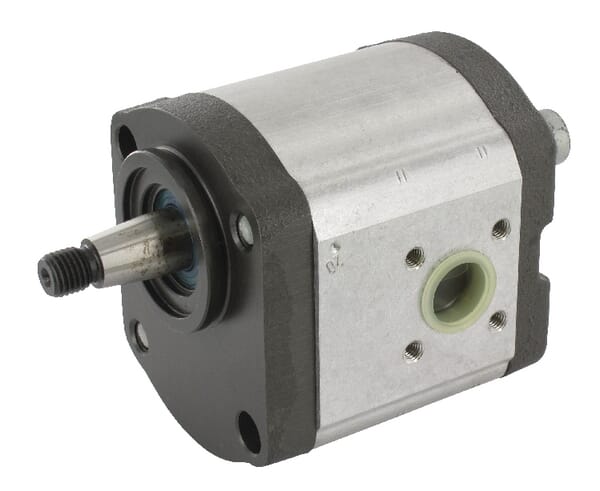

Bosch Rexroth Gear pump AZPF-10-016LCP20MB-S0288 0510615329
£886.99 excl.
£1,064.39 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000050489

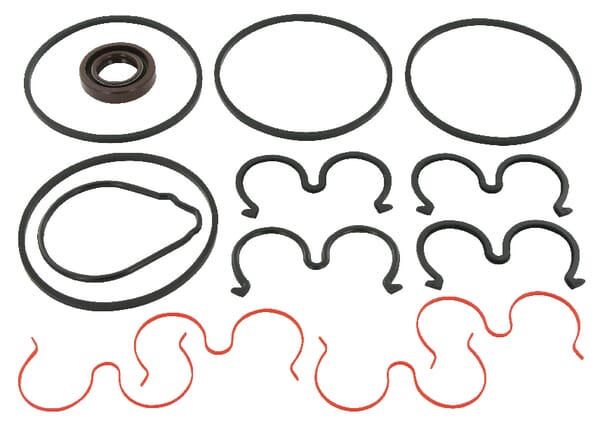

Bosch Rexroth Seal kit Bosch 1517010207
