£329.08
excl. VAT
£394.90 incl. VAT
£394.90
incl. VAT
£329.08 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Adjustment type | Hand wheel |
|---|---|
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection thread diameter | M22 |
| Connection thread pitch | 1.50 mm |
| Long description | The MTKA flow regulator divides the inlet flow into a constant flow (fixed or manually adjustable) and a residual flow. The residual flow can be supplied under pressure and can be directed to a second downstream device. The pressure that builds up in the supply line is always that of the most heavily loaded downstream device. |
| Max. flow rate | 70 l/min |
| Max. regulated flow | 50 l/min |
| Max working pressure | 315 BAR |
| Mounting possibility | Suitable for fitting between pipes |
| Product details | These flow control valves are fitted as standard with an adjustment ring and lock nut, B-connection may not be pressurised, Maximum pressure : 315 bar, Steel housing, To use the regulator as a two-way flow regulator, the residual flow outlet (B) must be closed. For this application, the special version …/20 must be ordered. |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1336 g |

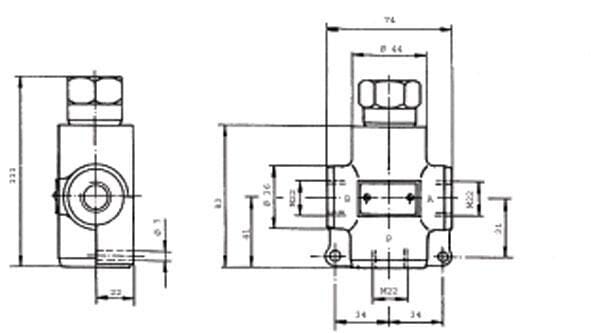

| Dimensions | 155 × 105 × 45 mm |
| Dangerous goods | No |
