£717.09
excl. VAT
£860.51 incl. VAT
£860.51
incl. VAT
£717.09 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Adjustment type | Hand wheel |
|---|---|
| Housing material | Steel |
| Long description | The MTQA flow regulator divides the inlet flow P into a constant flow A (fixed or manually adjustable) and a residual flow R. The total supply flow is protected by an adjustable pressure limiter. The residual flow must be directed to the tank without pressure (port R). |
| Max. flow rate | 65 l/min |
| Max working pressure | 315 BAR |
| Max working temperature | 80 °C |
| Min. working pressure | 50 BAR |
| Min working temperature | -20 °C |
| Product details | Load- and viscosity-independent speed regulation, Regulated and constant flow rate at port A, The residual oil flow must be returned to the tank without pressure (R), Adjustment knob with scale, Maximum pressure : 315 bar, Integrated, adjustable pressure relief valve, Steel housing |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1598 g |
| Dimensions | 155 × 135 × 65 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000316763
Bucher Flow divider 25-50l/min MTDA08050
£527.97 excl.
£633.56 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000316766
Bucher Flow divider 50-160l/min MTDA16160M
£1,225.12 excl.
£1,470.14 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000316759
Bucher Flow divider 2-4l/min MTDA08004
£534.09 excl.
£640.91 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000316764

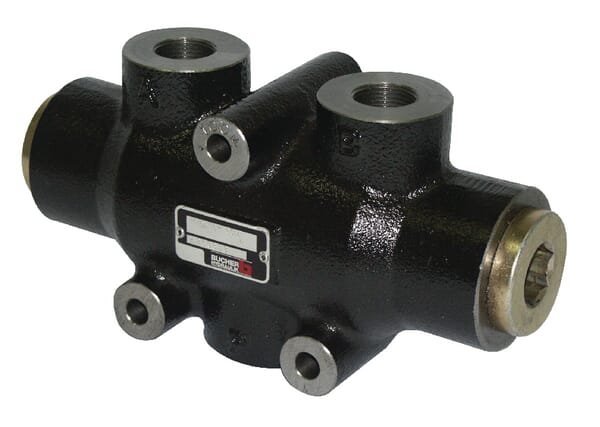

Bucher Flow divider 37-75l/min MTDA08075
