£4.69
excl. VAT
£5.63 incl. VAT
£5.63
incl. VAT
£4.69 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Cone angle side 1 | 60 ° |
|---|---|
| Connection 1, thread diameter | 3/8 Inch |
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M14 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Material | Steel |
| Max working pressure | 380 BAR |
| Product details | Applied in combination with nipples with counter-cone 60°., Material: Steel, Seal: by means of 60° cone., Standard: BSP in accordance with BS 2779: 1986 Class B, metric in accordance with BS2643 Part 2: 1981., Surface treatment: Zinc-plated |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 55 g |
| Dimensions | 40 × 23 × 23 mm |
| Dangerous goods | No |
You might also like
BPA000269874
Burnett & Hillman Compact elbow F/F 7/16JIC 90° FF9007JK
£9.44 excl.
£11.33 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000269910

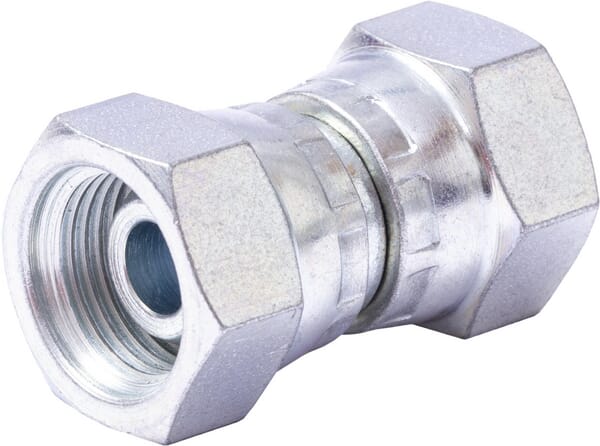

Burnett & Hillman Adaptor F/F 3/4 BSP FFB12
£6.54 excl.
£7.85 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393261
Burnett & Hillman Bulkhead M/M 3/8 BSP VNBS06
£3.14 excl.
£3.77 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000251590
Burnett & Hillman Double cone BSP 1/2" DC08B
£12.91 excl.
£15.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349274
Burnett & Hillman Elbow M/M 3/4 JIC x 3/4 UNF RIU4512
£12.93 excl.
£15.52 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000395980
Burnett & Hillman Adaptor M/F 1/4 BSP L1=20 VRB0430
£2.68 excl.
£3.22 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000351106
gopart Deep groove ball bearing 35x72x36.5mm SA207GP
£7.66 excl.
£9.19 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000400151
Walterscheid Wide angle PTO shaft WWZ 2580 L: 1210mm, WWZ25801210
£2,013.12 excl.
£2,415.74 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000197131
Kramp Hexagon socket head cap screw DIN912 M6x40 steel zinc-plated 8.8 912640
£0.18 excl.
£0.22 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000272032
Kramp Blade L: 432mm, 7 star hole: suitable for John Deere by FGP406506
£13.94 excl.
£16.73 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000308576

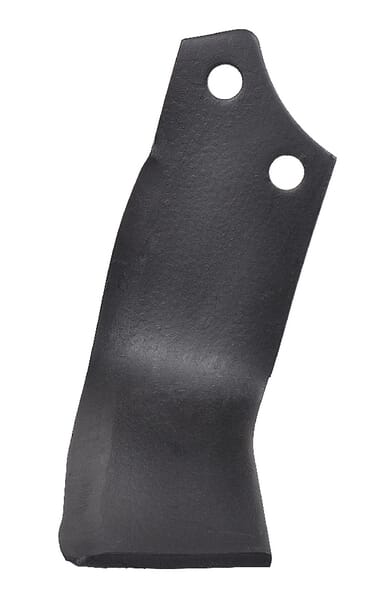

Maschio Rotovator blade RH 195x135x80mm 7mm thick suitable for M29100407R
