£5.64
excl. VAT
£6.77 incl. VAT
£6.77
incl. VAT
£5.64 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection 1, thread diameter | 3/8 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 13/16 Inch |
| Connection 2, thread type | ORFS |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 380 BAR |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request, Male thread BSP with cone 60°, Female thread gland ORFS |
| Pros | High tightening torque, Reusable |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 88 g |
| Dimensions | 51 × 26 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000374386

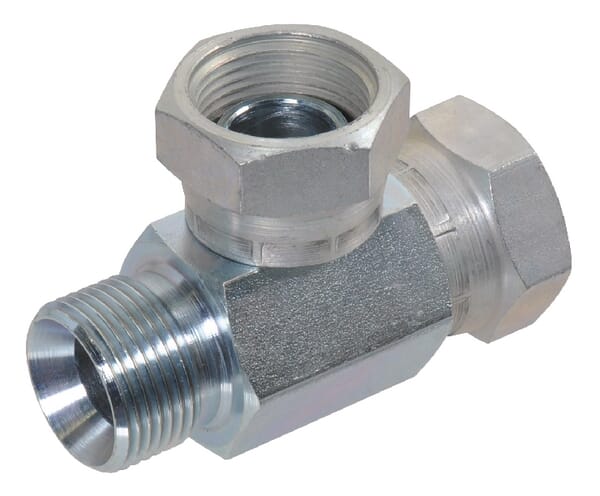

Burnett & Hillman L-stud F/M/F 1/2 BSP TFFM08
£14.44 excl.
£17.33 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000349269

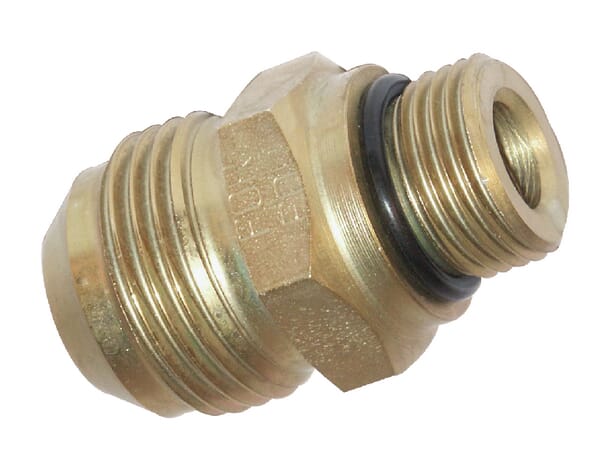

Burnett & Hillman Male stud 1-5/16JIC x1-5/16UNF RIU2121
£9.05 excl.
£10.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396049
Burnett & Hillman Adaptor M/F 1/2 BSP M 22 VRBM0822
£11.35 excl.
£13.62 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000349260
Burnett & Hillman Male stud 3/4 JIC x1-1/16 UNF RIU1217
£6.61 excl.
£7.93 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393192
Burnett & Hillman Adaptor M/F 1/4 BSP x M16 VNBMW0416
£4.82 excl.
£5.78 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393369
Burnett & Hillman Adaptor M 7/16 x 3/4 JIC VNJ0712
£5.07 excl.
£6.08 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000197006

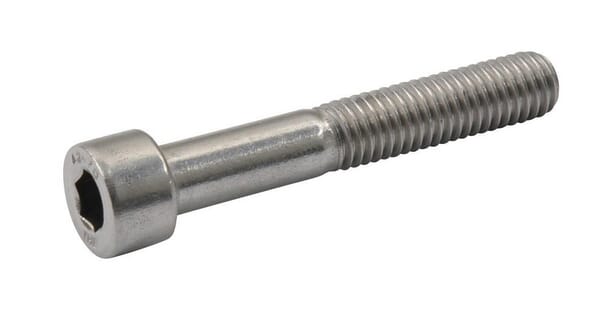

Kramp Hexagon socket head cap screw DIN912 M5x25 stainless steel A2 912525RVSP025
£0.20 excl.
£0.24 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000067557
FAG Spherical roller bearing 35x80x21mm INA/FAG 21307E1XLTVPBC3
£130.20 excl.
£156.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000195599
Kramp Hexagon socket head cap screw DIN912 M10x60 stainless steel A2 9121060RVSP025
£0.70 excl.
£0.84 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000367242

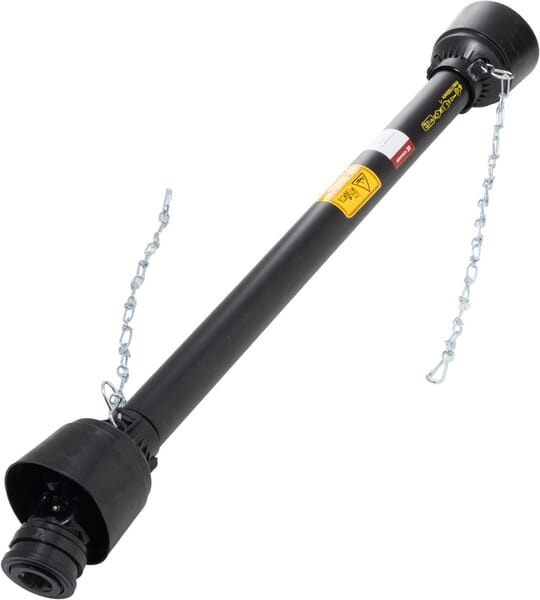

Kramp PTO drive shaft T10 L=1010mm T10101SC12C12KR
£118.21 excl.
£141.85 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000300680

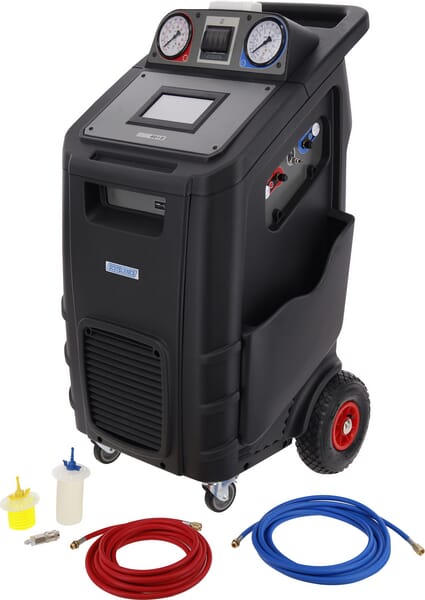

Kramp Air conditioning service station ECK4012 (to be used with refrigerant kits) KL093960
