£5.54
excl. VAT
£6.65 incl. VAT
£6.65
incl. VAT
£5.54 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection 1, thread diameter | 3/8 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 9/16 Inch |
| Connection 2, thread type | ORFS |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 380 BAR |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request, Male thread BSP with cone 60°, Female thread gland ORFS |
| Pros | High tightening torque, Reusable |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 87 g |
| Dimensions | 40 × 22 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000295875

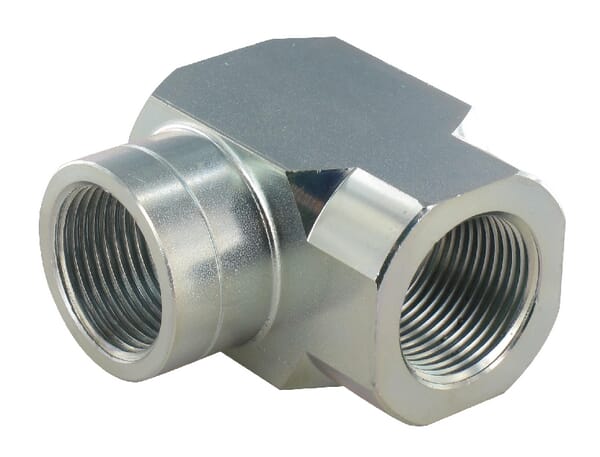

Burnett & Hillman Elbow Coupling F 1 BSP KBB9016
£38.82 excl.
£46.58 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000316208
Burnett & Hillman Swept elbow M/M 1/4 BSP MM9004B
£6.92 excl.
£8.30 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000393430

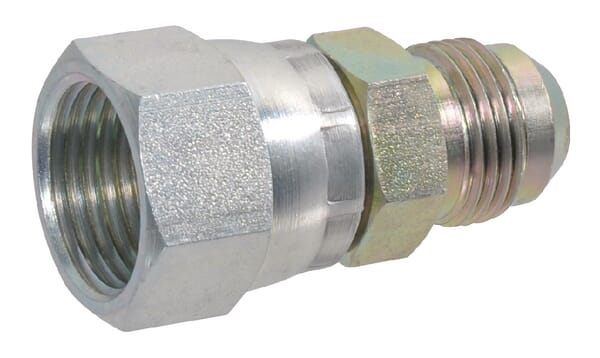

Burnett & Hillman Adaptor M/F 7/8 x 3/4 JIC VNJW1412
£6.23 excl.
£7.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000269859

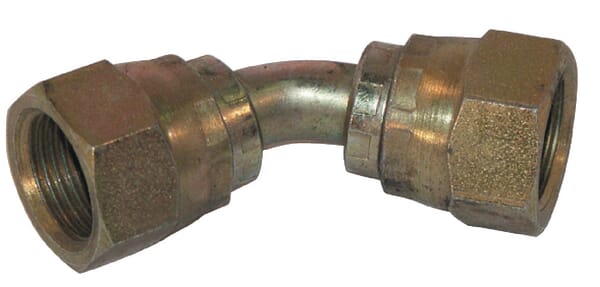

Burnett & Hillman Swept elbow F/F 3/8BSP 45° FF4506B
£8.13 excl.
£9.76 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000338504

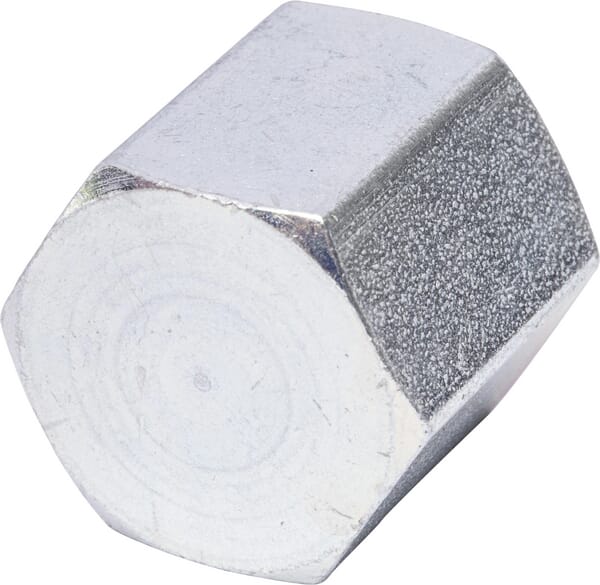

Burnett & Hillman Cap 1" BSP PF16C
£11.40 excl.
£13.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000316195

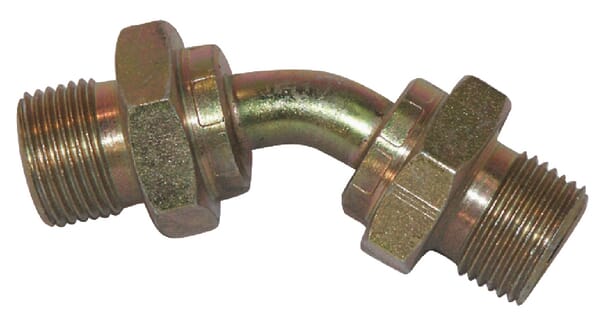

Burnett & Hillman Swept elbow M/M 3/8 BSP MM4506B
